Product Overview

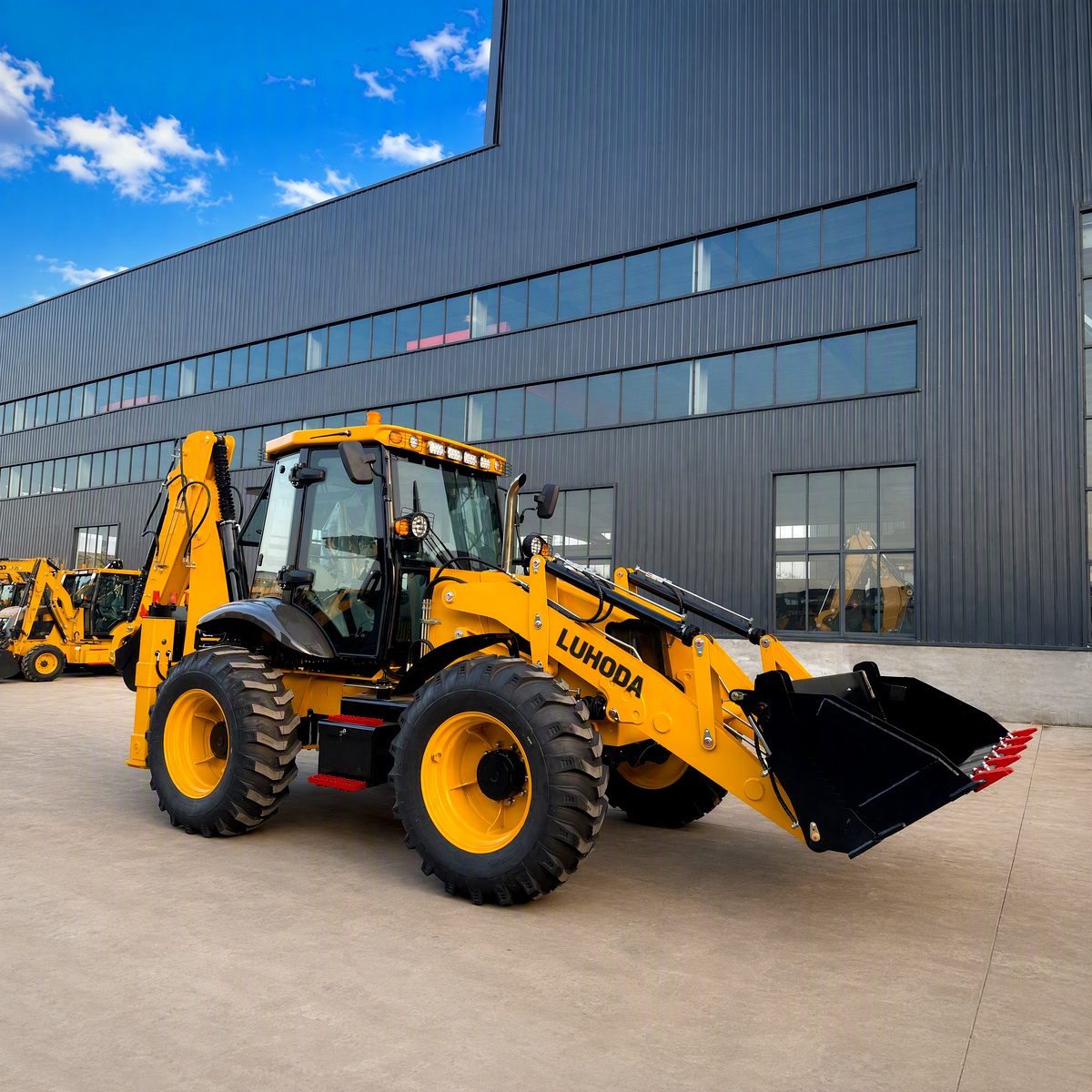

The LHD-388H is a backhoe loader from Shandong Luhongda Machinery Co., Ltd., built around an 85 kW Yuchai YCD4J22T-115 diesel. At the front it carries a 1.2 m³ loader bucket rated for 2500 kg, and at the rear a 0.3 m³ digging bucket.

The machine weighs 9300 kg with a 6400 mm overall length and a 2250 mm wheelbase. Digging reaches 3820 mm deep and 5470 mm high, with 5100 kgf of digging force.

A four-speed forward and reverse transmission takes the machine to 32 km/h, while a 63 mL/r pump at 20 MPa feeds the loader, backhoe and hydraulic side shift.

Key Features

85 kW Yuchai Diesel with 4.8 L Displacement
The YCD4J22T-115 is a water-cooled four-cylinder unit rated at 85 kW at 2600 r/min. Yuchai’s service network across Asia, Africa and South America keeps parts and technicians within reach, which matters for machines working away from major cities.

1.2 m³ Loader Bucket Rated for 2500 kg
The front end lifts 2500 kg with a 2380 mm bucket, dumping to 3050 mm at a 41° dumping angle with 700 mm of dumping distance — enough to load a standard tipper without repositioning.

3820 mm Digging Depth and 5100 kgf Digging Force
The backhoe reaches 3820 mm deep, 5345 mm radius and 5470 mm high, with 1220 kg lifting force at full radius. That covers trenching for drainage, cabling and water lines plus general excavation on the same machine.

Hydraulic Side Shift and Hammer Line
The backhoe slides hydraulically so the operator can work tight to a wall or kerb, and the hammer line is pre-plumbed so a breaker can be added without re-piping the machine.

4 Forward / 4 Reverse to 32 km/h
A 280 torque converter and mechanically operated hydraulic synchronised shift gearbox give four speeds each way, with 32 km/h road speed for moving between sites under its own power.

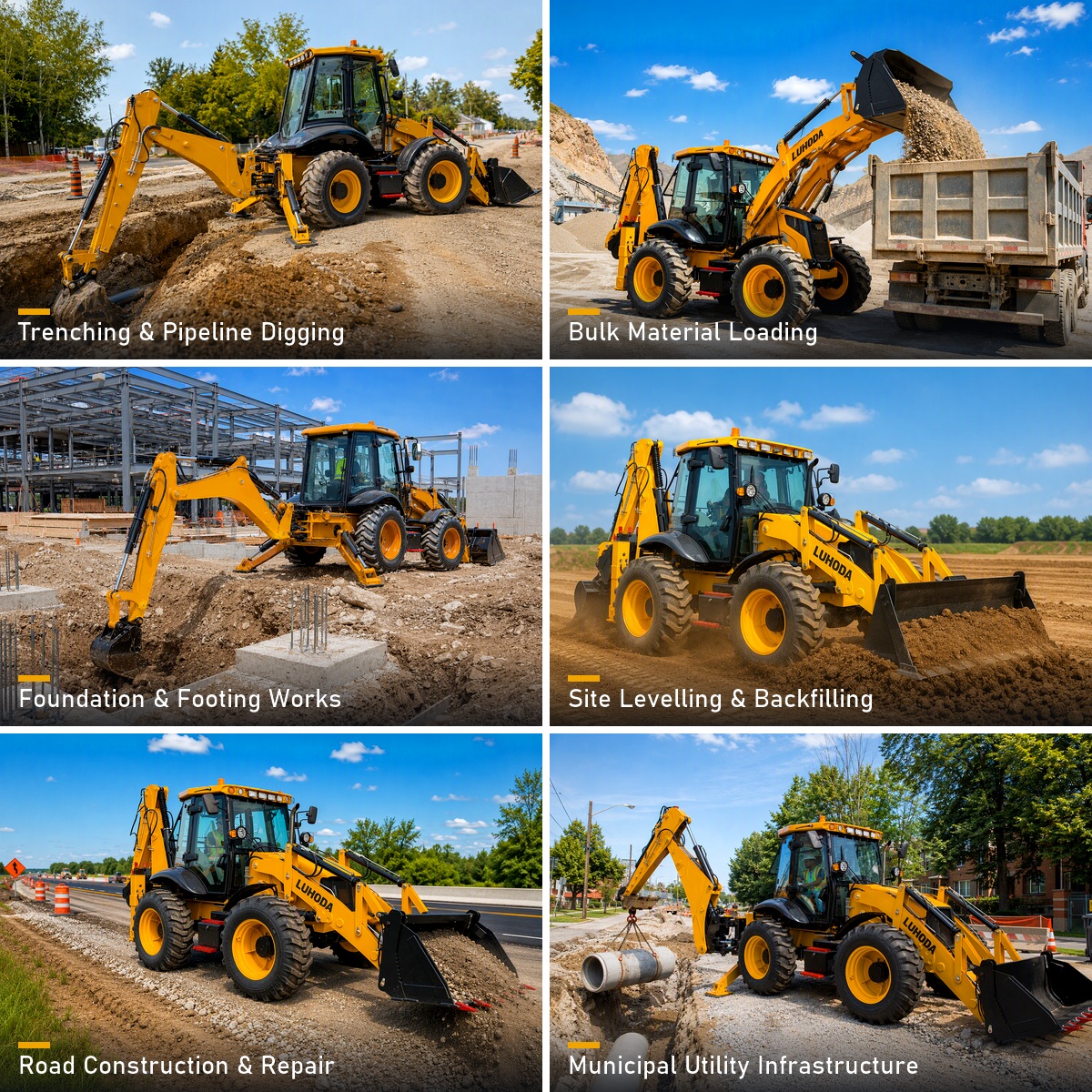

Applications

Excavation and trenching — drainage, water, power and telecom trenches, footing excavation and general digging with the 0.3 m³ backhoe bucket.

Material handling — loading sand, gravel, aggregate and spoil with the 1.2 m³ front bucket at 2500 kg rated load.

Utility construction — water, sewer, gas and electrical works where one machine has to dig, lift and backfill.

Road maintenance — shoulder repair, verge work, culvert and ditch cleaning, and loading patch material.

Site preparation and landscaping — stripping topsoil, grading, backfilling and moving spoil around confined sites.

Rental fleets — a single carrier covering loader and excavator work, which is why rental companies favour the backhoe loader format.

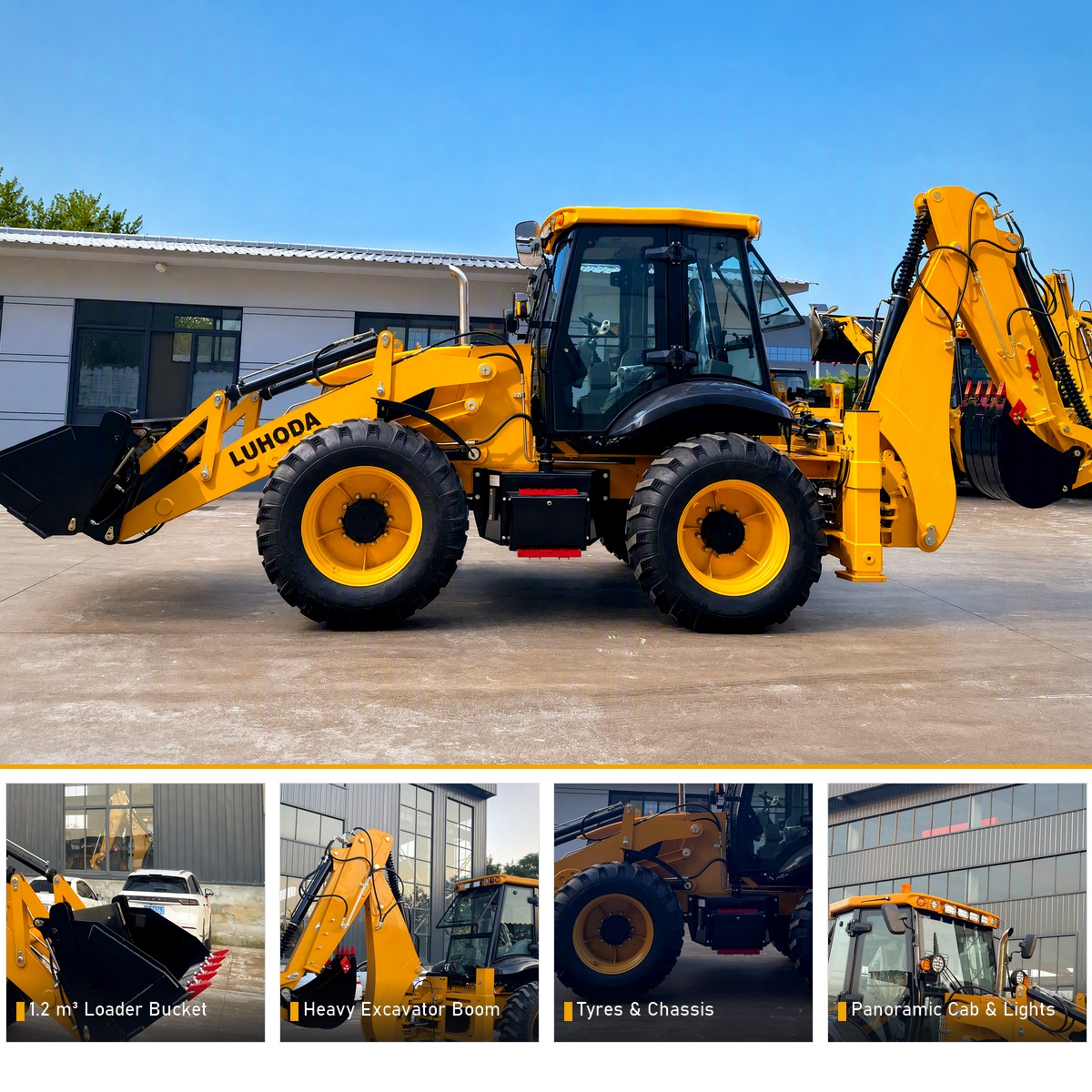

Product Details

Front loader end. A 1.2 m³ bucket 2380 mm wide, rated 2500 kg, with 3050 mm dumping height at 41° and 700 mm dumping distance. Overall width over the tyres is 2450 mm.

Backhoe end. A 0.3 m³ digging bucket on a side-shift frame. Maximum digging depth 3820 mm, digging radius 5345 mm, digging height 5470 mm, digging force 5100 kgf.

Driveline. Yuchai YCD4J22T-115, 4.8 L, water cooled, 85 kW at 2600 r/min. Torque converter model 280 with pressurised oil circulation cooling, four-speed synchronised gearbox, 16.9-28 tyres on four-wheel drum braked axles.

Hydraulics and cab. 63 mL/r working pump at 20 MPa, BZZ5-250 steering gear, 125 L hydraulic oil tank and 125 L fuel tank. High-strength cab with mechanical-control air conditioning, high-definition reversing camera and a reserved hammer line.

Why Choose Luhongda

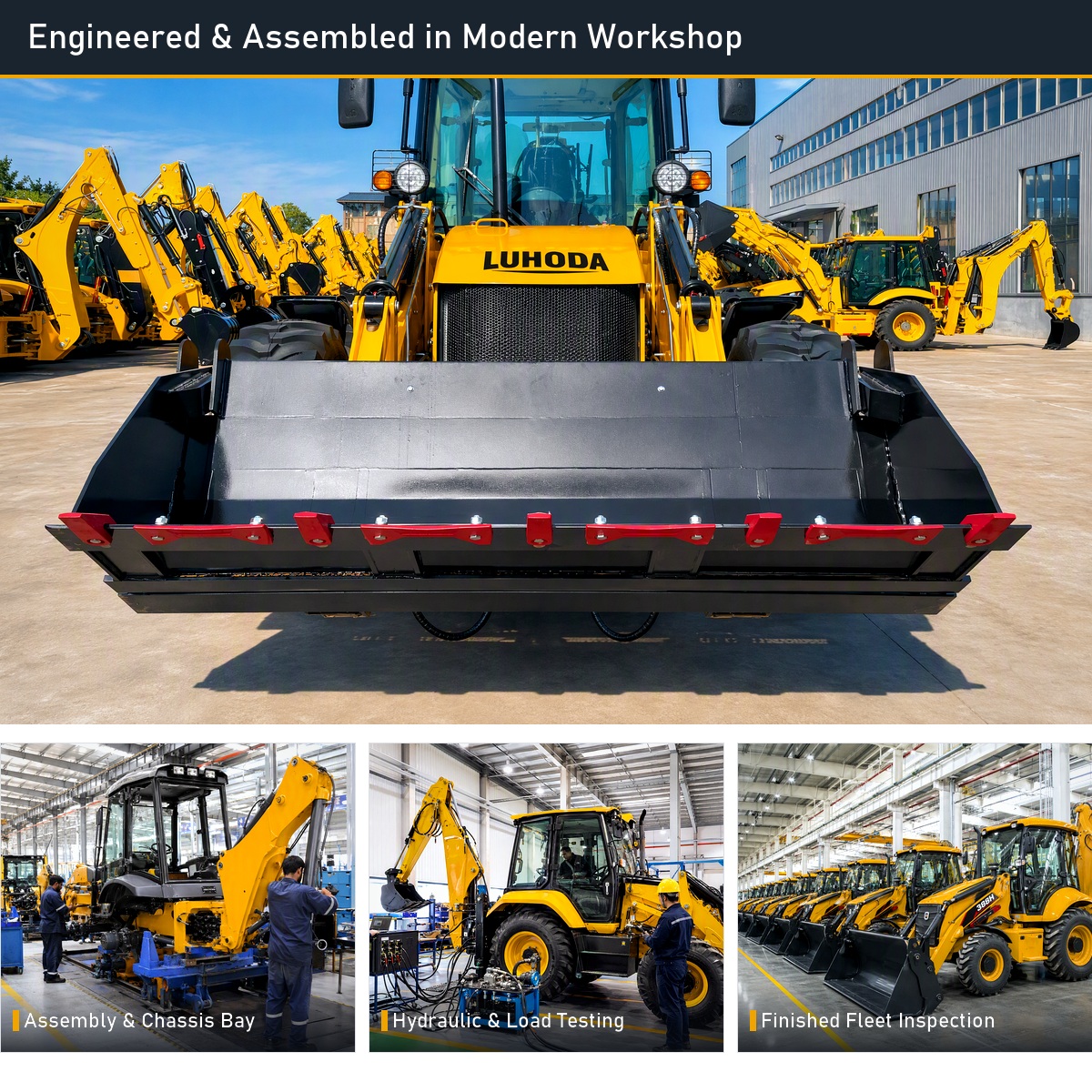

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators, so buyers deal with the manufacturer rather than a trading intermediary.

For contractors, rental fleets and dealers sourcing backhoe loaders, that means configuration and OEM requirements can be discussed at quotation stage, with spare parts support for the loader, backhoe and driveline.

Buyer Questions

What is the LHD-388H used for?
It is a backhoe loader that digs and loads with one machine — trenching and excavation at the rear with a 0.3 m³ bucket, and material handling at the front with a 1.2 m³ bucket rated 2500 kg.

What are the main specifications?
85 kW Yuchai YCD4J22T-115 diesel, 9300 kg operating weight, 1.2 m³ loader bucket, 0.3 m³ digging bucket, 3820 mm maximum digging depth, 5345 mm digging radius, 5100 kgf digging force, 4 forward / 4 reverse to 32 km/h, 16.9-28 tyres. The full list is in the table above.

Can a hydraulic hammer be fitted?
Yes. The hammer line is pre-plumbed as standard, and the machine accepts a breaker with 68–70 mm rod diameter, 11–14 MPa working pressure and 25–45 L/min flow.

Can the machine be supplied with a customized configuration?
Yes. Configuration and OEM requirements can be discussed at quotation stage. Send your working conditions and target quantity so the factory can confirm a suitable specification.

How do I get a quotation and spare parts support?
Share your target quantity, destination port and working conditions, and the sales team will confirm pricing and shipment. Spare parts support is also available — tell us which parts you need.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-388H backhoe loader pricing, shipment and spare parts. Our sales team will confirm a suitable configuration and terms.
