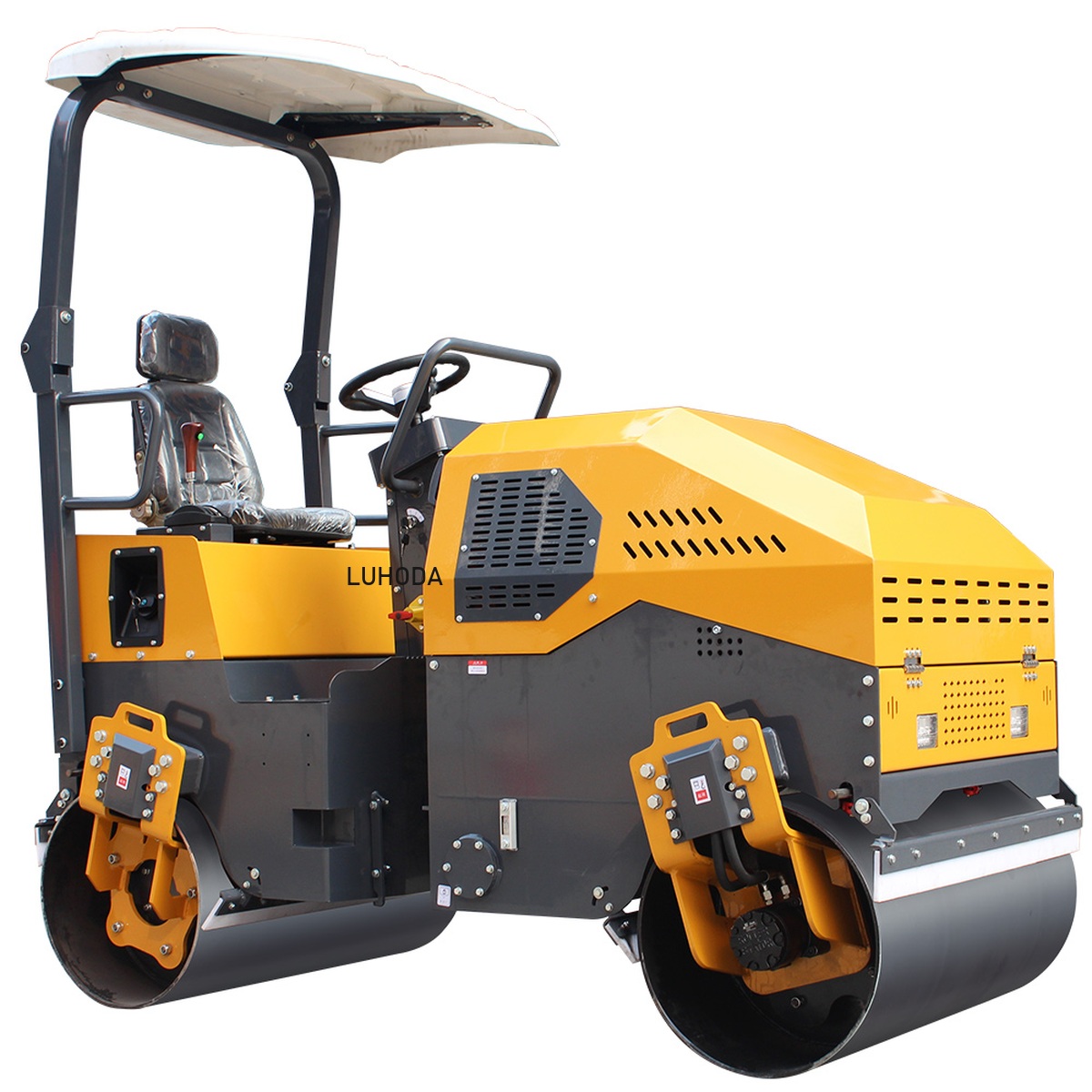

Product Overview

The LHD-YL1100 EPA is an 1100 mm ride on tandem vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Two 1100 mm wide, 560 mm diameter steel drums carry a 2500 kg working weight on a 50N/70N/cm static line load.

Three engine options are listed: ChangChai 390 at 25 kW, QuanChai at 28.5 kW, and the EPA Kubota D1105 at 18.2 kW / 24.5 HP. Vibration runs at 70 Hz with 0.6 mm nominal amplitude and 45 kN of force.

Drive is hydrostatic with 0-9 km/h travel, a 70 L water tank feeds the spray bar, and a canopy covers the operator position.

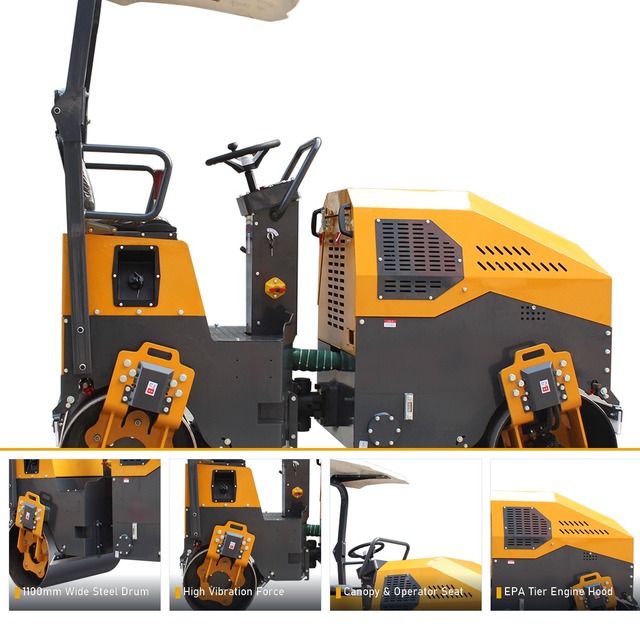

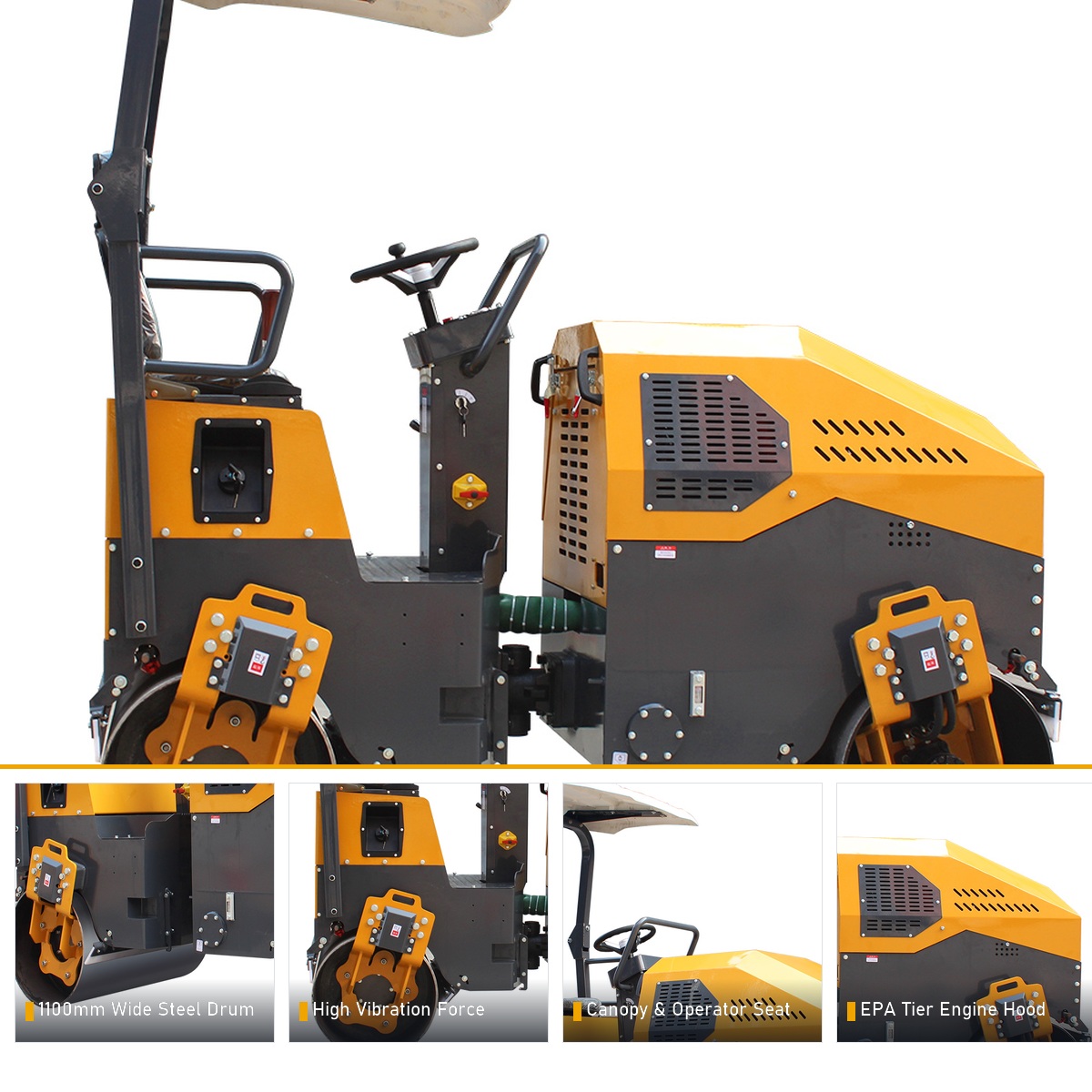

Key Features

1100 mm Drums — the Widest in the Series
Two 1100 mm wide drums at 560 mm diameter give the widest working face in this roller range. On carriageway work that means fewer passes than a 1000 mm machine for the same area.

45 kN Vibration Force at 70 Hz
The highest vibration force in the series at 70 Hz with 0.6 mm nominal amplitude. Combined with a 50N/70N/cm static line load and a 2500 kg working weight, it compacts thicker lifts in fewer passes.

EPA-Spec Kubota D1105 Option
Three engines are offered — ChangChai 390 at 25 kW, QuanChai at 28.5 kW, and the Kubota D1105 at 18.2 kW / 24.5 HP in EPA specification. Buyers can match the engine to local emissions rules and service availability.

0-9 km/h Travel and Canopy Cab
Hydrostatic drive reaches 9 km/h, so the machine moves between plots under its own power, and a canopy shades the operator through long shifts.

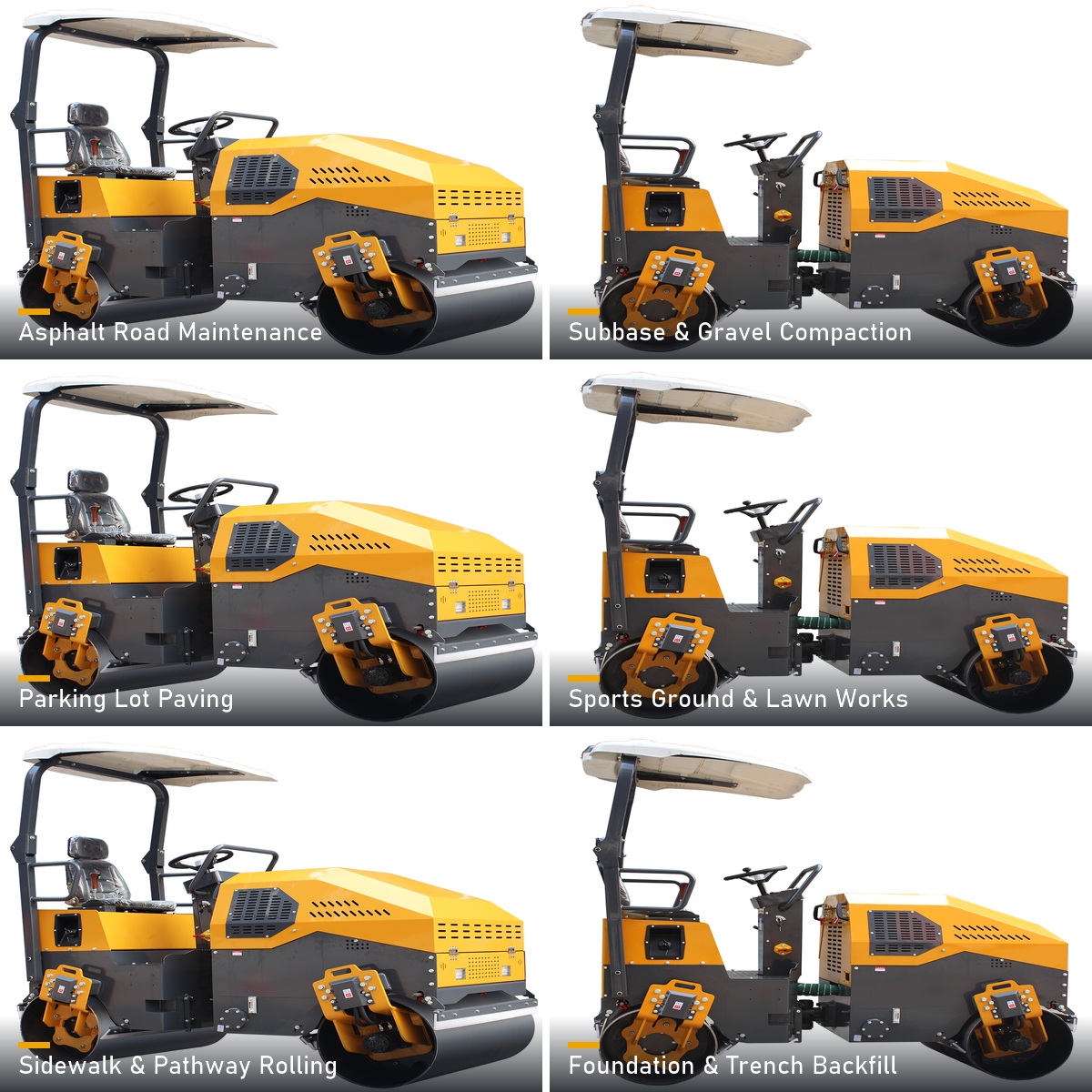

Applications

Highway construction — mainline, shoulder and widening work.

Asphalt compaction — base, binder and wearing course on roads and car parks.

Soil compaction — granular base and sub-base for pavements and hardstandings.

Road construction — new build and resurfacing across carriageway widths.

Parking lot construction — car parks, forecourts and access lanes.

Foundation work — backfill and base layers around buildings.

Product Details

Drums and water system. Two 1100 mm × 560 mm steel drums with scraper bars, fed by a spray bar from the 70 L water tank.

Vibration. Hydraulic vibration: 45 kN force at 70 Hz, 0.6 mm nominal amplitude.

Driveline. Engine options ChangChai 390 (25 kW), QuanChai (28.5 kW) and Kubota D1105 EPA (18.2 kW / 24.5 HP). Hydrostatic transmission, 0-9 km/h, 30% gradeability, 80 L hydraulic oil.

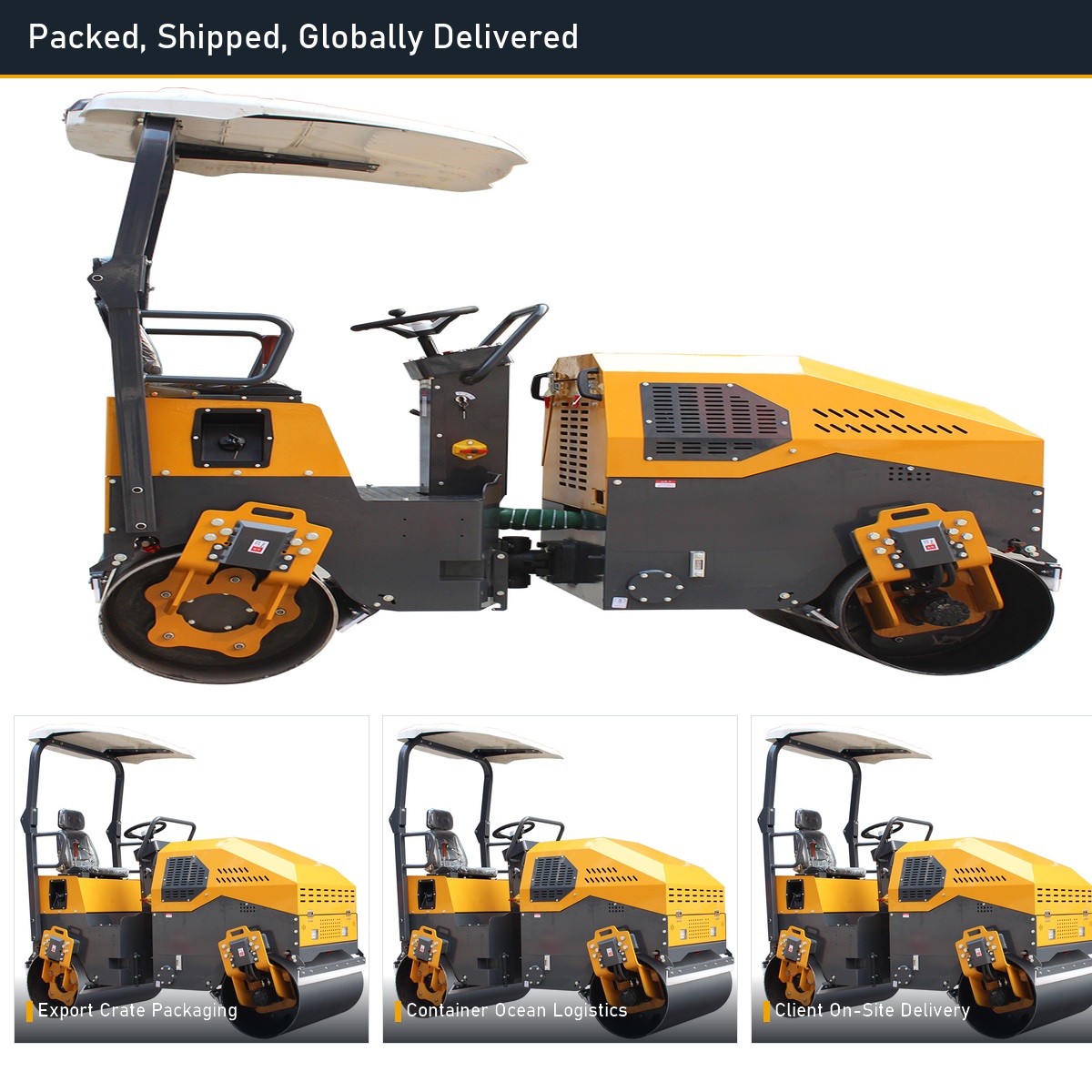

Shipping. Package size 2580 × 1360 × 1930 mm; working weight 2500 kg.

Why Choose Luhongda

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the engine.

Buyer Questions

What is the LHD-YL1100 EPA used for?

It is an 1100 mm ride on tandem vibratory roller for highway, road and car park compaction, with the widest drums and highest vibration force in the series.

Is an EPA-certified engine available?

Yes. The Kubota D1105 option is listed in EPA specification at 18.2 kW / 24.5 HP, alongside ChangChai 390 at 25 kW and QuanChai at 28.5 kW.

What are the main specifications?

Drum width 1100 mm × 2, drum diameter 560 mm × 2, working weight 2500 kg, vibration force 45 kN at 70 Hz, nominal amplitude 0.6 mm, water tank 70 L, gradeability 30%, walking speed 0-9 km/h. Full list in the table above.

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL1100 EPA tandem roller pricing and shipment.
