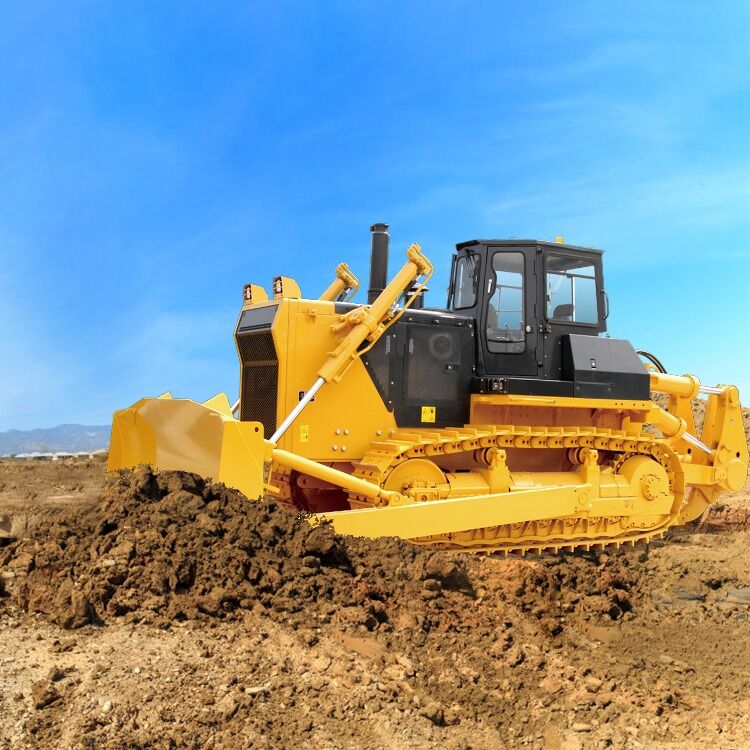

235KW Heavy Duty Crawler Bulldozer with 34500 KG Weight and High Operating Efficiency

Name: 235KW Heavy Duty Crawler Bulldozer with 34500 KG Weight and High Operating Efficiency
Brand: Shandong Luhongda Machinery Co., Ltd.
SKU: LHD32 Crawler Dozer
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: LUHONGDA

Model Number: LHD32 Crawler Dozer

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          235KW Bulldozer, 34500 KG Crawler Bulldozer, High Operating Efficiency Dozer


Color:	Yellow	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Engine, Bearing, Motor, Gear
Moving Type:	Crawler Bulldozer	Machine Weight:	34500 KG
Dimension(Long * Breadth * High):	627627003760	Make:	LUHONGDA
Dozing Capacity:	8m³, 10m³, 6.5m³	Warranty:	1 Year
Hydraulic Cylinder Brand:	Famous Brand	Hydraulic Pump Brand:	Famous Brand
Hydraulic Valve Brand:	Famous Brand	UNIQUE SELLING POINT:	High Operating Efficiency
Rated Revolution:	2000rpm	Gross Power:	257kW(350hp)@2000rpm
Net Power:	235kW(320hp)@2000rpm	Number Of Cylinder-borexstroke:	6-140X152mm
Displacement:	14.01L	Max. Torque:	1509N.m@1400rpm
Cooling System:	Mechanic Fan	Blade Type:	Coal-U
Ground Clearance:	500mm

Color:	Yellow
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	Engine, Bearing, Motor, Gear
Moving Type:	Crawler Bulldozer
Machine Weight:	34500 KG
Dimension(Long * Breadth * High):	627627003760
Make:	LUHONGDA
Dozing Capacity:	8m³, 10m³, 6.5m³
Warranty:	1 Year
Hydraulic Cylinder Brand:	Famous Brand
Hydraulic Pump Brand:	Famous Brand
Hydraulic Valve Brand:	Famous Brand
UNIQUE SELLING POINT:	High Operating Efficiency
Rated Revolution:	2000rpm
Gross Power:	257kW(350hp)@2000rpm
Net Power:	235kW(320hp)@2000rpm
Number Of Cylinder-borexstroke:	6-140X152mm
Displacement:	14.01L
Max. Torque:	1509N.m@1400rpm
Cooling System:	Mechanic Fan
Blade Type:	Coal-U
Ground Clearance:	500mm

Description

235KW Heavy Duty Crawler Bulldozer with 34500 KG Weight and High Operating Efficiency

SD32 Series Heavy Duty Crawler Bulldozer

Technical Specifications

ITEMS	SD32	SD32C	SD32D	SD32R	SD32W
Engine	GSNT-C345S31
Emission	China-III
Rated revolution	2000rpm
Gross power	257kW(350hp)@2000rpm
Net power	235kW(320hp)@2000rpm
Number of cylinder-borexstroke	6-140X152mm
Displacement	14.01L
Max. torque	1509N.m@1400rpm
Cooling system	Mechanic fan
Operating weight(kg)	34500	34150	34150	35230	35000
Blade type	Straight-tilt /Angle/ Semi-U	Coal-U	Straight-tilt /Angle/ Semi-U	Waste handling blade	Straight-tilt /Angle/Semi-U
Blade capacity	7.2/4.8/9m³	12.1m³	7.2/4.8/9m³	18.3m³	7.2/4.8/9m³
Machine height (without ROPS)	3760mm	3760mm	3760mm	3760mm	3760mm
Track grouser height	72mm	72mm	72mm	72mm	72mm
Ground clearance	500mm	500mm	500mm	500mm	500mm
Machine length (without draw bar)	6276mm	6276mm	6276mm	6276mm	6276mm
Machine length (with draw bar)	6610mm	6610mm	6610mm	6610mm	6610mm
Max. lifting height of blade	1560/1703/1560mm	1560mm	1560/1703/1560mm	1560mm	1560/1703/1560mm
Max. digging depth of blade	560/630/560mm	560mm	560/630/560mm	560mm	560/630/560mm
Digging angle of blade	55°±3°(deg.)
Blade width	4130/5000/4130mm	4806mm	4130/5000/4130mm	4502mm	4130/5000/4130mm
Blade height	1590/1140/1710mm	1710mm	1590/1140/1710mm	2314mm	1590/1140/1710mm
Width from end of left track shoe to end of right track shoe (standard)	2700mm	2700mm	2700mm	2700mm	2700mm

Our bulldozer is engineered for powerful performance and superior reliability on all terrains. Equipped with a high-efficiency engine and advanced hydraulic system, it delivers strong pushing force, excellent maneuverability, and low fuel consumption -- ideal for construction, road building, and mining projects.

Main Features

Powerful Engine: Equipped with a reliable diesel engine for strong power output and fuel efficiency
Advanced Hydraulic System: Ensures smooth operation and precise control
Heavy-Duty Chassis: Designed for stability and long service life, even under tough working conditions
Comfortable Cabin: Ergonomic seat, wide visibility, and easy-to-operate controls for reduced operator fatigue
Easy Maintenance: Simple structure and accessible components lower maintenance costs
Versatile Blade Options: The dozer blade can be replaced with attachments such as rippers, buckets, or snow blades to meet different working requirements

Manufacturer Information

We are a professional manufacturer of construction machinery with over 15 years of experience. Our factory is equipped with advanced production lines, strict quality control systems, and a professional R&D team. Every machine is thoroughly tested before delivery to ensure stable performance and durability.

Customization & OEM Service

Optional engines and attachments available
Custom colors and logos accepted
Support for OEM/ODM orders
Fast production and global shipping

After-Sales Service

1-year warranty for main components
Online technical support available 24/7
Spare parts supply for long-term maintenance

Frequently Asked Questions

Q1: What is the delivery time?

A1: Usually within 20-30 days after receiving the deposit.

Q2: Can I customize the bulldozer?

A2: Yes, we can customize engine brands, blade types, ripper, and color according to your requirements.

Q3: What is your warranty policy?

A3: We offer a 12-month warranty or 2,000 working hours, whichever comes first.

Q4: Do you provide spare parts and service overseas?

A4: Yes, we provide spare parts supply and online technical support to assist you worldwide.

Q5: What payment terms do you accept?

A5: T/T, L/C, or trade assurance order are available.
