LHD-YL700 is a 700 mm walk behind single drum vibratory mini road roller with a 500 kg working weight and a 65 N/cm static line load for soil and asphalt compaction.
LHD-YL700 Road Roller
LUHONGDA

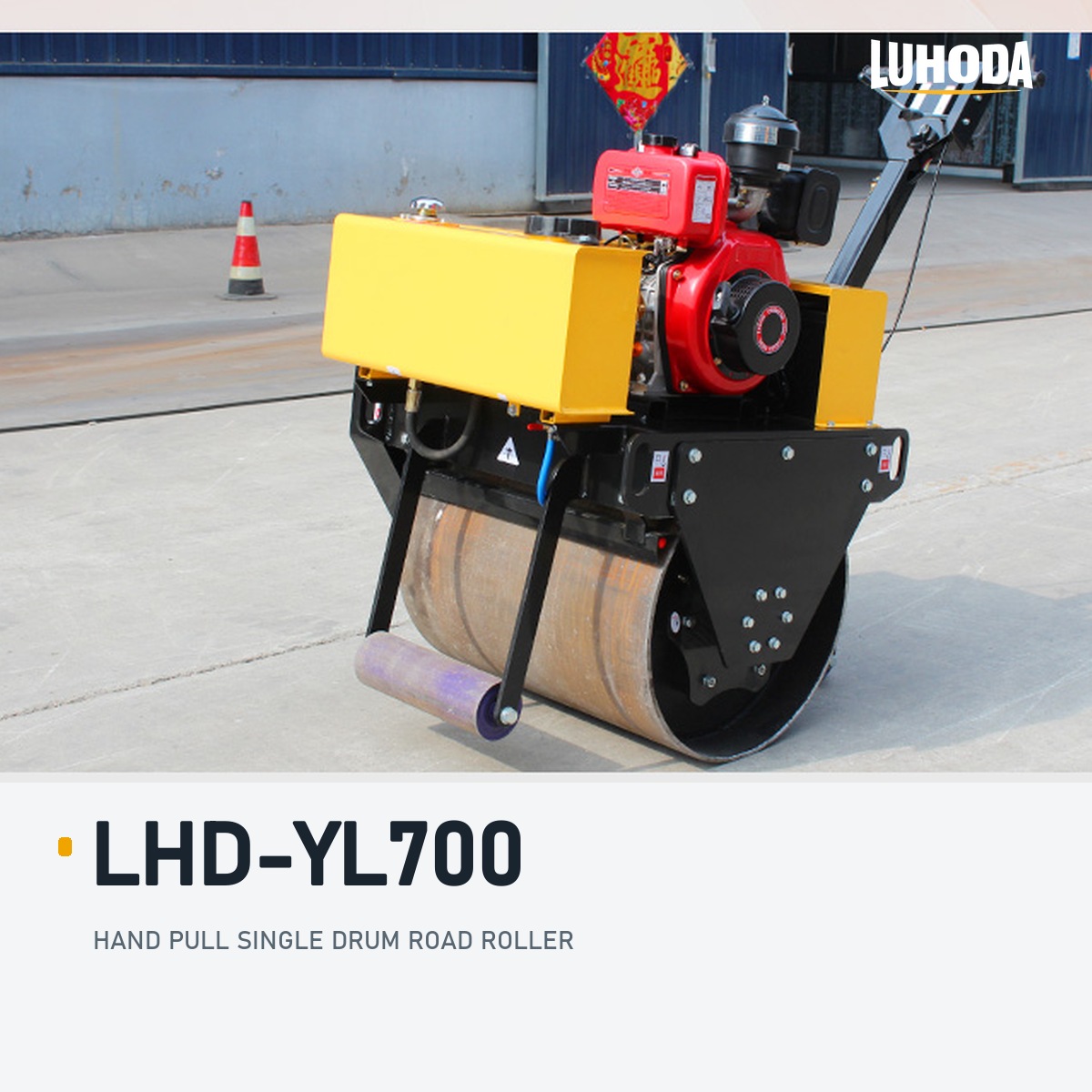

The LHD-YL700 is a 700 mm walk behind single drum vibratory road roller built by Shandong Luhongda Machinery Co., Ltd. Its 700 mm wide, 560 mm diameter steel drum and 500 kg working weight place it in the mini road roller class, compact enough for narrow repair work.
A 4 kW Changchai or Changfa 178F diesel or Honda GX270 gasoline engine produces a 20 kN vibration force at 70 Hz with a 0.5 mm nominal amplitude. Drive is from a hydraulic station and vibration uses automatic clutching with magnetic clutching.
A 65 N/cm static line load and a 25 L water tank suit soil and asphalt work.

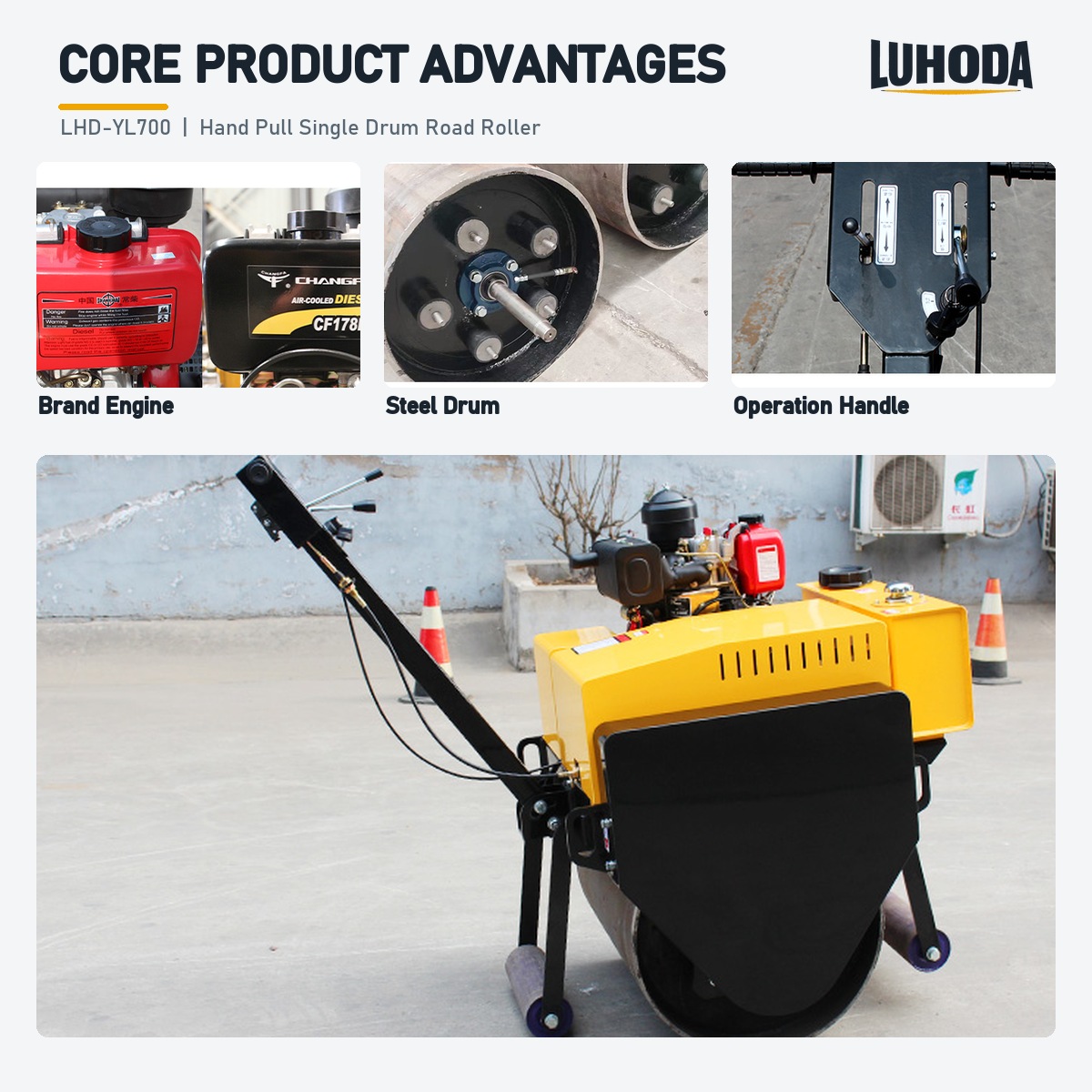

700 mm Single Steel Drum — One 700 mm wide, 560 mm diameter steel drum carrying a 65 N/cm static line load. The higher line load than a smaller drum concentrates compaction energy where it is needed, which helps on granular fill and on thin asphalt lifts.
Changchai / Changfa 178F Diesel or Honda GX270 Gasoline — A 4 kW engine is available in either diesel or gasoline form, with fuel consumption of ≤280 g/kw.h. Buyers working where diesel is easier to obtain can specify the Changchai / Changfa 178F, while the Honda GX270 gasoline version suits sites where petrol is the simpler fuel.
Hydraulic Station Drive with Automatic and Magnetic Clutching — Drive comes from a hydraulic station and the vibratory action is engaged through automatic clutching with magnetic clutching. The result is a 20 kN vibration force at 70 Hz that the operator can disengage while the machine keeps travelling.
25 L Water Tank and Hand-Guided Control — A 25 L water tank feeds the drum spray for asphalt work, reducing refill stops on longer runs. The machine is hand guided with electric start at a 0-4 km/h working speed and 30% gradeability.

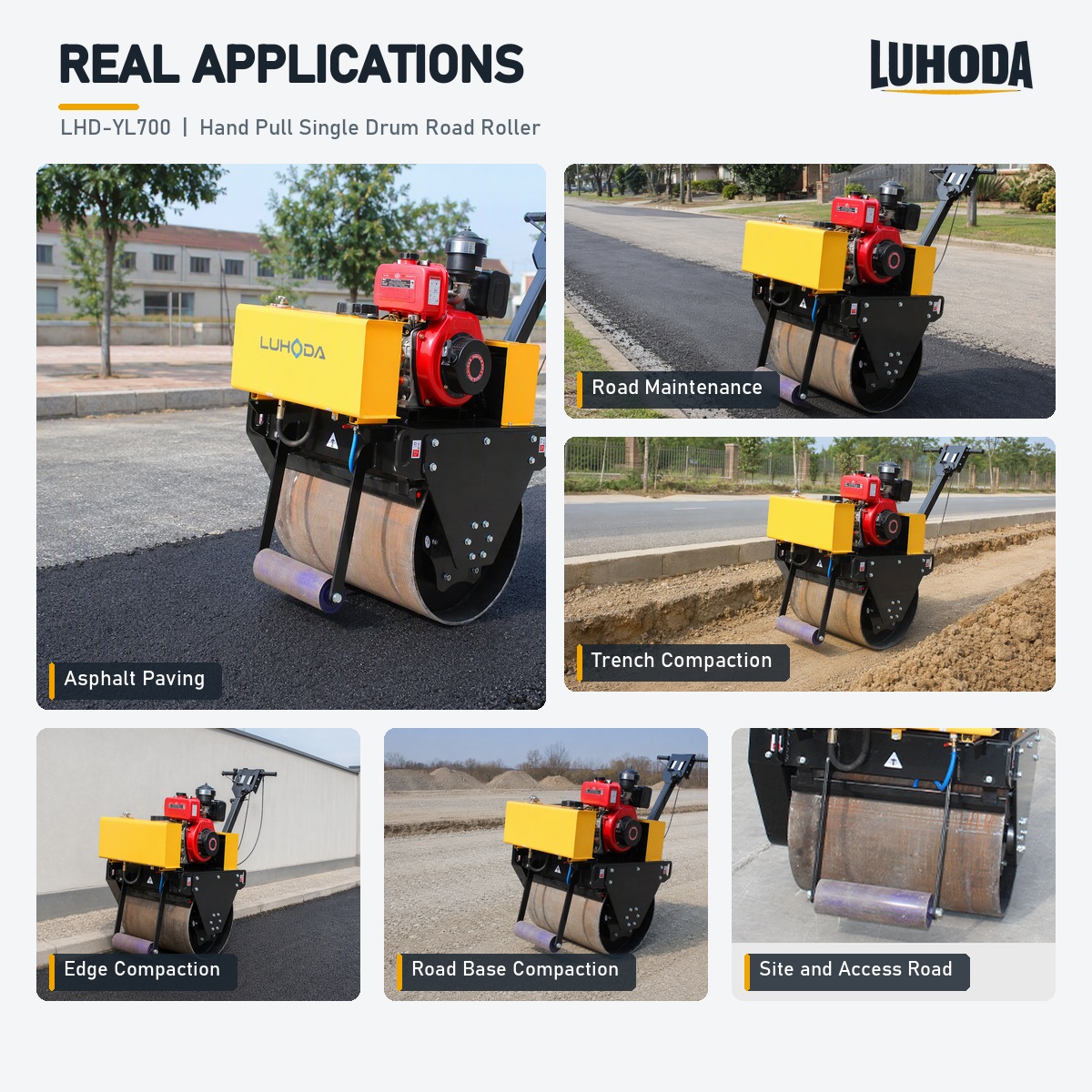

Footpath and pavement repair — reinstating narrow asphalt strips after service work.
Trench and service backfill — compacting granular fill in confined excavations.
Kerb-side and edge rolling — finishing strips beside kerbs, channels and walls.

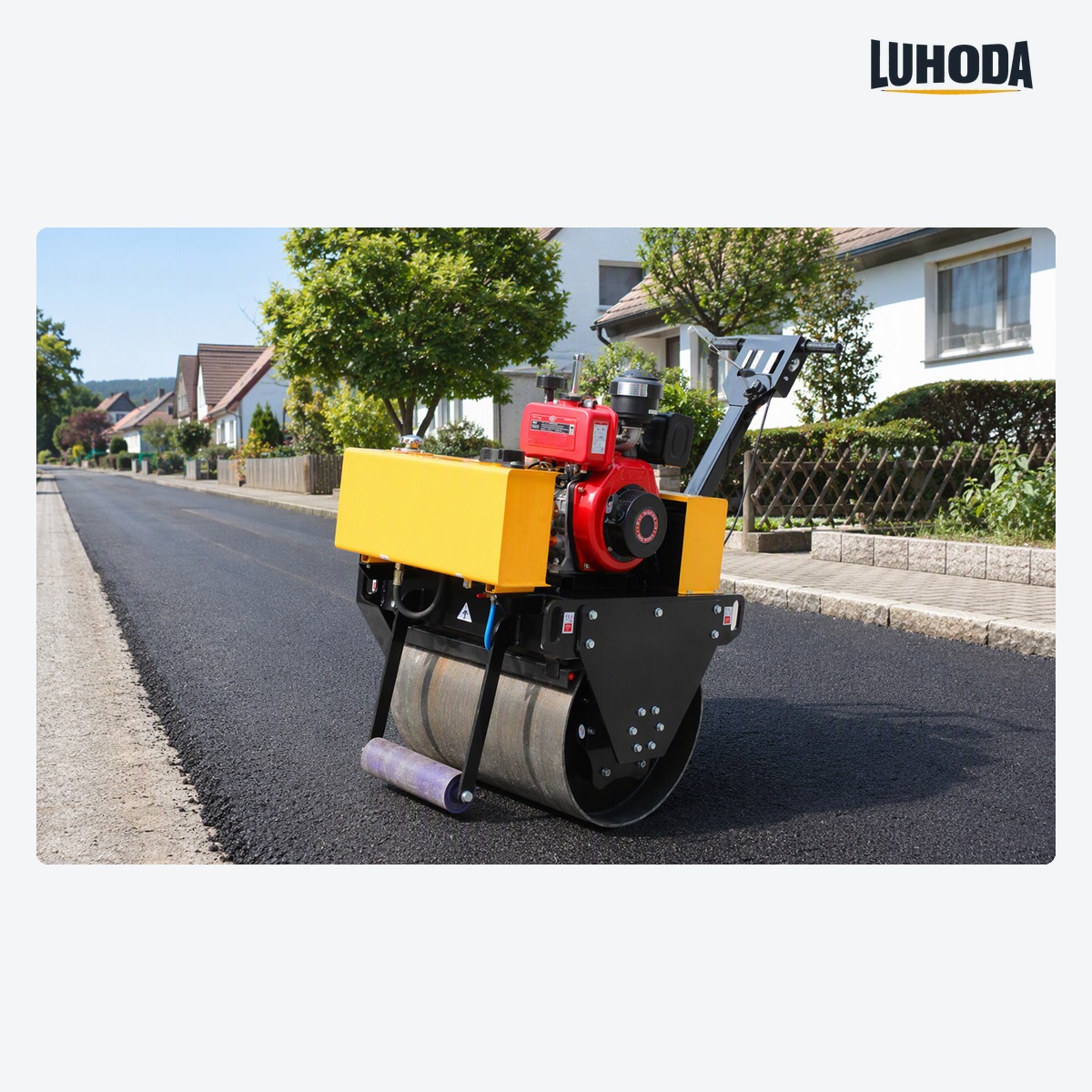

Small asphalt paving — surface compaction on driveways, yards and parking bays.
Soil and granular base work — sub-base and fill compaction on small road sections.
Landscape and pathway projects — courtyard paving and small hardstanding.

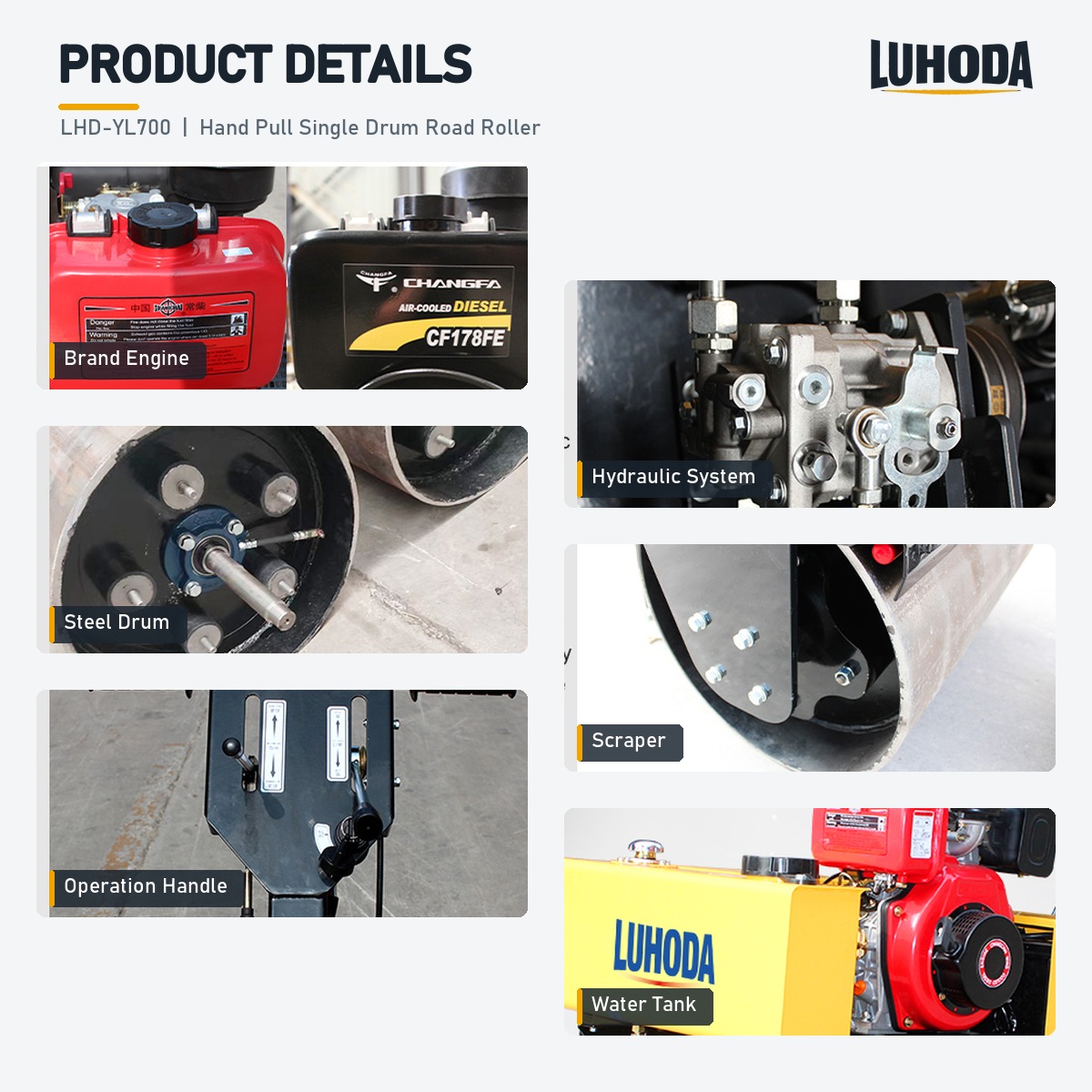

Drum and Frame. A single 700 mm wide, 560 mm diameter steel drum carries a 65 N/cm static line load within a steel frame at a 500 kg working weight. A 25 L water tank supplies the drum spray for asphalt work.
Engine and Drive. A 4 kW engine is offered in diesel form (Changchai or Changfa 178F) or gasoline form (Honda GX270), with fuel consumption of ≤280 g/kw.h. Drive is hydraulic from a station unit, and vibration is engaged by automatic clutching with magnetic clutching.
Operator Control. A hand-guided handle with electric start manages travel and vibration at a 0-4 km/h working speed with 30% gradeability. Transport dimensions are 1300*850*1600 mm.
Item | Specification |
Model | LHD-YL700 |
Drum Width | 700 MM |
Drum Diameter | 560 MM |
Working Weight | 500 KG |
Gradeability | 30% |
Water Tank Volume | 25 L |
Product Size | 1300*850*1600 MM |
Walking Speed | 0-4 KM/H |
Static Line Load | 65 N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 20 KN |
Drive Form | Hydraulic Station |
Vibration Form | Automatic Clutching ／ Magnetic clutching |
Engine Model | Changchai, Changfa 178F ｜ Honda GX270 |
Engine Type | Diesel, Air-cooled 4-stroke ｜ Gasoline |
Engine Power | 4 KW |
Fuel Consumption | ≤280 g/kw.h |
Shandong Luhongda Machinery Co., Ltd. is a road equipment manufacturer based in Jining, Shandong, China. The company builds compact hand-guided rollers as well as larger tandem machines, and the LHD-YL700 is produced in its own factory — so buyers of mini road rollers deal with the producer rather than a reseller.
For contractors, rental yards and dealers sourcing compact rollers, the factory supports OEM and customized specifications and can quote both the diesel and gasoline engine versions. Spare parts support is available for ongoing road roller maintenance.
What is the LHD-YL700 used for? — It is a 700 mm walk behind single drum vibratory mini road roller for soil and asphalt compaction — footpath and pavement repair, trench backfill, kerb-side rolling, small paving jobs and pathway work in areas a ride-on roller cannot reach.
What are the main specifications of the LHD-YL700? — Drum width 700 mm, drum diameter 560 mm, working weight 500 kg, static line load 65 N/cm, vibration force 20 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 25 L, gradeability 30%, walking speed 0-4 km/h, product size 1300*850*1600 mm. Engine: 4 kW, Changchai or Changfa 178F diesel, or Honda GX270 gasoline. The full list is in the specification table above.
Should I choose the diesel or the gasoline engine version? — The 4 kW Changchai or Changfa 178F diesel suits sites where diesel supply and service are straightforward, while the Honda GX270 gasoline version is easier where petrol is the simpler fuel. Both are covered in the specification table — tell us your working conditions and the factory can confirm the fit.
How do I get a quotation, shipment information and spare parts support? — Pricing, payment terms and shipping are quoted per order and per destination. Share your working conditions, target quantity and delivery port, and our sales team will confirm the configuration and terms. Spare parts support for road roller maintenance is also available on request.
Contact us with your working conditions, target quantity and destination port for the mini road roller — engine choice, shipment and spare parts. Our sales team will confirm the details for your order.
