LHD-YL700Z 1Ton is a 1 ton ride on twin drum vibratory road roller with front 700 mm and rear 500 mm drums, a 1000 kg working weight and a 48 L water tank.
LHD-YL700Z 1Ton Road Roller
LUHONGDA

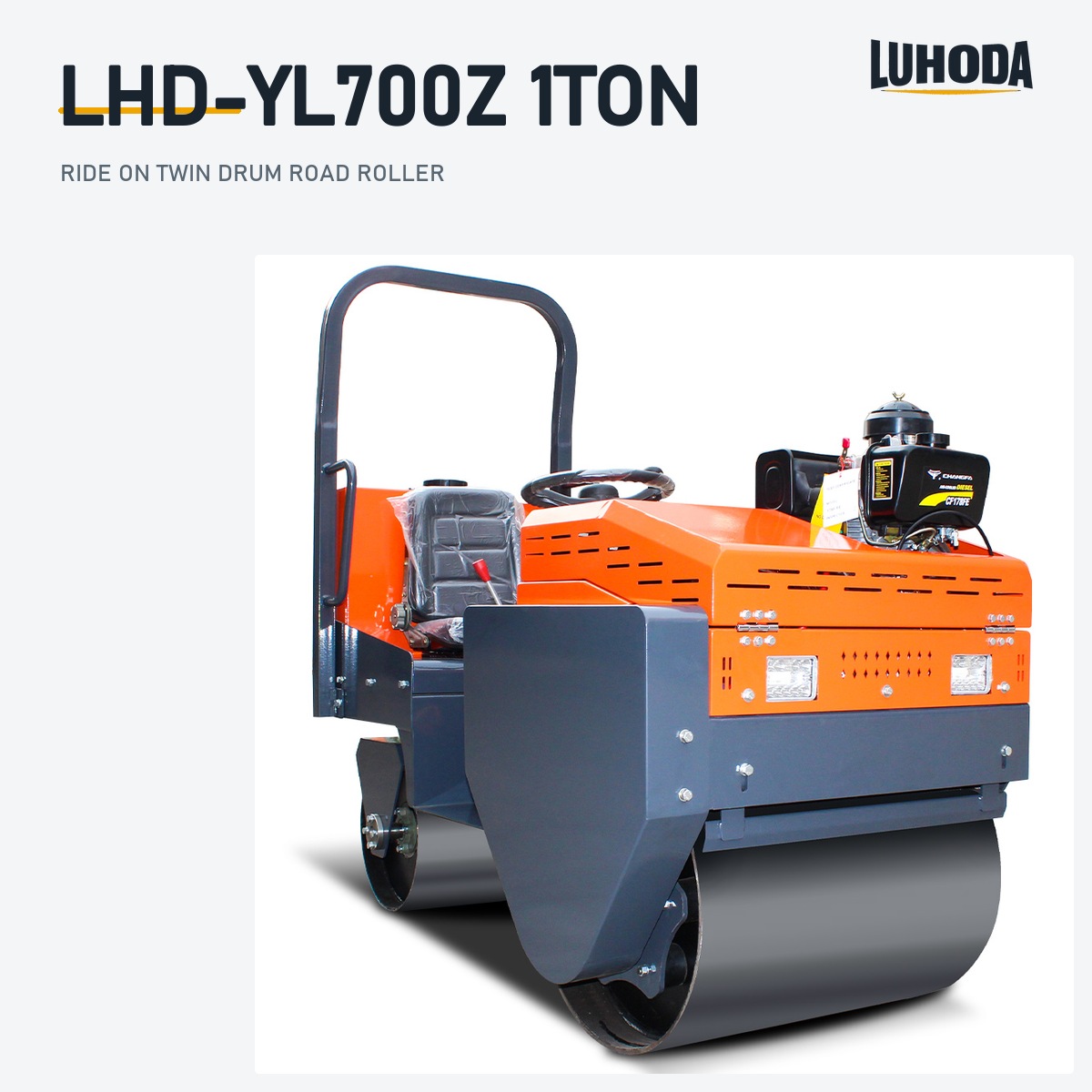

The LHD-YL700Z 1Ton is a 1 ton ride on twin drum vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Its front drum is 700 mm wide by 530 mm diameter and the rear drum 500 mm wide by 425 mm diameter, carried on a 1000 kg working weight.
A 4 kW diesel engine is offered as a Changchai 178F or Changfa 178F, air-cooled four-stroke, at ≤280 g/kw.h fuel consumption. Drive is hydrostatic with an electromagnetic clutch, giving 20 kN of vibration force at 70 Hz with a 0.5 mm nominal amplitude.
A 48 L water tank extends asphalt working time between refills, and the seated operator position with electric start suits longer repair and paving runs.
1 Ton Working Weight on 700 mm and 500 mm Drums — The 1000 kg working weight is carried on a 700 mm wide, 530 mm diameter front drum and a 500 mm wide, 425 mm diameter rear drum, with a 56N/75N/cm static line load. More weight on the drum means deeper, faster compaction on granular fill than a lighter machine of the same width.
Changchai 178F or Changfa 178F Diesel Engine — A 4 kW diesel engine is offered in either Changchai 178F or Changfa 178F form, air-cooled four-stroke, at ≤280 g/kw.h fuel consumption. Two diesel options let buyers match the engine to whichever brand has the better service and parts network in their market.
Hydrostatic Transmission with Electromagnetic Clutch — Drive is through a hydrostatic transmission and vibration is engaged by an electromagnetic clutch, delivering a 20 kN vibration force at 70 Hz. Hydrostatic drive gives smooth, controlled travel at low speed — useful when rolling thin asphalt lifts and working close to kerbs.
48 L Water Tank and Ride On Platform — The 48 L water tank is more than double the capacity of a compact 700 mm class roller, cutting refill stops on asphalt runs. The seated operator platform with electric start covers a 0-5 km/h working speed and 30% gradeability.

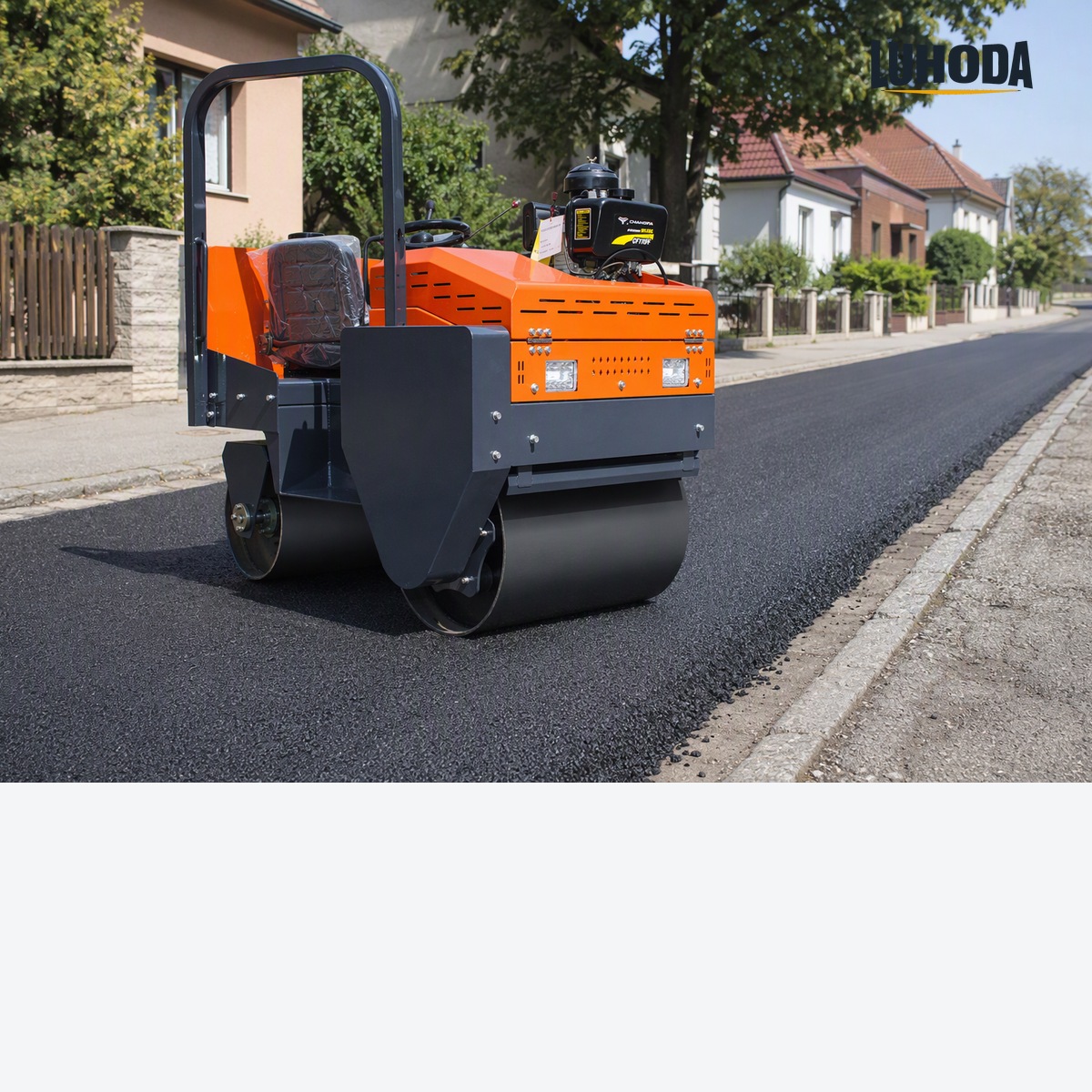

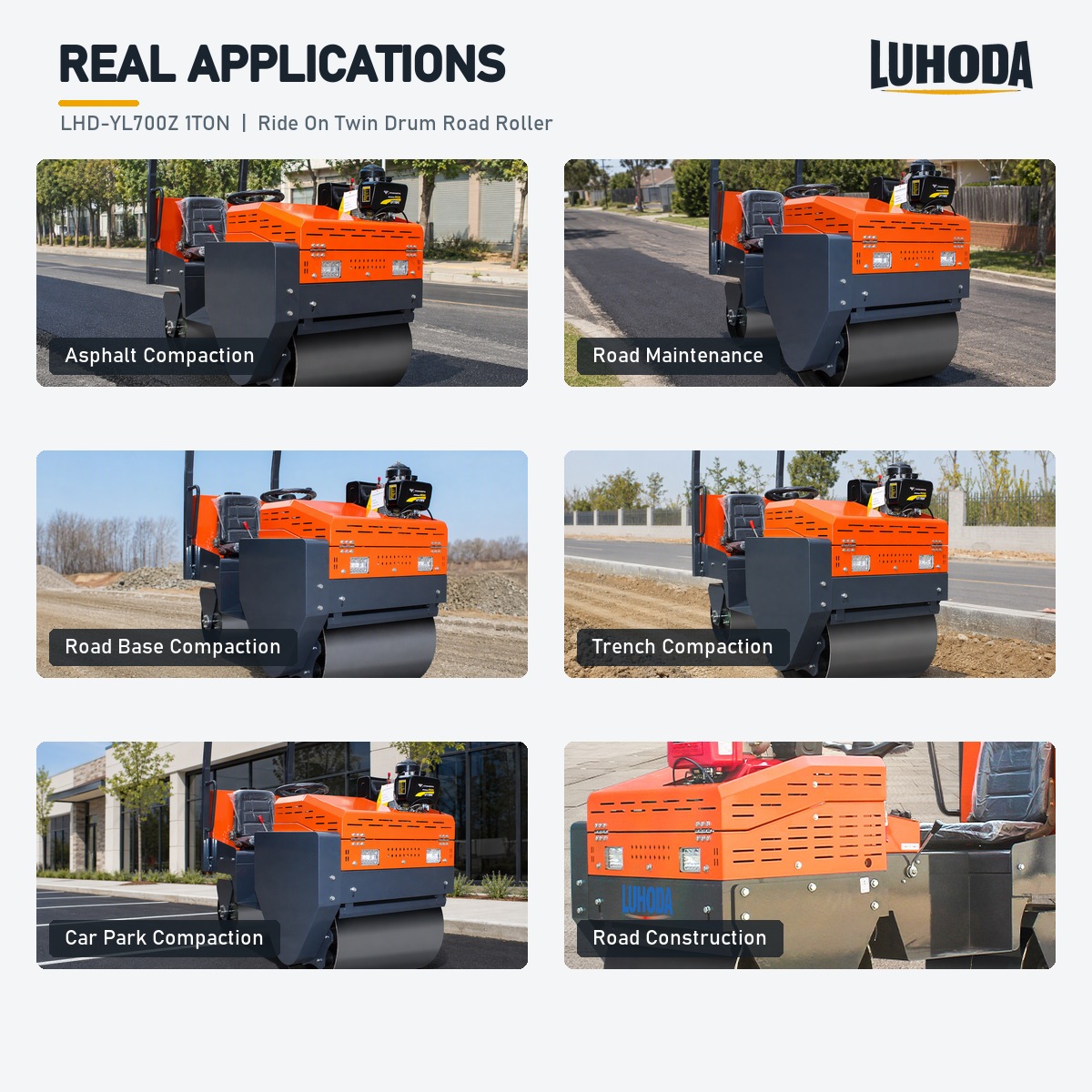

Road repair and patching — reinstating asphalt after utility and surface repairs.
Trench and service reinstatement — compacting granular backfill in confined excavations.
Kerb-side and edge rolling — trimming asphalt beside kerbs, channels and edges.
Small paving contracts — driveways, yards, parking bays and forecourts.
Soil and base course compaction — sub-base and fill layers on small road sections.
Municipal and footpath work — pathway widening and local authority repairs.

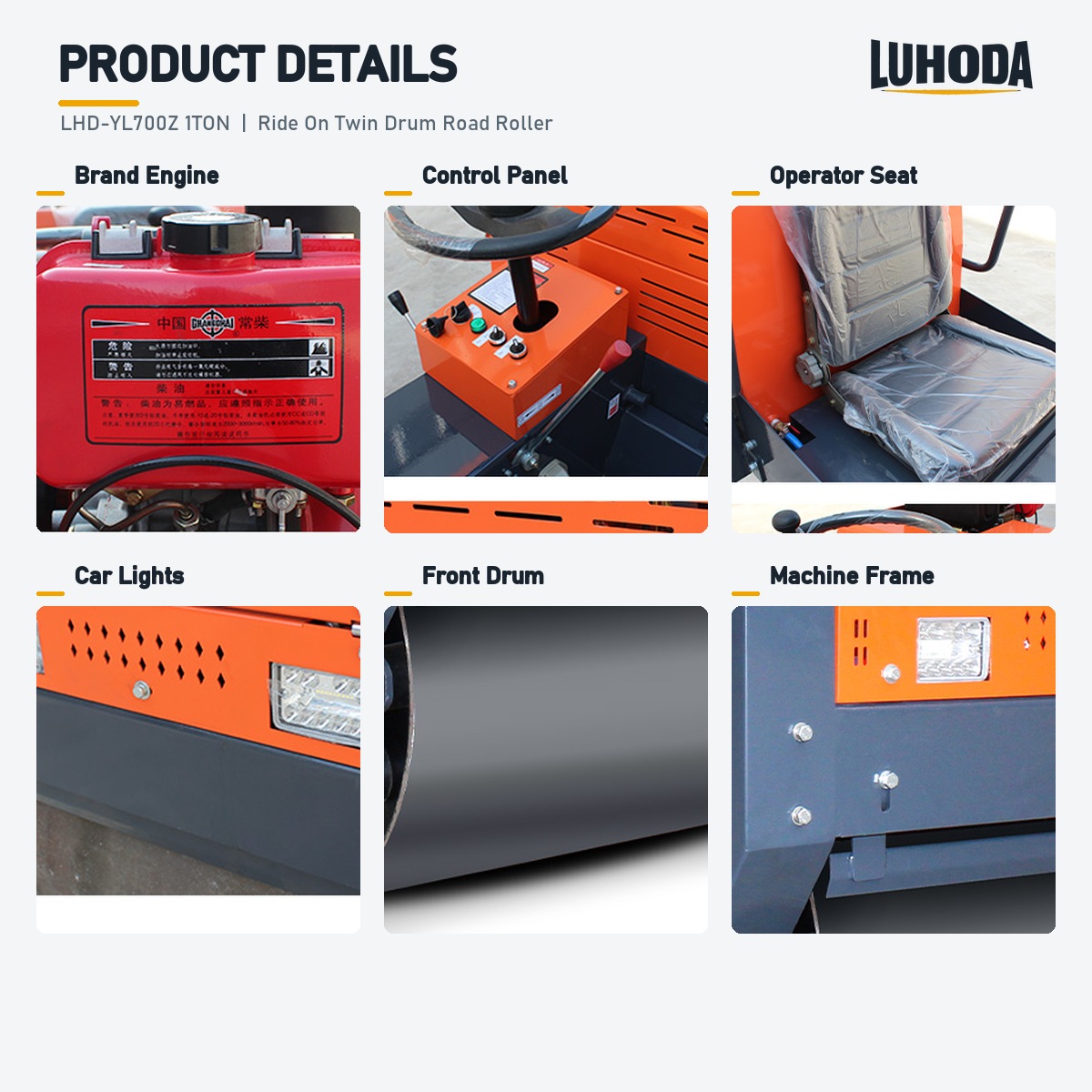

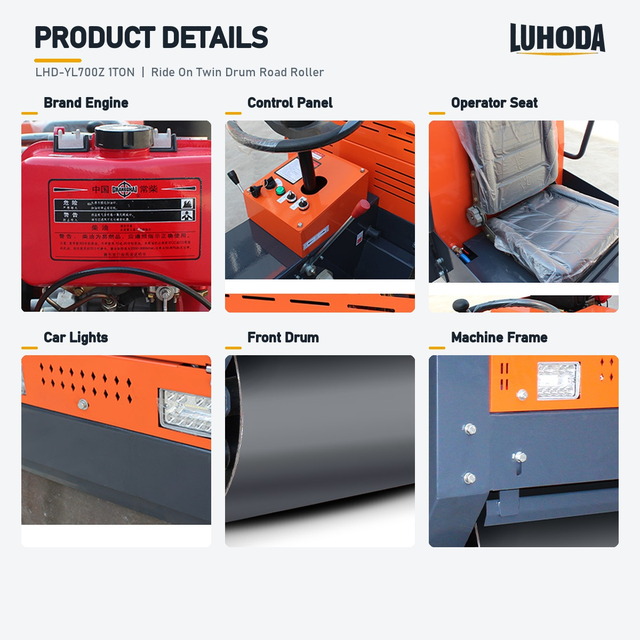

Drums and Frame. A 700 mm wide, 530 mm diameter front drum and a 500 mm wide, 425 mm diameter rear drum carry a 56N/75N/cm static line load on a 1000 kg working weight. A 48 L water tank supplies the drum spray bar.
Engine and Drive. A 4 kW Changchai 178F or Changfa 178F diesel, air-cooled four-stroke, runs at ≤280 g/kw.h fuel consumption. Drive is by hydrostatic transmission and vibration is engaged through an electromagnetic clutch.

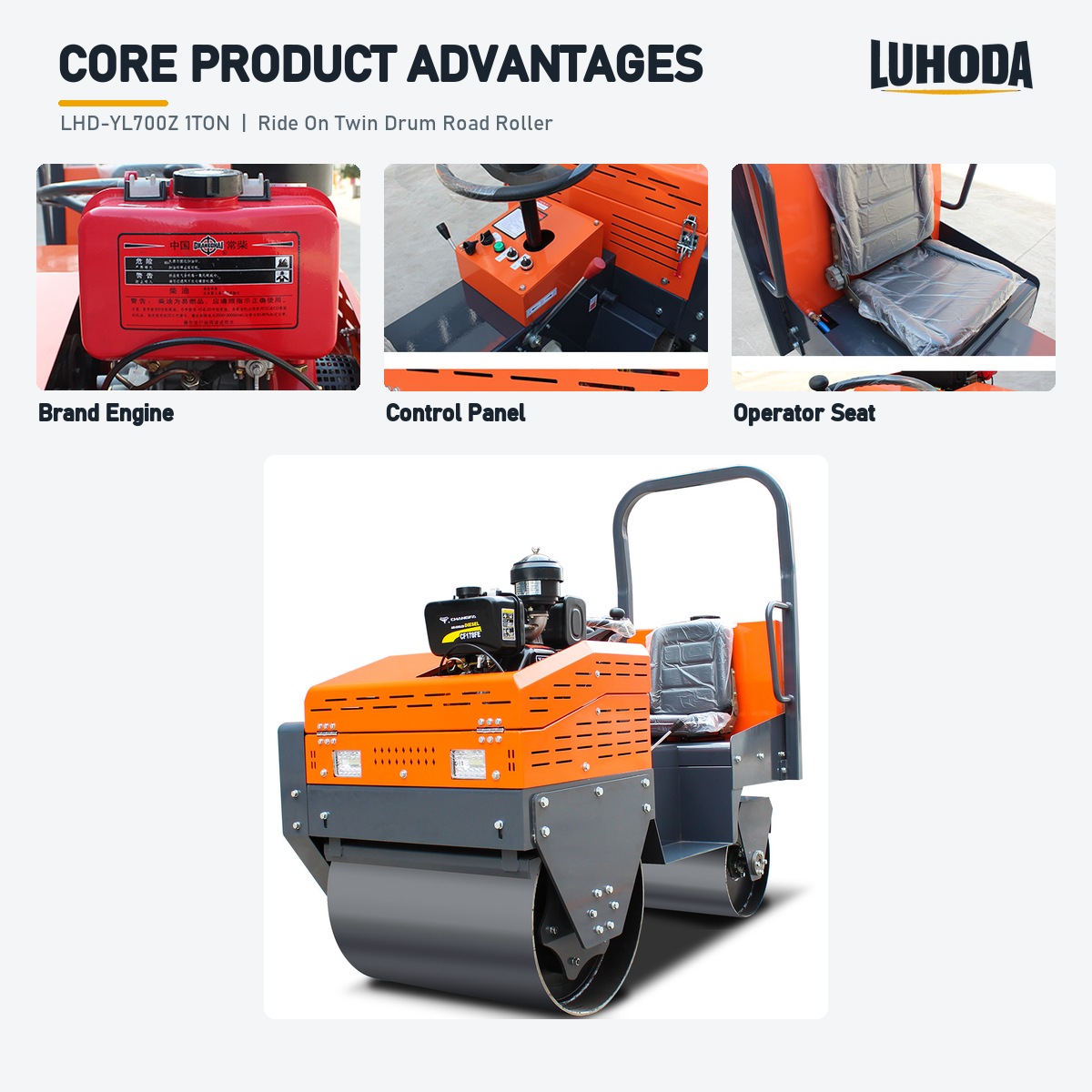

Operator Station. The operator rides on a seated platform with electric start and steers at a 0-5 km/h working speed with 30% gradeability. Package size is 1950*950*1250 mm.
Item | Specification |
Model | LHD-YL700Z 1Ton |
Drum Width | Front: 700MM ／ Rear: 500MM |
Drum Diameter | Front: 530MM ／ Rear: 425MM |
Working Weight | 1000 KG |
Gradeability | 30% |
Water Tank Volume | 48 L |
Package Size | 1950*950*1250 MM |
Walking Speed | 0-5 KM/H |
Static Line Load | 56N/75N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 20 KN |
Drive Form | Hydrostatic Transmission |
Vibration Form | Electromagnetic Clutch |
Engine Model | Changchai178F ｜ Changfa 178F |
Engine Type | Diesel ｜ Air-cooled Four-Stroke |
Engine Power | 4 KW |
Fuel Consumption | ≤280 G/kw.h |
Shandong Luhongda Machinery Co., Ltd. is a road equipment manufacturer based in Jining, Shandong, China. The company produces a range of ride on twin drum rollers in its own plant, including the 1 ton class, so buyers are dealing with the producer rather than a reseller.
For contractors, rental companies and dealers sourcing 1 ton road rollers, the factory supports OEM and customized specifications and can quote either the Changchai 178F or Changfa 178F diesel. Spare parts support is available for road roller maintenance after delivery.
What is the LHD-YL700Z 1Ton used for? — It is a 1 ton ride on twin drum vibratory road roller for road repair and patching, trench reinstatement, kerb-side rolling, small paving contracts and soil or base course compaction — work that needs more compaction weight than a compact hand-guided roller without moving up to a larger machine.
What are the main specifications of the LHD-YL700Z 1Ton? — Drum width: front 700 mm, rear 500 mm. Drum diameter: front 530 mm, rear 425 mm. Working weight 1000 kg, static line load 56N/75N/cm, vibration force 20 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 48 L, gradeability 30%, walking speed 0-5 km/h, package size 1950*950*1250 mm. Engine: 4 kW diesel, Changchai 178F or Changfa 178F, air-cooled four-stroke. The full list is in the specification table above.
Why are the front and rear drums different sizes? — The front drum is wider and larger in diameter to give coverage on open surfaces, while the narrower rear drum follows it into confined areas such as kerb edges and patch edges. Both figures come from the manufacturer specification table above.
How do I get a quotation, shipment information and spare parts support? — Pricing, payment terms and shipping are quoted per order and per destination. Share your working conditions, target quantity and delivery port, and our sales team will confirm the configuration and terms. Spare parts support for road roller maintenance is also available on request.
Contact us with your working conditions, target quantity and destination port for the LHD-YL700Z 1Ton ride on road roller — engine choice, shipment and spare parts. Our sales team will confirm the details for your order.
