LHD-YL700Z is a 700 mm ride on twin drum vibratory road roller with a 700 mm front drum, a 500 mm rear drum and an 800 kg working weight for road repair and small paving work.
LHD-YL700Z Road Roller
LUHONGDA

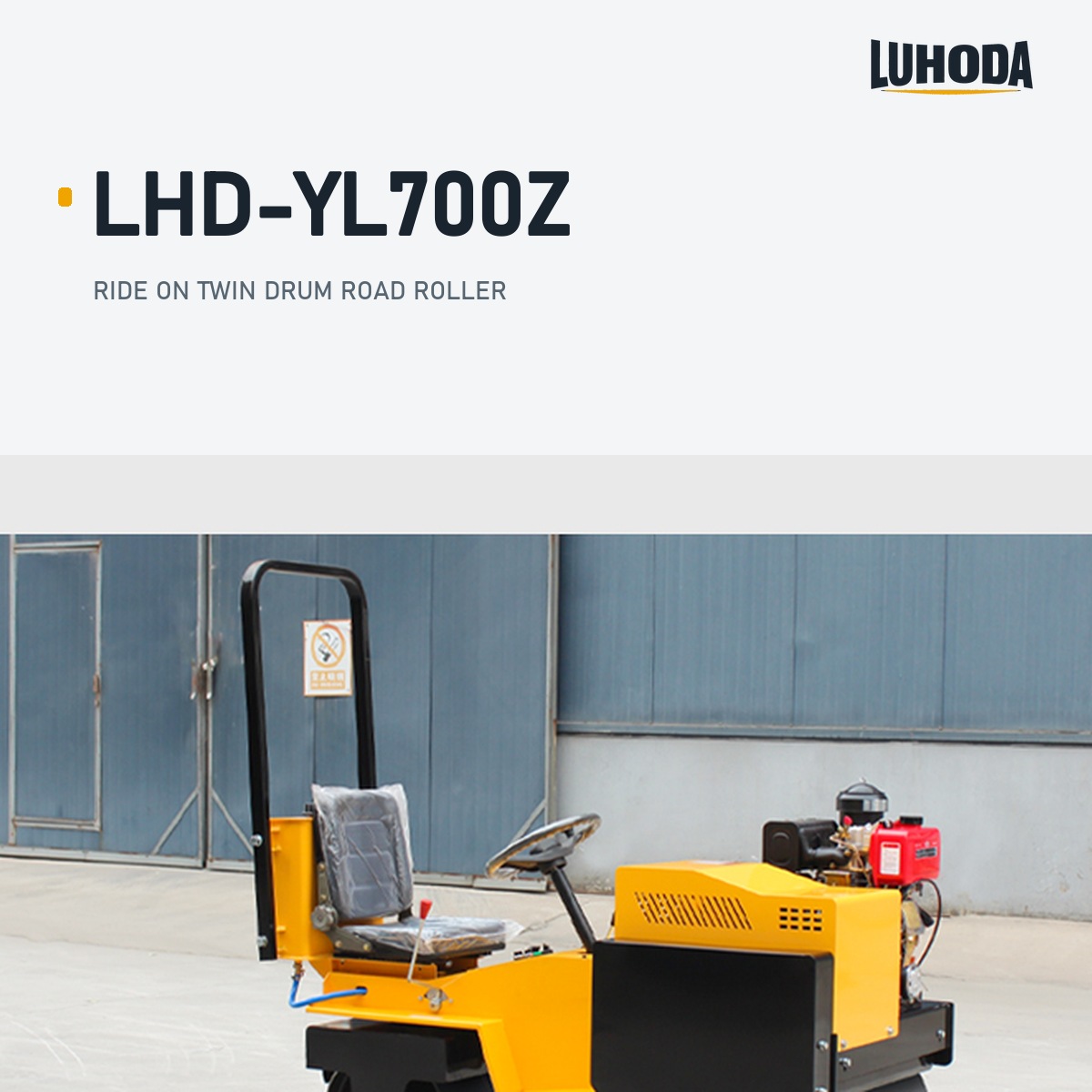

The LHD-YL700Z is a 700 mm ride on twin drum vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Its two drums differ in size — 700 mm wide by 520 mm diameter at the front drum and 500 mm wide by 425 mm diameter at the rear — on an 800 kg working weight.
A 5.67 kW water-cooled Changchai 180 engine is offered alongside a 4 kW air-cooled Changfa 178F, producing 20 kN of vibration force at 70 Hz with a 0.5 mm nominal amplitude. Drive is hydrostatic and vibration uses an electromagnetic clutch.
Because the operator is seated rather than walking, this road roller suits longer runs than a hand-guided machine.
700 mm Front and 500 mm Rear Steel Drums — The front drum is 700 mm wide by 520 mm diameter and the rear drum 500 mm wide by 425 mm diameter, carrying a 50N/75N/cm static line load. The narrower rear drum follows the front drum on kerb edges and confined repairs, while the wider front drum keeps coverage on open surfaces.

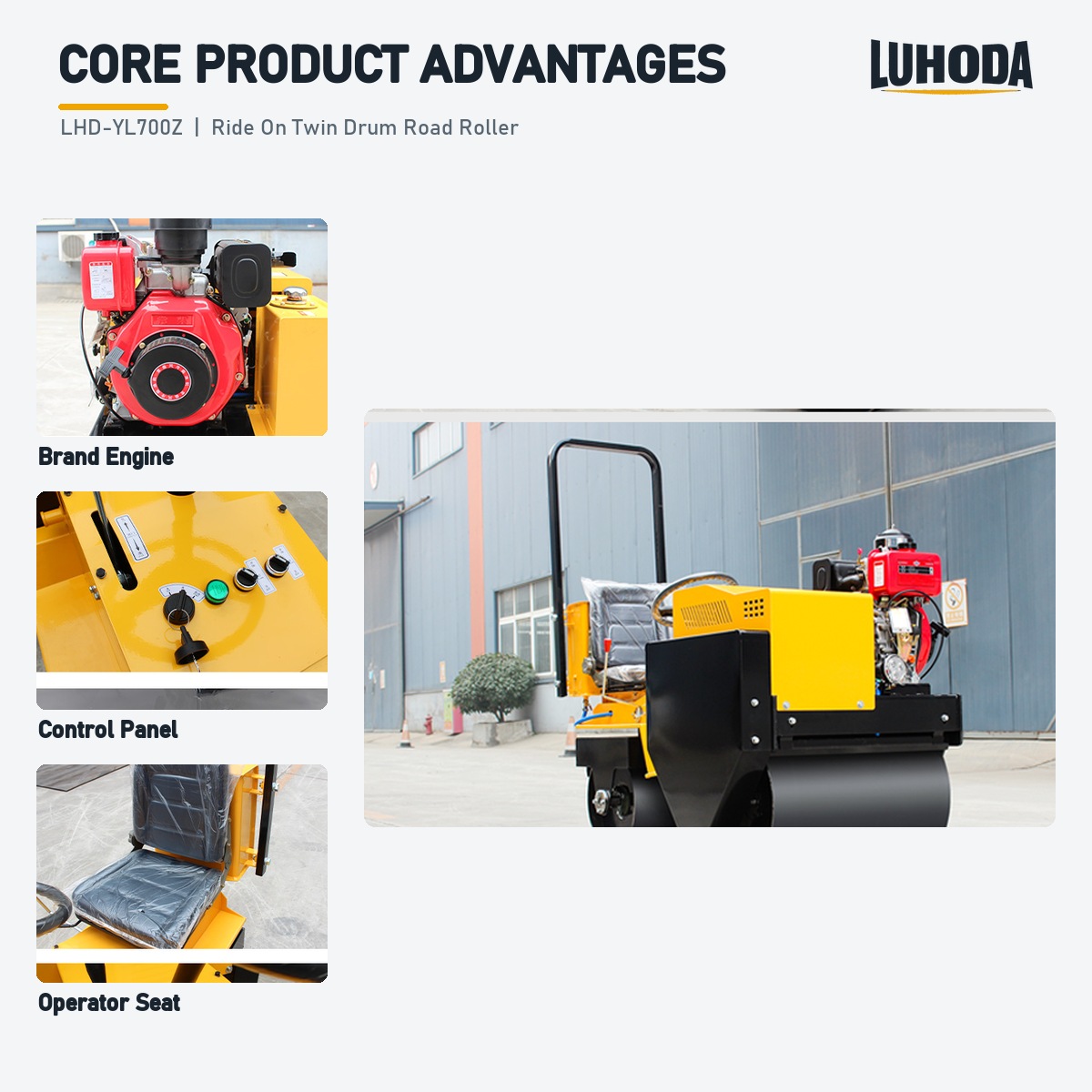

Changchai 180 Water-Cooled or Changfa 178F Air-Cooled Engine — A 5.67 kW water-cooled Changchai 180 is available, along with a 4 kW air-cooled Changfa 178F, both at ≤280 g/kw.h fuel consumption. Buyers can match the engine to local fuel, service and spare parts conditions instead of accepting a single fixed option.
Hydrostatic Transmission with Electromagnetic Clutch — Drive is through a hydrostatic transmission and vibration is engaged by an electromagnetic clutch, giving a 20 kN vibration force at 70 Hz. Hydrostatic drive moves the machine smoothly at low travel speed, which matters when rolling thin lifts and working close to kerbs.
Ride On Platform with 20 L Water Tank — The seated operator platform with electric start covers a 0-5 km/h working speed and 30% gradeability, so long repair runs are worked without walking the machine. A 20 L water tank supplies the drum spray for asphalt work.

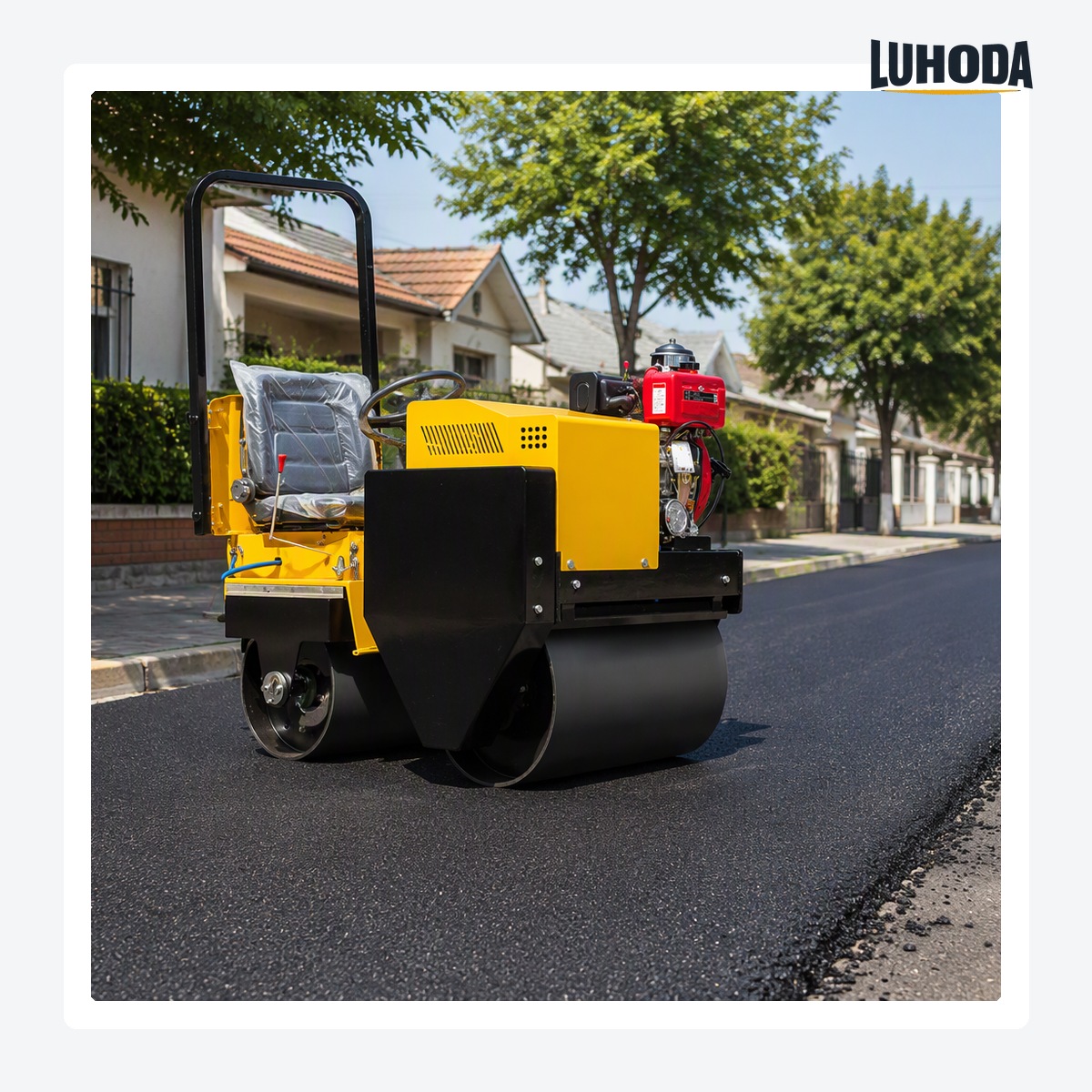

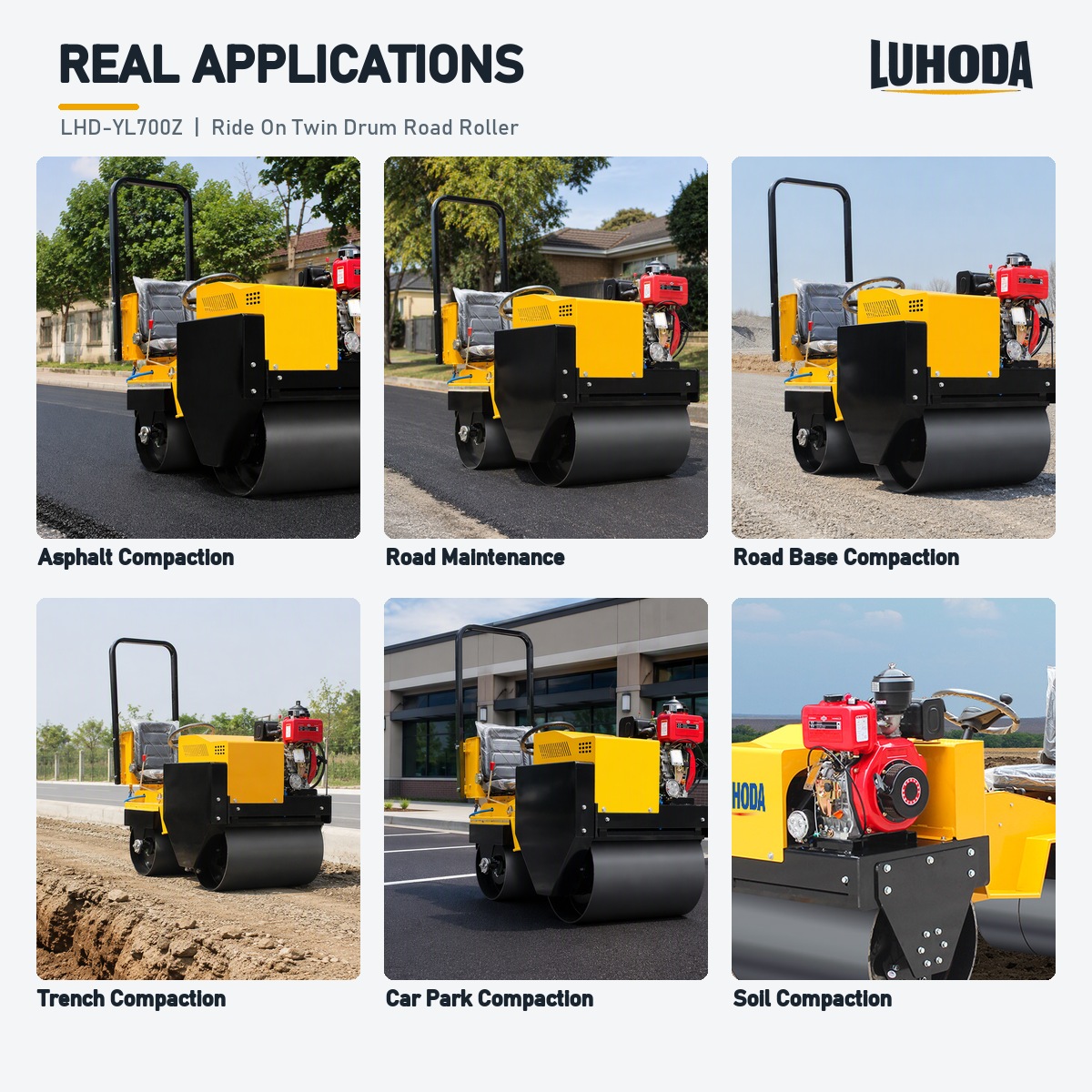

Road repair and patching — reinstating asphalt after utility and surface repairs.
Trench and service reinstatement — compacting granular backfill in confined excavations.
Kerb-side and edge rolling — trimming asphalt beside kerbs, channels and edges.
Small paving contracts — driveways, yards, parking bays and forecourts.
Soil and base course compaction — sub-base and fill layers on small road sections.
Footpath and municipal work — pathway widening and local authority repairs.

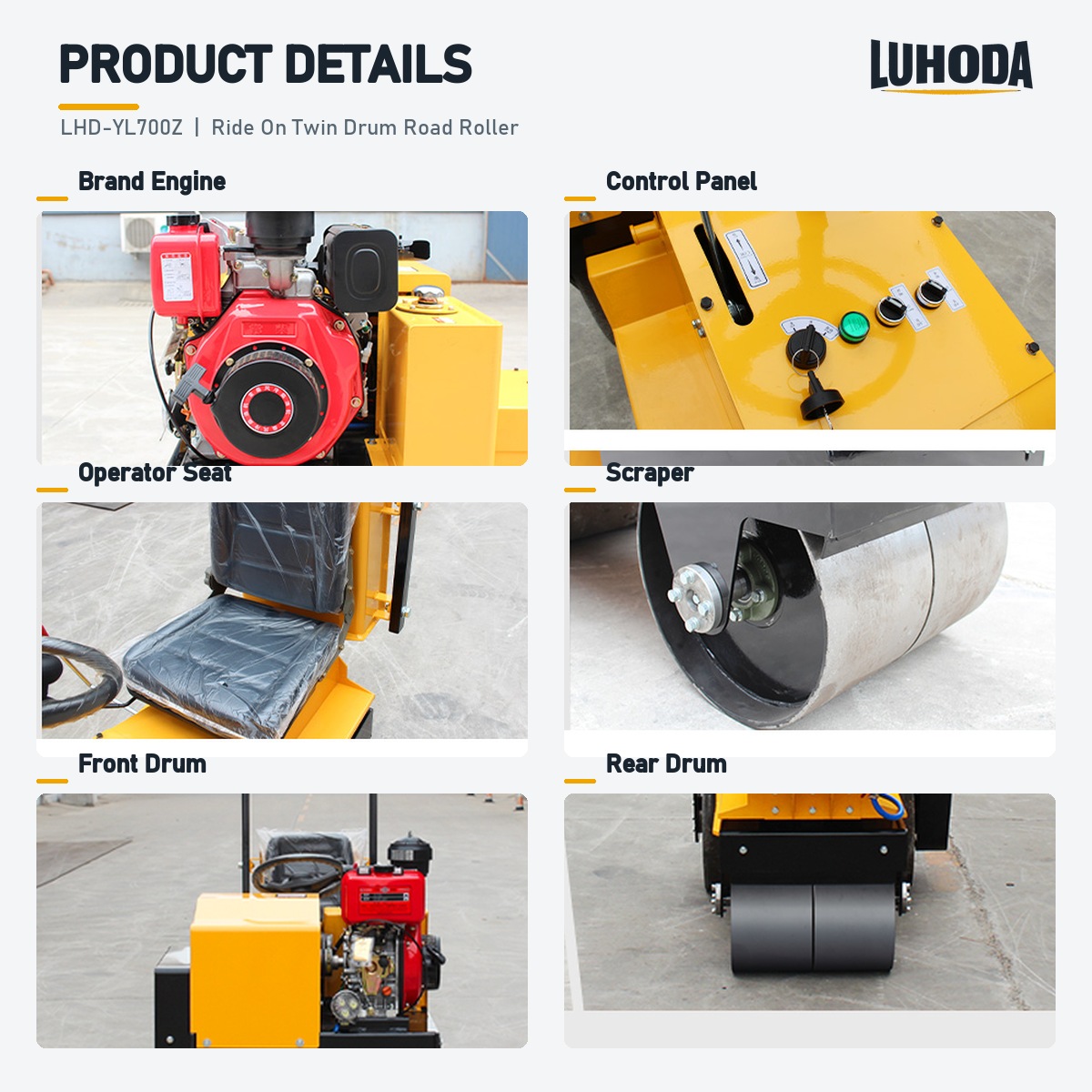

Drums and Frame. The front drum is 700 mm wide by 520 mm diameter and the rear drum 500 mm wide by 425 mm diameter, with a 50N/75N/cm static line load on an 800 kg working weight. A 20 L water tank supplies the drum spray bar.
Engine and Drive. A 5.67 kW water-cooled Changchai 180 or a 4 kW air-cooled Changfa 178F is offered, both at ≤280 g/kw.h fuel consumption. Drive is by hydrostatic transmission and vibration is engaged through an electromagnetic clutch.
Operator Station. The operator rides on a seated platform with electric start and steers the machine at a 0-5 km/h working speed with 30% gradeability. Transport dimensions are 2050*900*1130 mm.
Item | Specification |
Model | LHD-YL700Z |
Drum Width | Front: 700MM ／ Rear: 500MM |
Drum Diameter | Front: 520MM ／ Rear: 425MM |
Working Weight | 800 KG |
Gradeability | 30% |
Water Tank Volume | 20 L |
Product Size | 2050*900*1130 MM |
Walking Speed | 0-5 KM/H |
Static Line Load | 50N/75N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 20 KN |
Drive Form | Hydrostatic Transmission |
Vibration Form | Electromagnetic Clutch |
Engine Model | Changchai 180 ｜ Changfa 178F |
Engine Type | Water Cooled ｜ Air-cooled four-stroke |
Engine Power | 5.67 KW ｜ 4 KW |
Fuel Consumption | ≤280 g/kw.h ｜ ≤280 g/kw.h |
Shandong Luhongda Machinery Co., Ltd. is a road equipment manufacturer based in Jining, Shandong, China. The company builds hand-guided compact rollers and ride on twin drum machines in the same factory, so a buyer ordering the LHD-YL700Z is dealing with the producer of the machine.
For contractors and dealers sourcing ride on rollers, the factory supports OEM and customized specifications and can quote either the water-cooled Changchai 180 or the air-cooled Changfa 178F. Spare parts support is available for road roller maintenance after delivery.
What is the LHD-YL700Z used for? — It is a 700 mm ride on twin drum vibratory road roller for road repair and patching, trench reinstatement, kerb-side rolling, small paving contracts and soil or base course compaction — work where a seated operator and a compact twin drum machine fit better than a larger roller.
What are the main specifications of the LHD-YL700Z? — Drum width: front 700 mm, rear 500 mm. Drum diameter: front 520 mm, rear 425 mm. Working weight 800 kg, static line load 50N/75N/cm, vibration force 20 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 20 L, gradeability 30%, walking speed 0-5 km/h, product size 2050*900*1130 mm. Engine: 5.67 kW water-cooled Changchai 180 or 4 kW air-cooled Changfa 178F. The full list is in the specification table above.
Why are the front and rear drums different sizes? — The front drum is wider and larger in diameter for coverage on open surfaces, while the narrower rear drum follows it in confined areas such as kerb edges and patch edges. Both figures are taken from the manufacturer specification table above.
How do I get a quotation, shipment information and spare parts support? — Pricing, payment terms and shipping are quoted per order and per destination. Share your working conditions, target quantity and delivery port, and our sales team will confirm the configuration and terms. Spare parts support for road roller maintenance is also available on request.
