LHD-YLS600 is a 600 mm walk behind double drum vibratory road roller with twin vibratory drums and a 560 kg working weight for asphalt and granular layer compaction.
LHD-YLS600 Road Roller
LUHONGDA

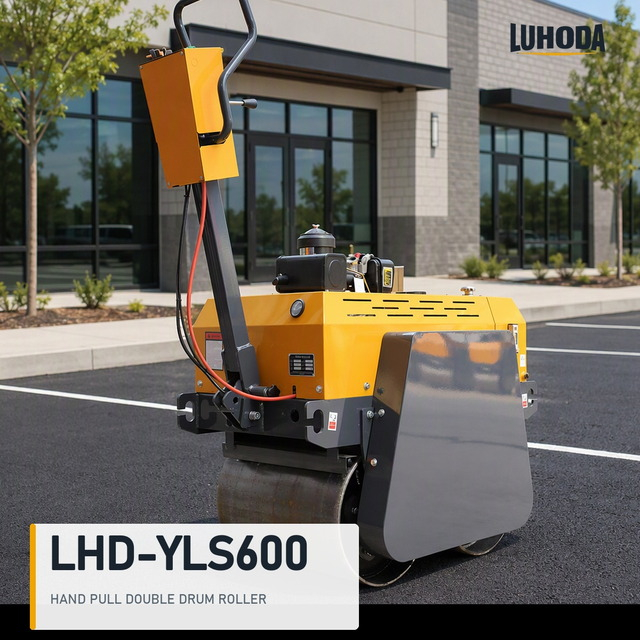

The LHD-YLS600 is a 600 mm walk behind double drum vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Two 600 mm wide, 425 mm diameter steel drums and a 560 kg working weight cover a broader face per pass than a single drum machine of the same width.
A 5.67 kW Changchai 180 water-cooled engine is offered alongside a 4 kW air-cooled Honda or Changfa 178F, delivering 20 kN of vibration force at 70 Hz with a 0.5 mm nominal amplitude. Drive is hydraulic from a station unit and vibration is engaged by an automatic clutch.
A 45N/50N/cm static line load and a 13 L water tank suit asphalt lanes and granular layers.

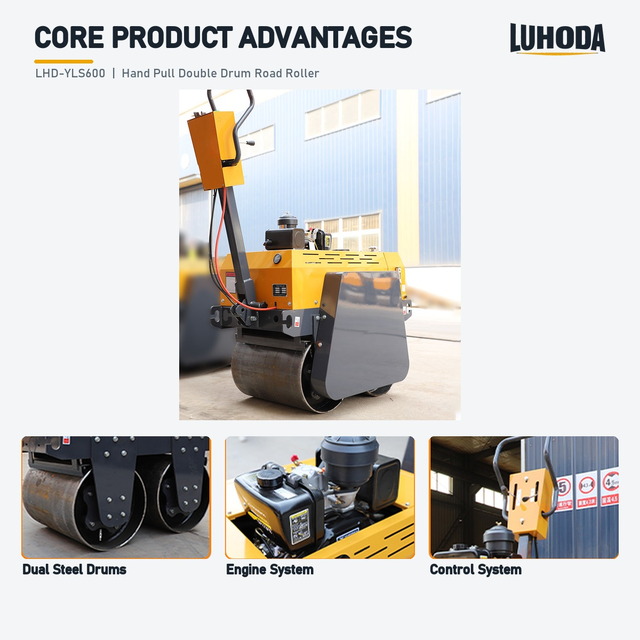

Two 600 mm wide, 425 mm diameter drums with a static line load of 45N/50N/cm. Running two vibratory drums instead of one covers more of the lane on each pass and leaves a more uniform finish across the full rolling width.
The water-cooled Changchai 180 is rated 5.67 kW and is the higher-output of the two engine options, which suits sustained rolling work. A 4 kW air-cooled Honda or Changfa 178F is also available where simpler servicing matters more; fuel consumption is ≤280 g/kw.h on both.
Drive comes from a hydraulic station and the vibratory action is engaged by an automatic clutch. The result is a 20 kN vibration force at 70 Hz that can be switched off while the machine keeps travelling.
The machine is hand guided with electric start at a 0-4 km/h working speed. Two vibratory drums at 560 kg still allow one operator to control it in tight areas and move it between short sections without support equipment.

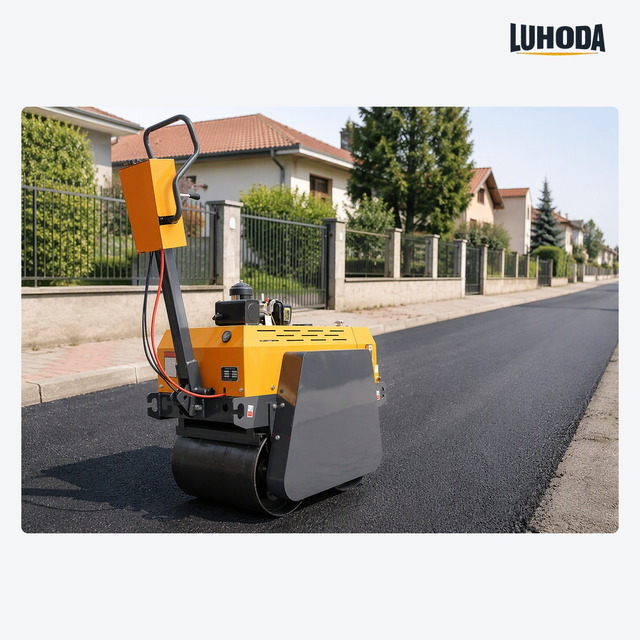

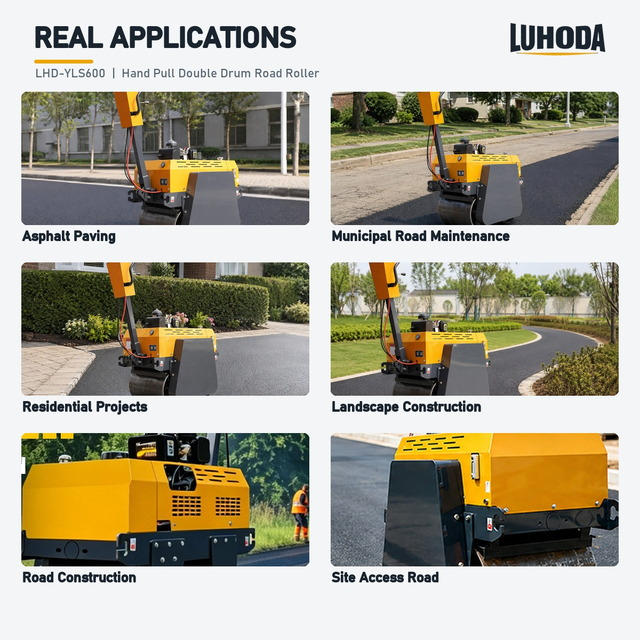

Asphalt lane compaction — rolling binder and surface layers on narrow roads and access ways.
Footpath reinstatement — closing narrow asphalt strips after utility and drainage work.
Trench backfill — compacting granular backfill in confined service trenches.
Kerb-side rolling — finishing the strip along kerbs, channels and structures.
Road base work — compacting granular sub-base and fill on small road sections.
Yard and forecourt paving — driveways, compounds and parking areas.

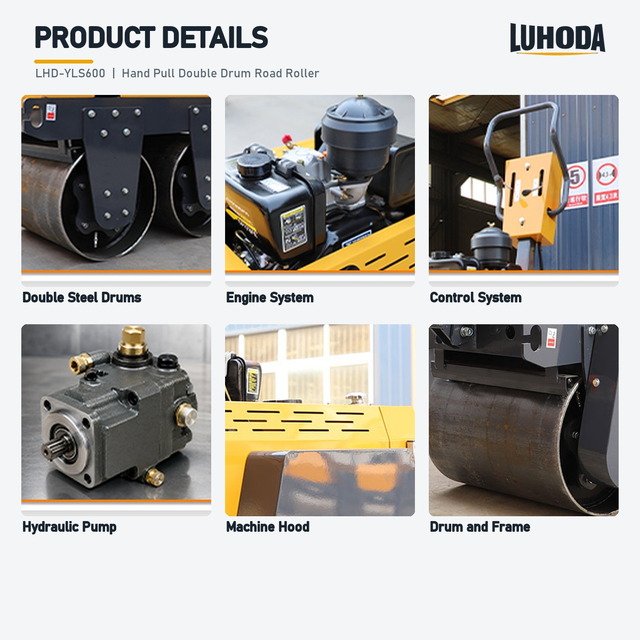

Twin Drums and Frame. Two 600 mm wide, 425 mm diameter steel drums carry a 45N/50N/cm static line load inside a steel frame with a 560 kg working weight. A 13 L water tank supplies the drum spray for asphalt work.
Engine and Drive. Two engine options — a 5.67 kW water-cooled Changchai 180, or a 4 kW air-cooled Honda / Changfa 178F — both with fuel consumption of ≤280 g/kw.h. Drive is hydraulic from a station unit and vibration is engaged by an automatic clutch.
Operator Control. A hand-guided handle with electric start manages travel and vibration, with 0-4 km/h working speed and 30% gradeability. Transport dimensions are 1415*865*1290 mm.
Item | Specification |
|---|---|
Model | LHD-YLS600 |
Drum Width | 600 MM * 2 |
Drum Diameter | 425 MM * 2 |
Working Weight | 560 KG |
Gradeability | 30% |
Water Tank Volume | 13 L |
Package Size | 1415*865*1290 MM |
Walking Speed | 0-4 KM/H |
Static Line Load | 45N/50N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 20 KN |
Drive Form | Hydraulic Station |
Vibration Form | Automatic Clutch |
Engine Model | Changchai 180 ｜ Honda ｜ Changfa 178F |
Engine Type | Water Cooled ｜ Air-cooled four-stroke |
Engine Power | 5.67 KW ｜ 4 KW |
Fuel Consumption | ≤280 g/kw.h ｜ ≤280 g/kw.h |
Shandong Luhongda Machinery Co., Ltd. is a road equipment manufacturer based in Jining, Shandong, China. Its product range covers both single drum and twin drum walk-behind rollers, and the LHD-YLS600 is built in the company's own factory rather than bought in from third parties — so tandem roller buyers work directly with the producer.
For contractors, plant hire firms and dealers looking at tandem walk-behind rollers, the factory supports OEM and customized specifications, can quote both engine variants, and supplies spare parts for ongoing road roller maintenance.
What is the difference between the LHD-YLS600 and a single drum walk-behind roller? — The LHD-YLS600 runs two 600 mm vibratory drums at a 560 kg working weight, so each pass covers a wider face and leaves a more even finish. A single drum machine of the same drum width covers half the rolling width per pass.
What are the main specifications of the LHD-YLS600? — Drum width 600 mm × 2, drum diameter 425 mm × 2, working weight 560 kg, vibration force 20 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 13 L, gradeability 30%, walking speed 0-4 km/h, package size 1415*865*1290 mm. Engine: 5.67 kW Changchai 180 water-cooled, or 4 kW Honda / Changfa 178F air-cooled. The full list is in the specification table above.
Which engine should I choose for the LHD-YLS600? — The water-cooled Changchai 180 at 5.67 kW suits sustained rolling work, while the 4 kW air-cooled Honda or Changfa 178F has fewer service points. Both are listed in the specification table — tell us your working conditions and the factory can confirm which fits.
How do I get a quotation, shipment information and spare parts support? — Pricing, payment terms and shipping are quoted per order and per destination. Share your working conditions, target quantity and delivery port, and our sales team will confirm the configuration and terms. Spare parts support for road roller maintenance is also available on request.
Contact us with your working conditions, target quantity and destination port for the LHD-YLS600 double drum walk behind roller — engine choice, shipment and spare parts. Our sales team will confirm the details for your order.
