LHD-YL800S is an 800 mm ride on twin drum vibratory road roller with a 1200 kg working weight and 30 kN vibration force, for asphalt and soil compaction.

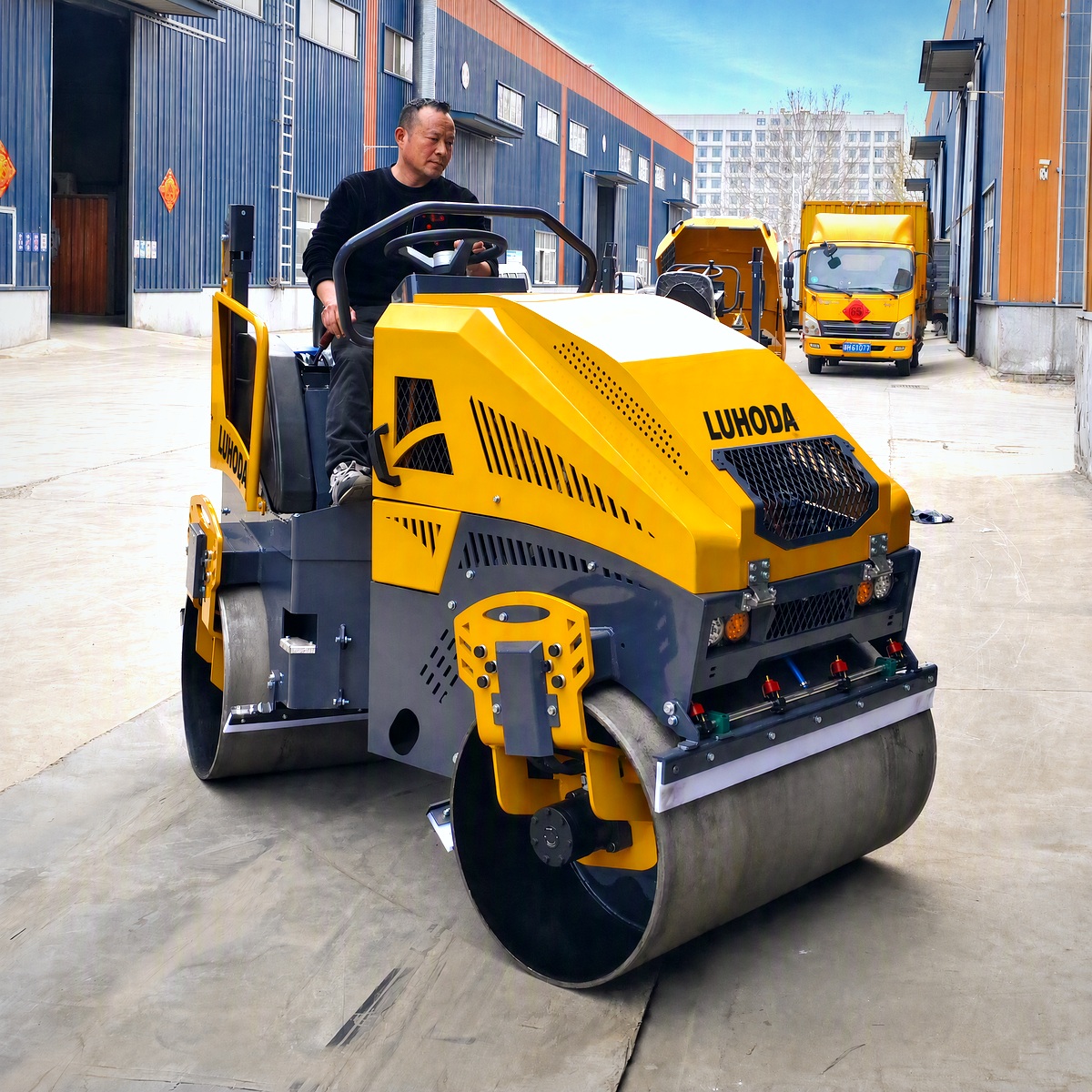

LHD-YL800S Road Roller
LUHONGDA
The LHD-YL800S is an 800 mm ride on twin drum vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Its two 800 mm wide, 530 mm diameter steel drums carry a 1200 kg working weight on a 60N/75N/cm static line load.
A water-cooled 8.8 kW Changchai L12 diesel is offered alongside a 6.6 kW air-cooled Changfa 186F, driving a 30 kN vibration force at 70 Hz with a 0.5 mm nominal amplitude. Drive is hydrostatic and vibration is engaged through an electromagnetic clutch.
The seated operator position suits longer passes than a hand-guided machine, and a 65 L water tank supplies the drum spray bar through asphalt work.
Twin 800 mm Steel Drums on a 1200 kg Working Weight
Two 800 mm wide, 530 mm diameter drums and a 60N/75N/cm static line load give a broad, stable working face on both asphalt and granular base layers, so fewer passes are needed to reach the target density.
Hydrostatic Transmission with Electromagnetic Clutch
Drive is hydrostatic and vibration engages through an electromagnetic clutch, producing a 30 kN vibration force at 70 Hz with a 0.5 mm nominal amplitude. Travel and vibration stay controlled when rolling joints, edges and thin lifts.
Changchai L12 Water-Cooled or Changfa 186F Diesel
The 8.8 kW water-cooled Changchai L12 and the 6.6 kW air-cooled Changfa 186F are both offered at ≤280 g/kw.h fuel consumption, so buyers can match the engine to local service and spare parts availability.
Ride On Platform with 65 L Water Tank
The seated operator position and 0-6 km/h working speed suit longer runs, while 30% gradeability keeps output steady on ramps. The 65 L water tank extends asphalt working time between refills.

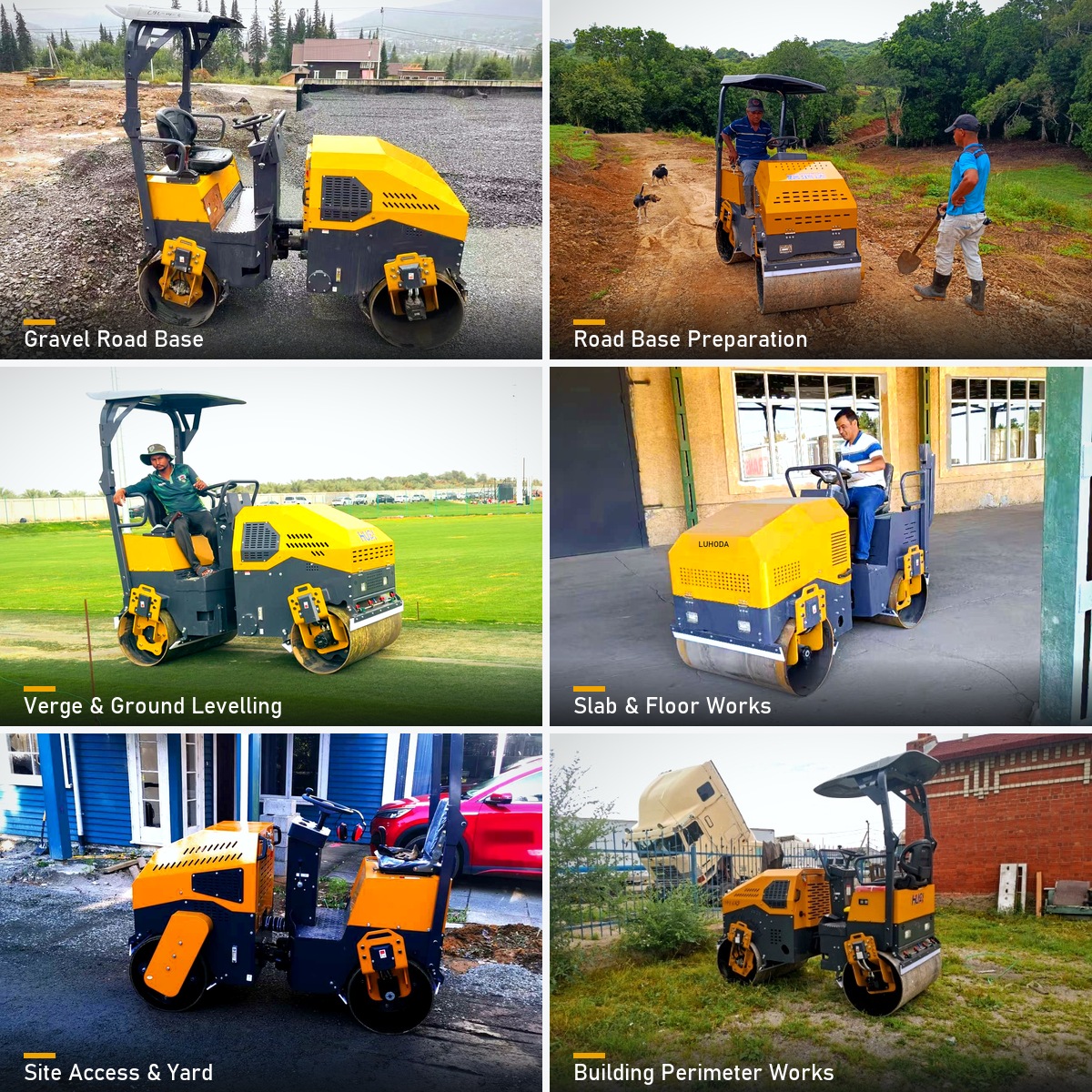

The LHD-YL800S is used where asphalt and granular layers need compaction with a machine compact enough for restricted sites:
Gravel road base — compacting gravel and granular base layers on new road builds.
Road base preparation — densifying base and sub-base before asphalt is laid.
Verge and ground levelling — levelling and compacting verges and open ground.
Slab and floor works — compacting fill and base beneath slabs and hardstandings.
Site access and yard — access roads, yards and parking areas.
Building perimeter works — perimeter strips and confined areas around structures.

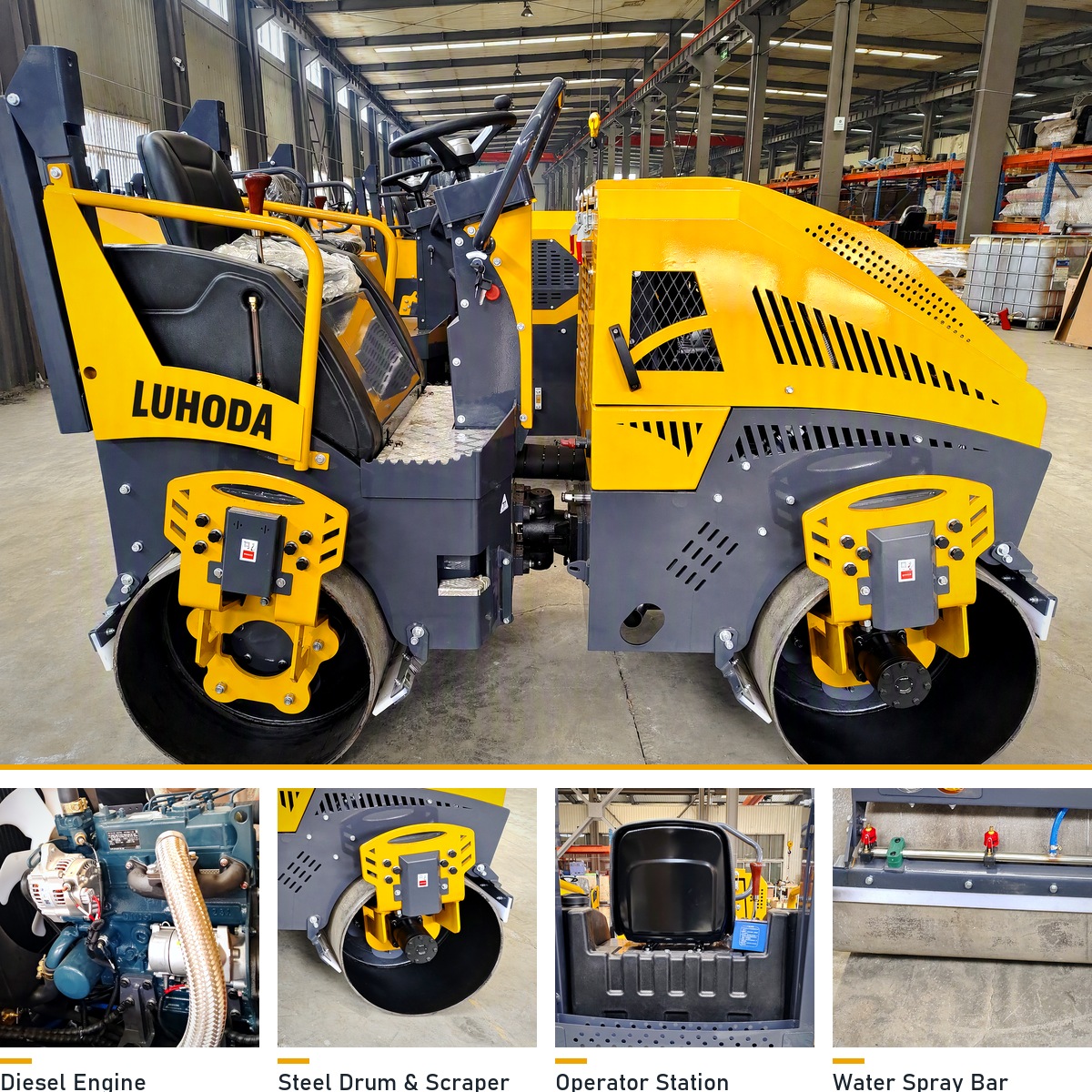

Twin steel drums. Two 800 mm wide, 530 mm diameter drums, each fitted with a scraper bar that keeps the drum face clean during asphalt work. A spray bar above the drums distributes water from the 65 L tank.
Diesel engine. A water-cooled Changchai L12 at 8.8 kW or an air-cooled Changfa 186F at 6.6 kW, both rated at ≤280 g/kw.h fuel consumption.
Hydrostatic drive and operator station. Hydrostatic transmission takes drive to the drums, and vibration engages through an electromagnetic clutch. The operator station is a ride on layout with electric start, with walking speed of 0-6 km/h and 30% gradeability.

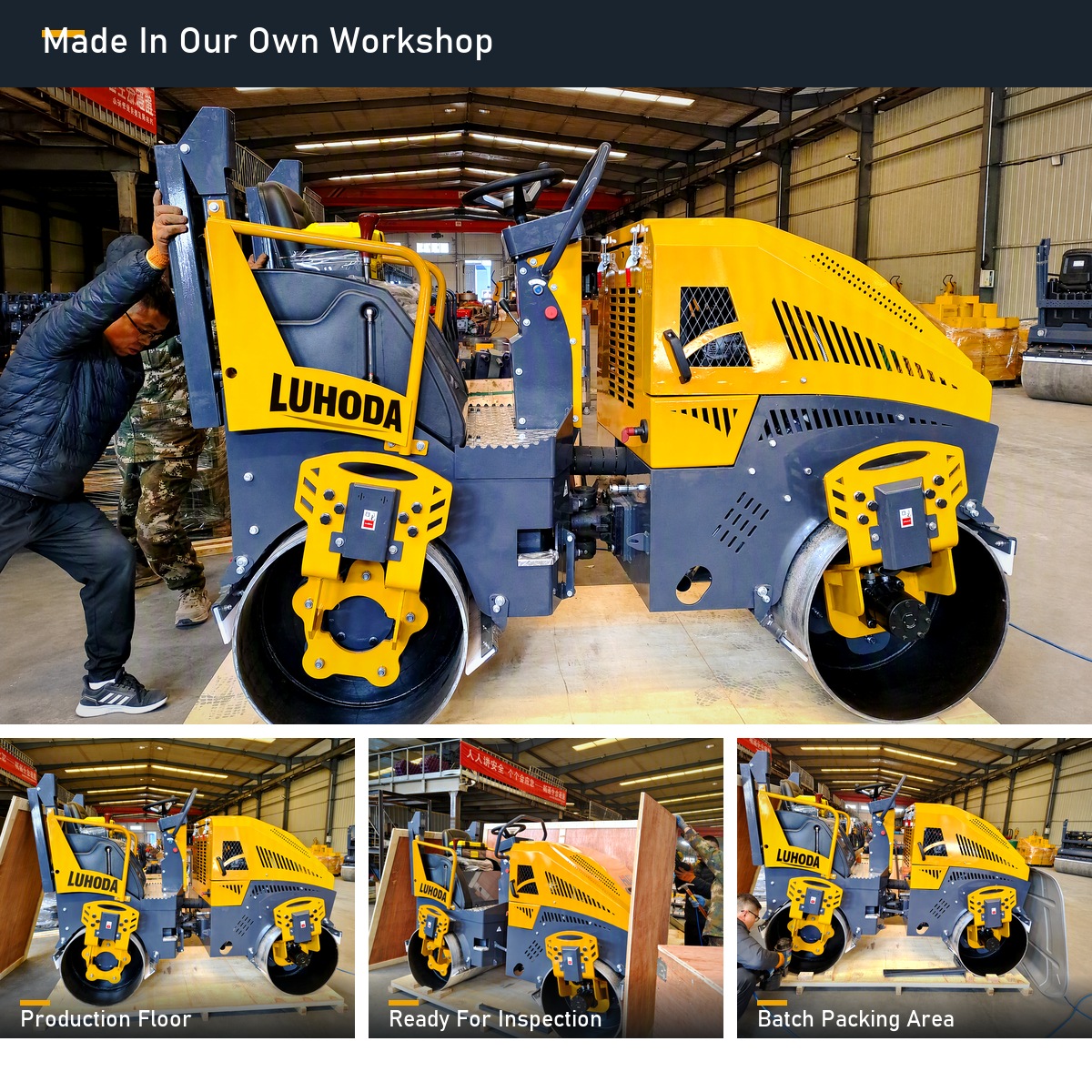

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company focuses on road engineering equipment and builds the LHD-YL800S ride on roller in its own factory, so buyers deal with the manufacturer rather than a trading intermediary.
For contractors, rental companies and dealers sourcing double drum road rollers, that means OEM support and customized configurations can be discussed at quotation stage, together with spare parts support for roller maintenance.
What is the LHD-YL800S used for?
It is an 800 mm ride on twin drum vibratory roller for compacting asphalt and granular layers — road base, gravel base, slab and floor works, site access roads and building perimeter strips.
What are the main specifications?
Drum width 800 mm × 2, drum diameter 530 mm × 2, working weight 1200 kg, vibration force 30 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 65 L, gradeability 30%, walking speed 0-6 km/h. Engines: Changchai L12 at 8.8 kW or Changfa 186F at 6.6 kW. The full list is in the table above.
Can the machine be supplied with a customized configuration?
Yes. Configuration and OEM requirements can be discussed at quotation stage. Send your working conditions and target quantity so the factory can confirm a suitable specification.
How do I get a quotation and spare parts support?
Share your target quantity, destination port and working conditions, and the sales team will confirm pricing and shipment. Spare parts support for roller maintenance is also available — tell us which parts you need.
Contact us with your working conditions, target quantity and destination port for LHD-YL800S ride on roller pricing, shipment and spare parts. Our sales team will confirm a suitable configuration and terms.
Item | Specification |
|---|---|
Drum Width | 800MM * 2 |
Drum Diameter | 530MM * 2 |
Working Weight | 1200 KG |
Gradeability | 30% |
Water Tank Volume | 65 L |
Product Size | 2100*940*1500 MM |
Walking Speed | 0-6 KM/H |
Static Line Load | 60N/75N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 30 KN |
Drive Form | Hydrostatic Transmission |
Vibration Form | Electromagnetic Clutch |
Engine Model | Changchai L12 / Changfa 186F |
Engine Type | Diesel, Water Cooled / Air-Cooled Four-Stroke |
Engine Power | 8.8 KW / 6.6 KW |
Fuel Consumption | ≤280 g/kw.h |
