LHD-YL600 Road Roller
LUHONGDA

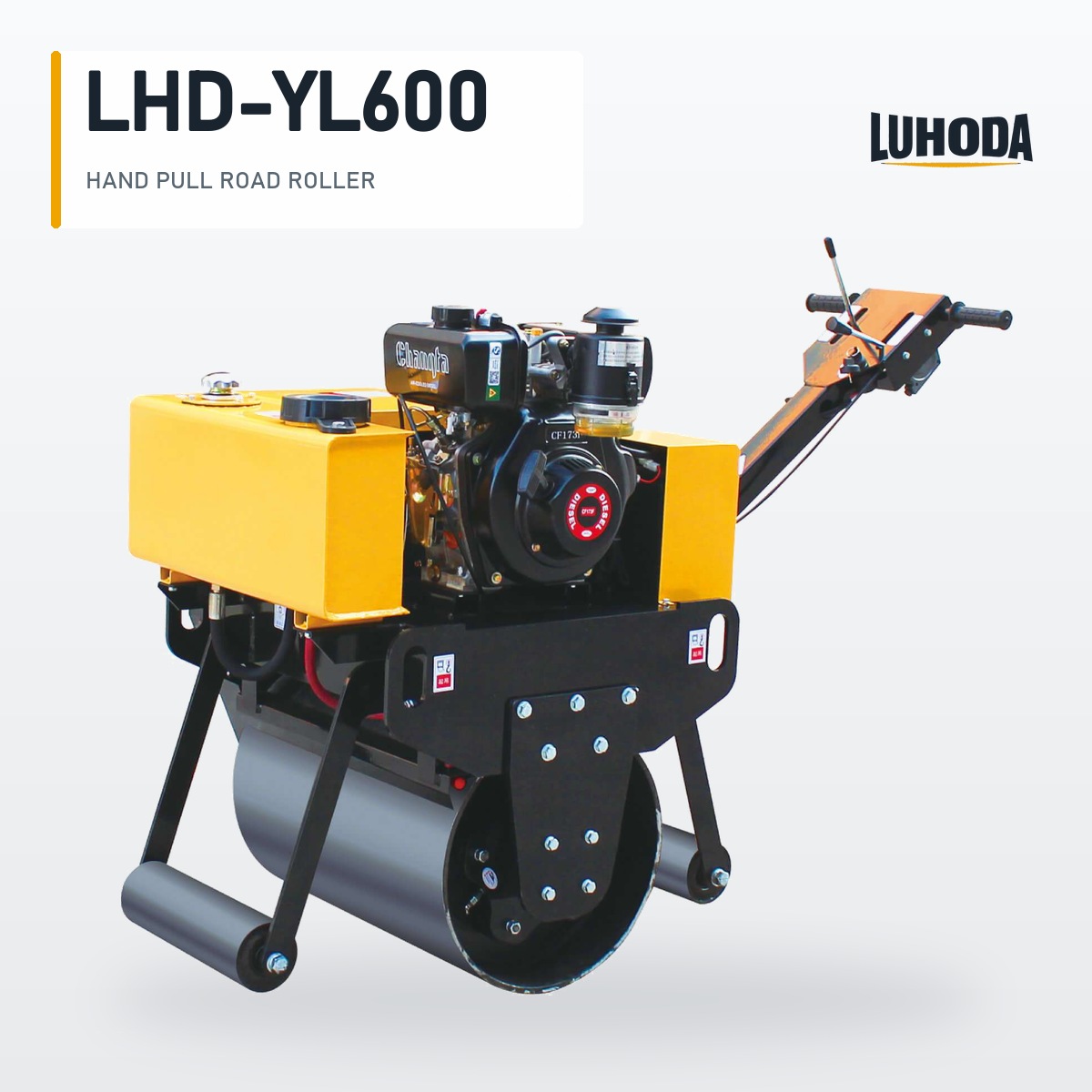

The LHD-YL600 is a 600 mm walk behind single drum vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Its 600 mm wide, 425 mm diameter steel drum and 330 kg working weight suit small compaction jobs where a ride-on roller cannot reach.
A 4 kW Honda GX160 or Changchai / Changfa 173F air-cooled 4-stroke engine delivers a 15 kN vibration force at 70 Hz with a 0.5 mm nominal amplitude. Drive comes from a hydraulic station with automatic clutch vibration control, and a 10 L water tank feeds the drum for asphalt work.
Hand guided with electric start, this walk behind road roller works in trenches, footpaths and repair paving.
One 600 mm wide, 425 mm diameter steel drum with a static line load of 45N/cm. The narrow drum lets the operator compact close to kerbs, walls and trench edges where wider rollers cannot follow.
Both engine options are air-cooled 4-stroke units rated 4 kW, with fuel consumption of ≤310 g/kw.h. Air cooling removes the radiator and coolant service, which keeps maintenance simple on remote sites.
Drive is taken from a hydraulic station and vibration is engaged through an automatic clutch. This gives a smooth start and lets the operator stop the vibratory action without stopping travel.
The machine is hand guided with electric start and a 0-4 km/h working speed, so one operator can control it in confined areas and load it onto a small trailer without additional handling equipment.

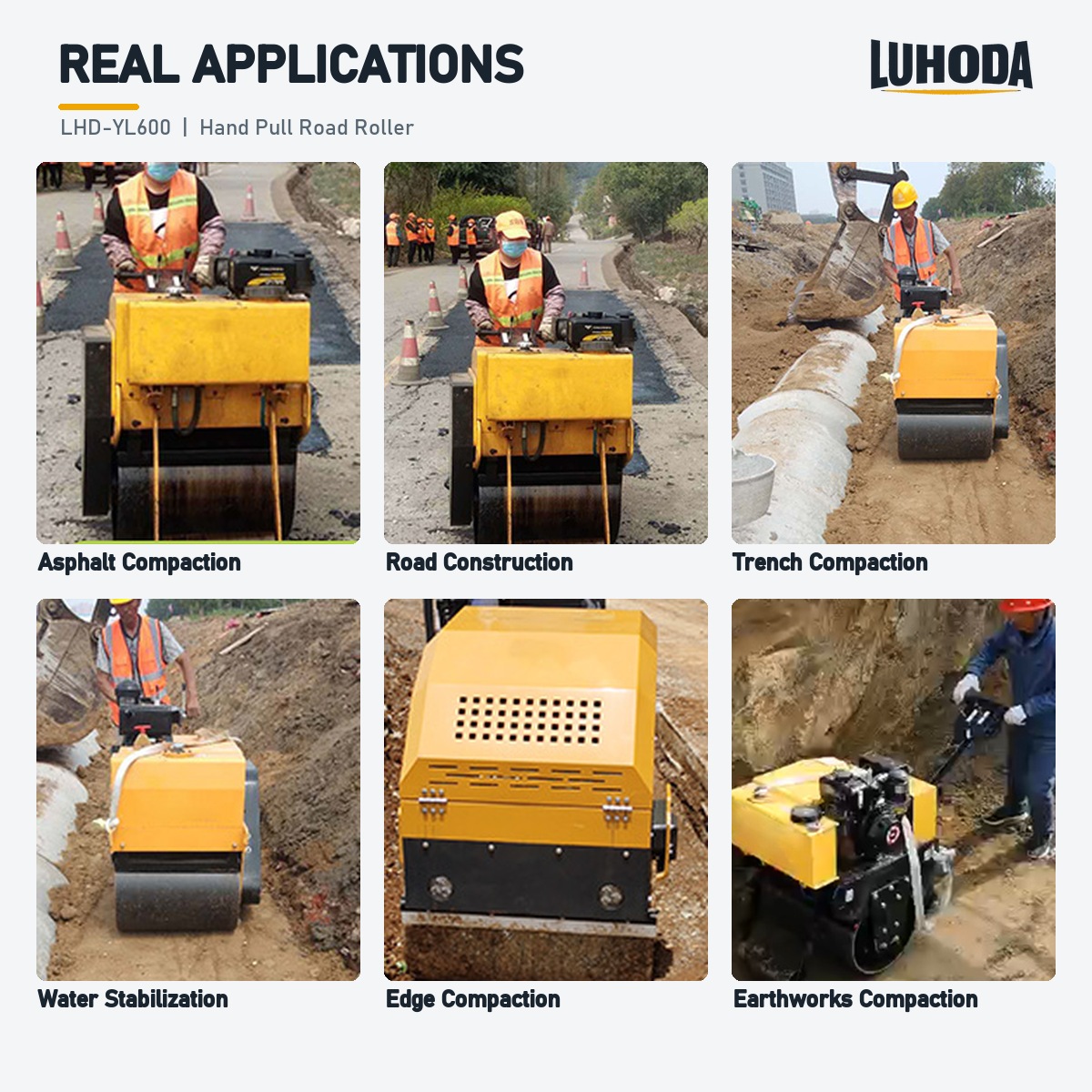

Footpath and pavement repair — reinstating narrow asphalt strips after utility work.
Trench and utility backfill — compacting granular backfill in confined trenches.
Kerb and edge work — rolling the strip beside kerbs, walls and obstacles.

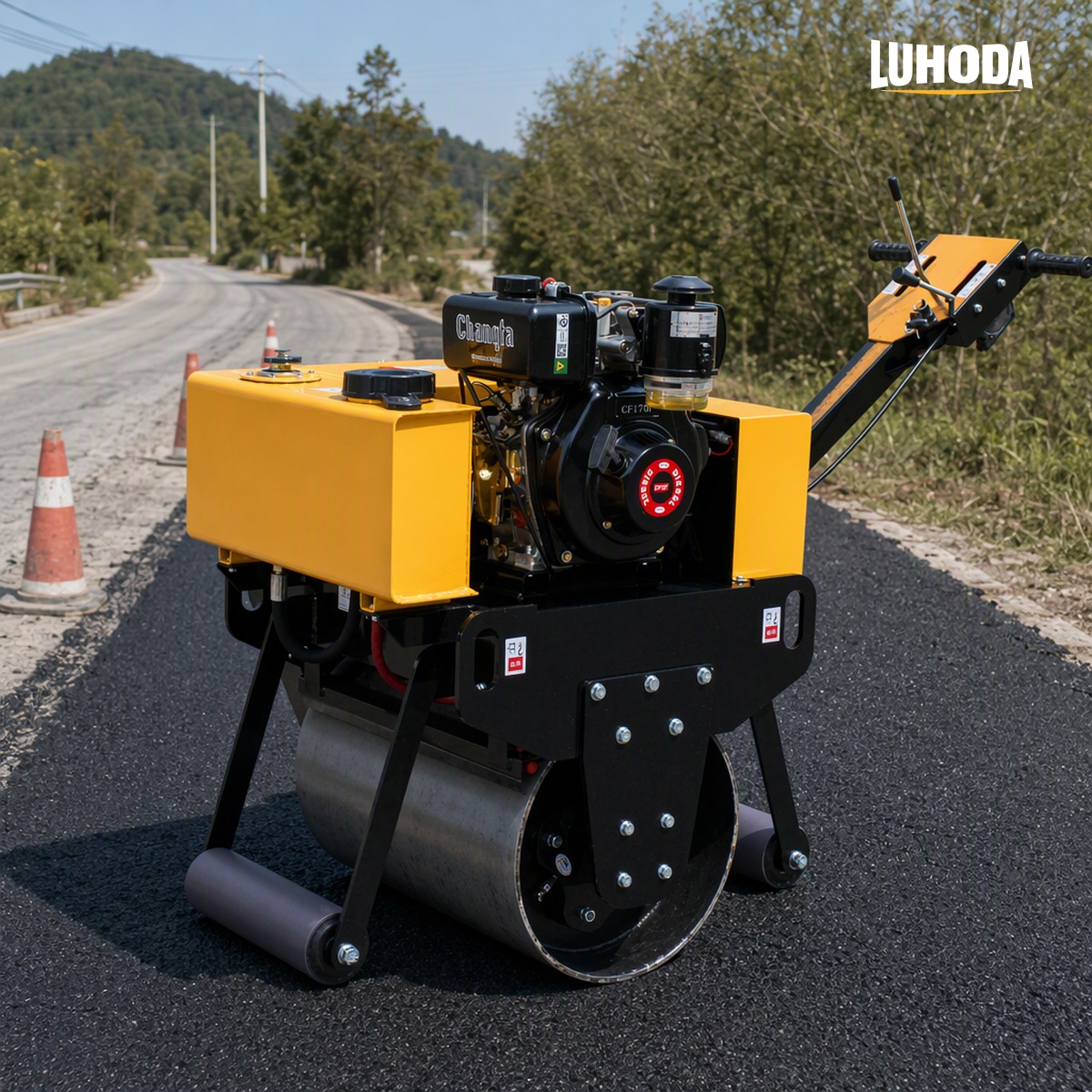

Small asphalt paving — surface compaction on driveways, yards and parking bays.
Soil and base compaction — granular sub-base and fill in small areas.
Landscape and yard projects — pathways, patios and small hardstanding.

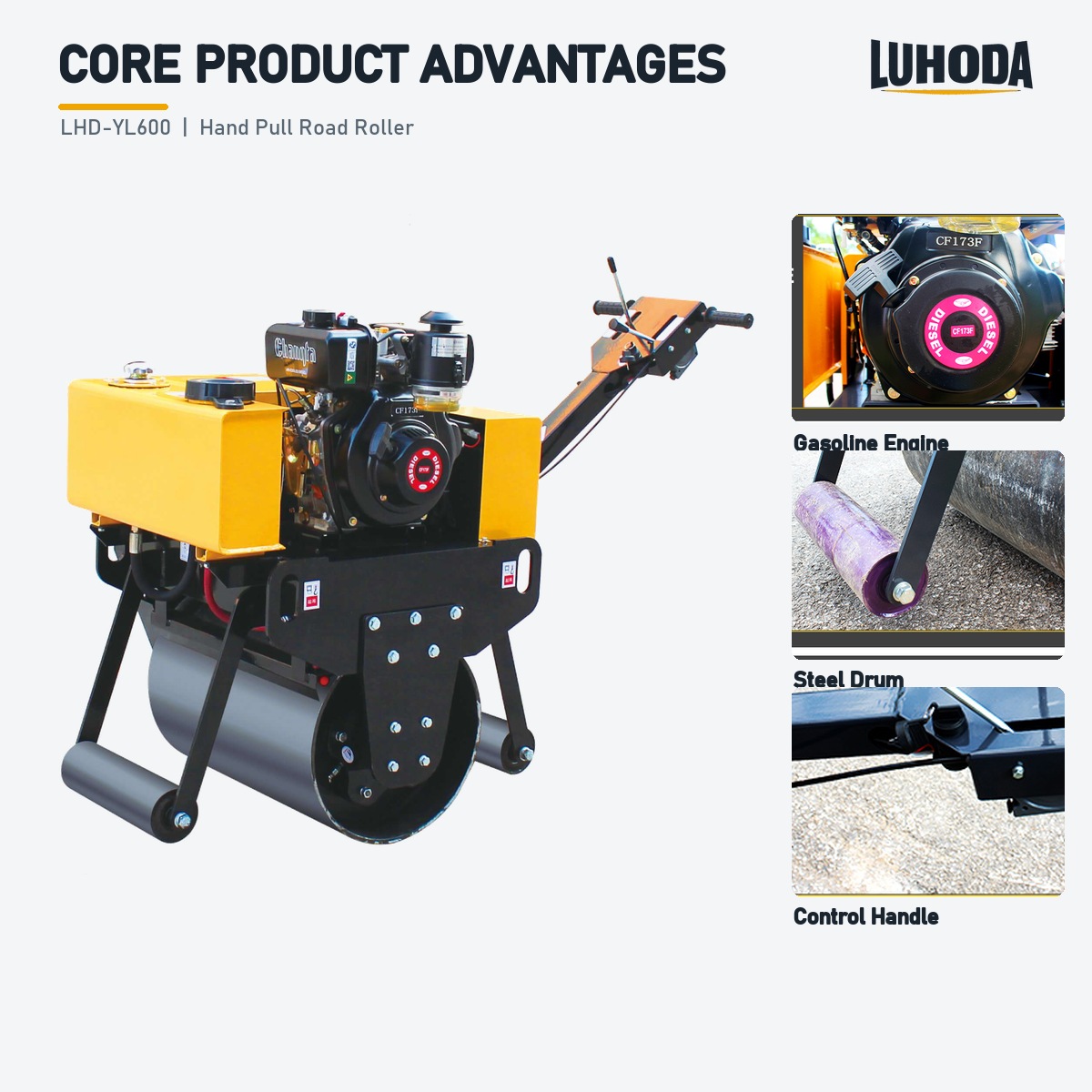

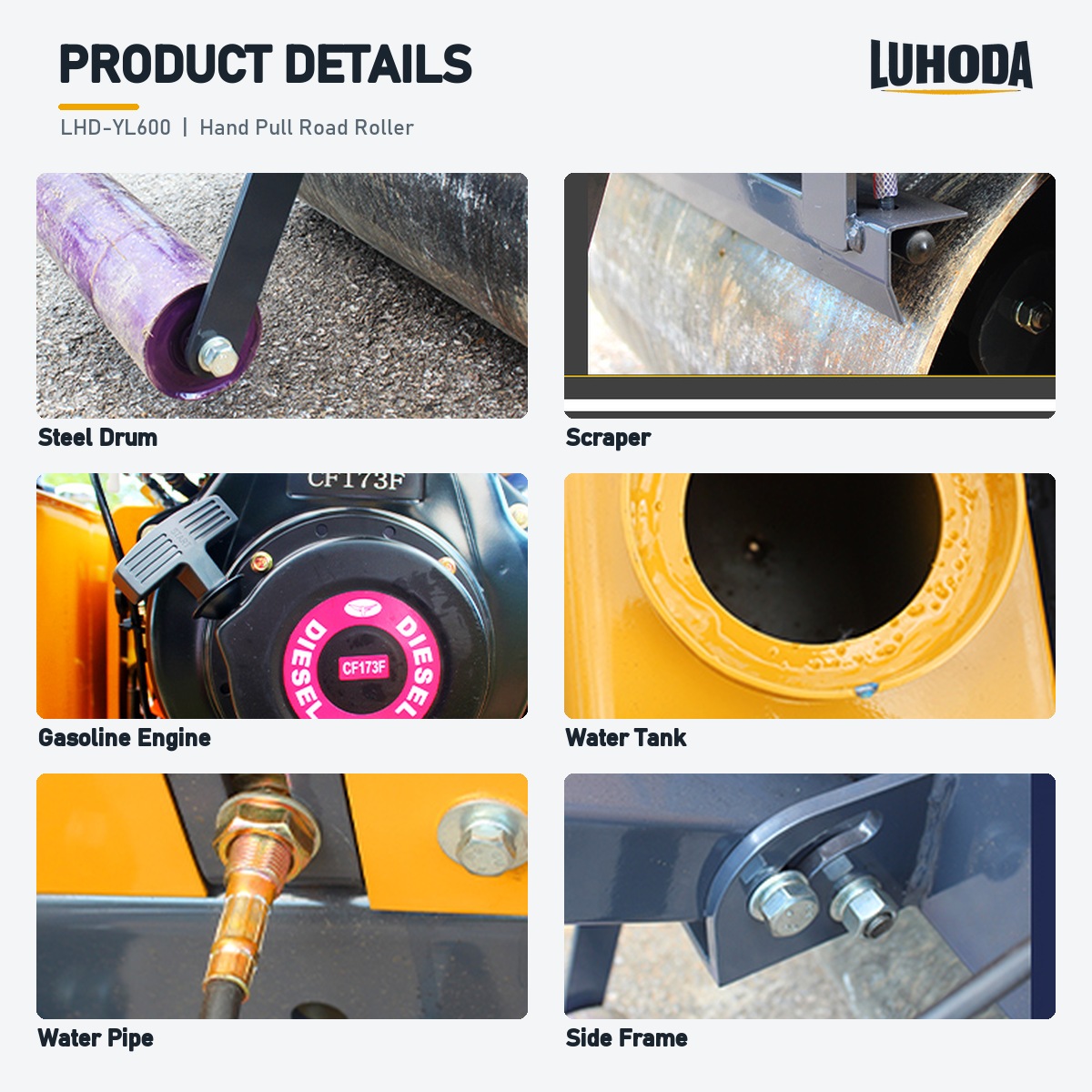

Steel Drum and Frame. The 600 mm drum is carried in a steel frame with a 330 kg working weight, which keeps the machine stable during vibration. A 10 L water tank feeds the drum for asphalt work.
Engine and Drive. Two air-cooled 4-stroke engine options — Honda GX160 or Changchai / Changfa 173F — both rated 4 kW. Drive is provided by a hydraulic station, and vibration is engaged by an automatic clutch.
Operator Control. A hand-guided handle with electric start controls travel and vibration, with a working speed of 0-4 km/h and 30% gradeability. Dimensions are 1000*780*1350 mm for transport.
Item | Specification |
|---|---|
Model | LHD-YL600 |
Drum Width | 600 MM |
Drum Diameter | 425 MM |
Working Weight | 330 KG |
Gradeability | 30% |
Water Tank Volume | 10 L |
Product Size | 1000*780*1350 MM |
Walking Speed | 0-4 KM/H |
Static Line Load | 45N/cm |
Nominal Amplitude | 0.5 MM |
Vibration Frequency | 70 Hz |
Vibration Force | 15 KN |
Drive Form | Hydraulic Station |
Vibration Form | Automatic Clutch |
Engine Model | Honda GX160 ｜ Changchai, Changfa 173F |
Engine Type | Air-cooled 4-stroke ｜ Air-cooled 4-stroke |
Engine Power | 4 KW ｜ 4 KW |
Fuel Consumption | ≤310 g/kw.h ｜ ≤310 g/kw.h |
Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company focuses on road engineering equipment and builds the LHD-YL600 in its own factory, so buyers deal with the manufacturer rather than a trading intermediary.
For contractors, tool hire companies and dealers sourcing walk behind rollers, that means OEM support and customized configurations can be discussed at quotation stage, together with spare parts support for road roller maintenance.
What is the LHD-YL600 used for? — It is a 600 mm walk behind single drum vibratory roller for small asphalt and soil compaction — footpath and pavement repair, trench backfill, kerb and edge work, small paving jobs and yard projects where a ride-on roller cannot reach.
What are the main specifications of the LHD-YL600? — Drum width 600 mm, drum diameter 425 mm, working weight 330 kg, vibration force 15 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 10 L, gradeability 30%, walking speed 0-4 km/h, product size 1000*780*1350 mm. Engine: Honda GX160 or Changchai / Changfa 173F, 4 kW. The complete list is in the specification table above.
Can the LHD-YL600 be supplied with a different engine or configuration? — Both the Honda GX160 and the Changchai / Changfa 173F versions are available. Other configuration and OEM requirements can be discussed at quotation stage — send your working conditions and target quantity so the factory can confirm a suitable specification.
How do I get a quotation, shipment information and spare parts support? — Pricing, payment terms and shipping are quoted per order and per destination. Share your working conditions, target quantity and delivery port, and our sales team will confirm the configuration and terms. Spare parts support for road roller maintenance is also available on request.
Contact us with your working conditions, target quantity and destination port for the LHD-YL600 walk behind road roller — configuration, shipment and spare parts. Our sales team will confirm the details for your order.
