Product Overview

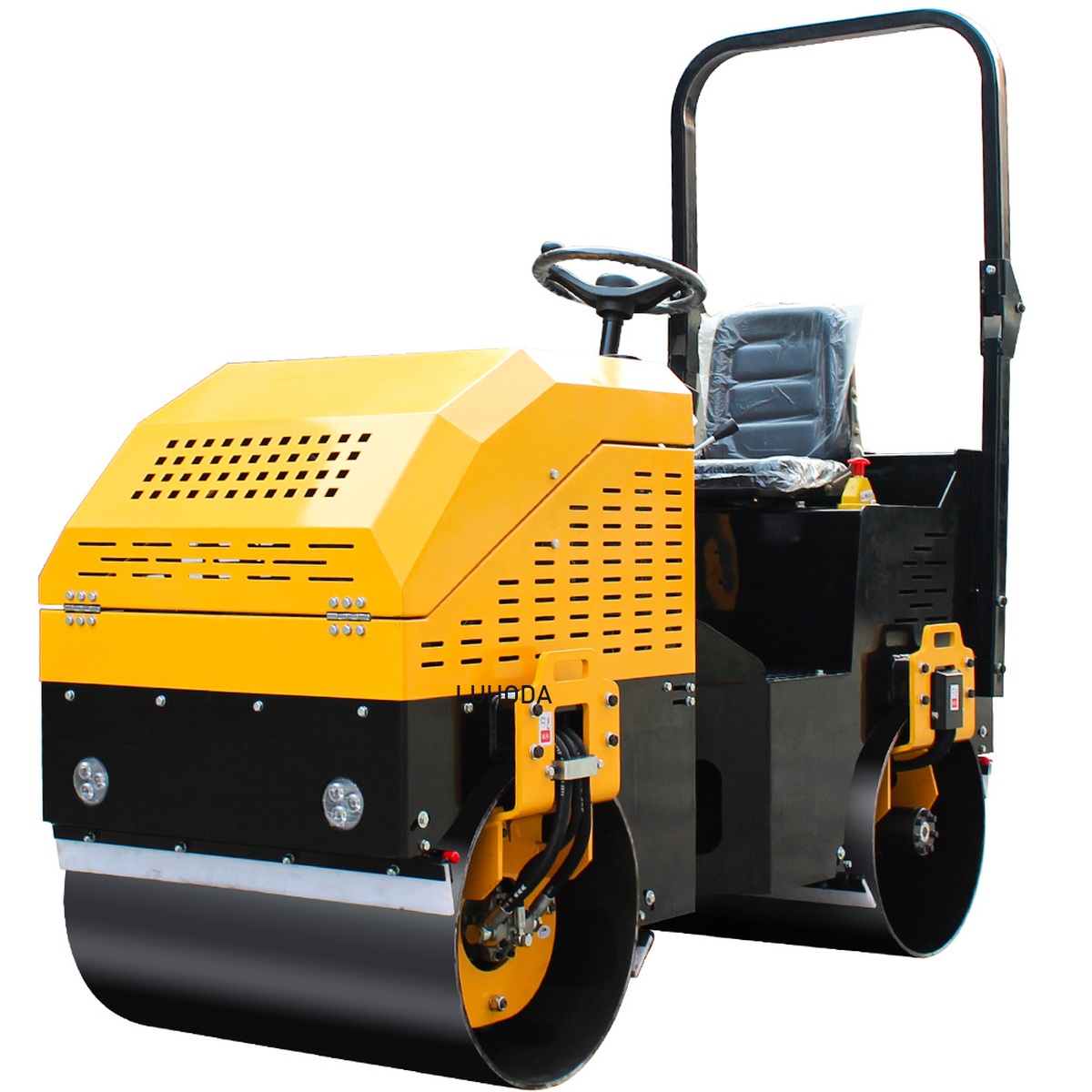

The LHD-YL800Q is an 800 mm ride on tandem vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Two 800 mm wide, 530 mm diameter steel drums carry a 1500 kg working weight on a 60N/75N/cm static line load.

An air-cooled Changchai 192F diesel delivers 8.2 kW at ≤300 g/kw.h, driving a 30 kN vibration force at 70 Hz with 0.5 mm nominal amplitude. Drive is hydrostatic and vibration runs through a Danfoss motor.

The 55 L water tank feeds the drum spray bar through asphalt work, and 0-6 km/h working speed with 30% gradeability covers base, verge and yard compaction.

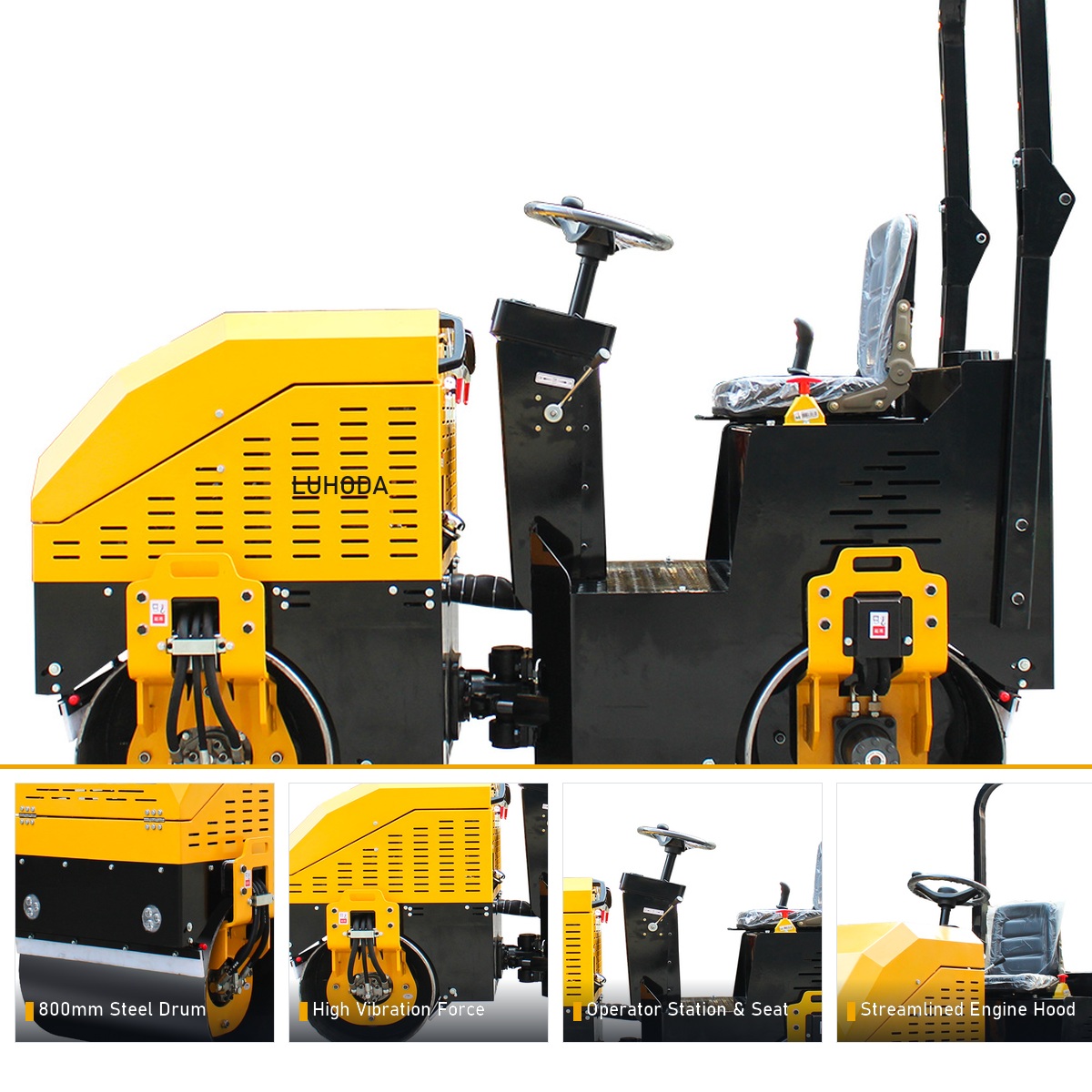

Key Features

Twin 800 mm Steel Drums, 1500 kg Working Weight

Two 800 mm wide drums at 530 mm diameter with a 60N/75N/cm static line load give a broad working face across both asphalt and granular layers, so the target density comes up in fewer passes.

30 kN at 70 Hz with Danfoss Vibration Motor

Vibration runs through a Danfoss motor at 70 Hz and 0.5 mm nominal amplitude, producing 30 kN of force. Output stays consistent across long shifts because the vibration circuit is hydraulically driven rather than mechanically engaged.

Hydrostatic Transmission

Hydrostatic drive keeps travel smooth at 0-6 km/h, which matters when rolling thin lifts, joints and edges where sudden movement marks the surface.

Changchai 192F Air-Cooled Diesel

The 8.2 kW Changchai 192F is air cooled, so there is no radiator, coolant or water pump to service. That suits sites where maintenance access is limited and dust is constant.

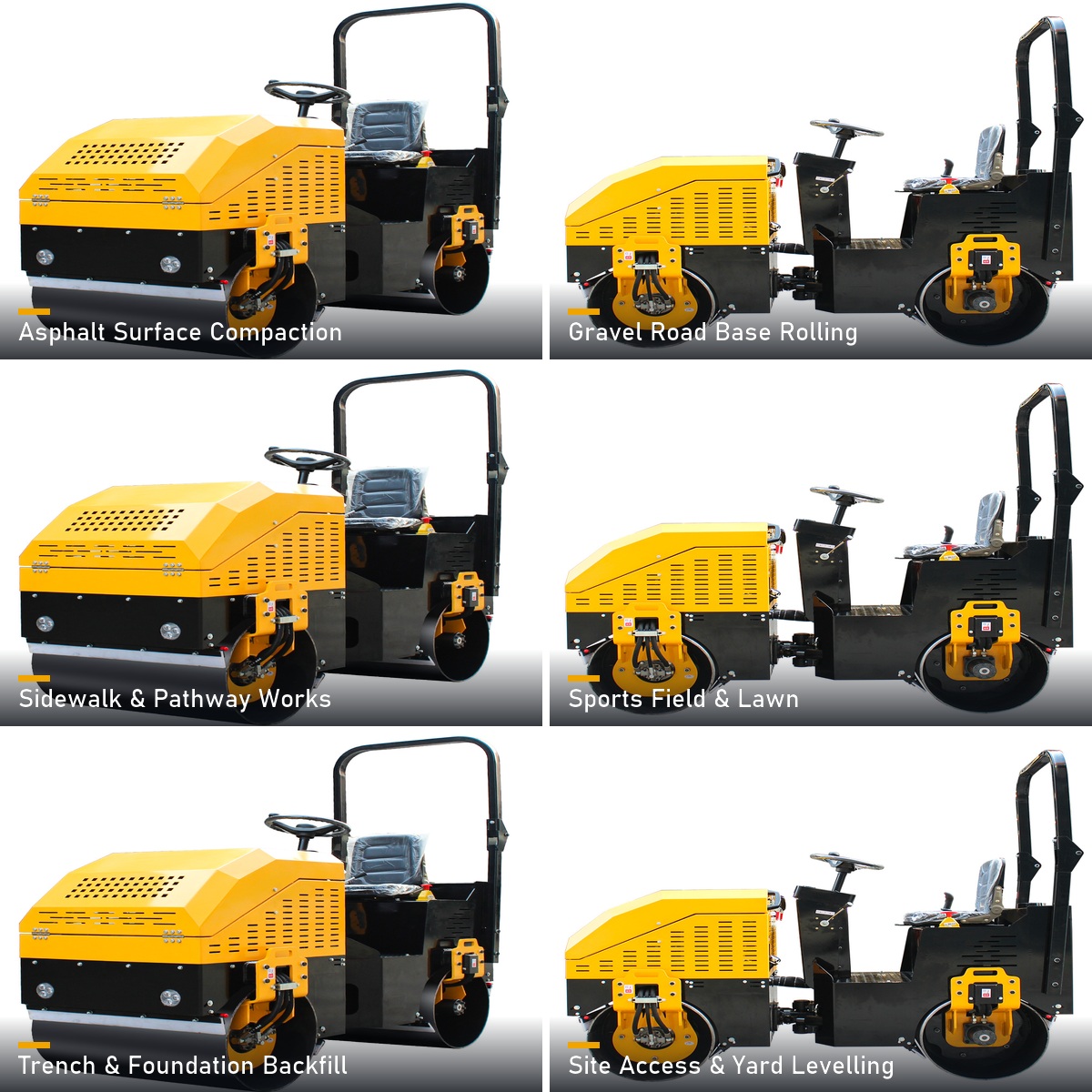

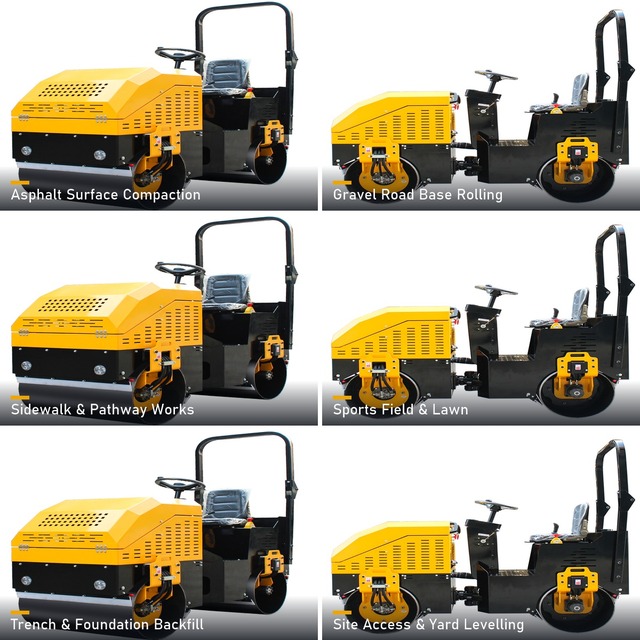

Applications

Asphalt compaction — base course, binder and wearing course on roads, driveways and car parks.

Soil compaction — granular base and sub-base for pavements, slabs and hardstandings.

Road construction — new build and widening where a compact tandem roller is needed.

Parking lot construction — car parks, forecourts and access lanes.

Foundation work — backfill and base layers around buildings.

Rental fleets — a 1500 kg ride on roller that one operator can move and run.

Product Details

Drums and water system. Two 800 mm × 530 mm steel drums with scraper bars, fed by a spray bar from the 55 L tank.

Vibration. Hydraulic vibration through a Danfoss motor: 30 kN force at 70 Hz, 0.5 mm nominal amplitude.

Driveline. Air-cooled Changchai 192F diesel, 8.2 kW, ≤300 g/kw.h, hydrostatic transmission, 0-6 km/h, 30% gradeability.

Dimensions. 2100 × 940 × 1500 mm overall, 1500 kg working weight.

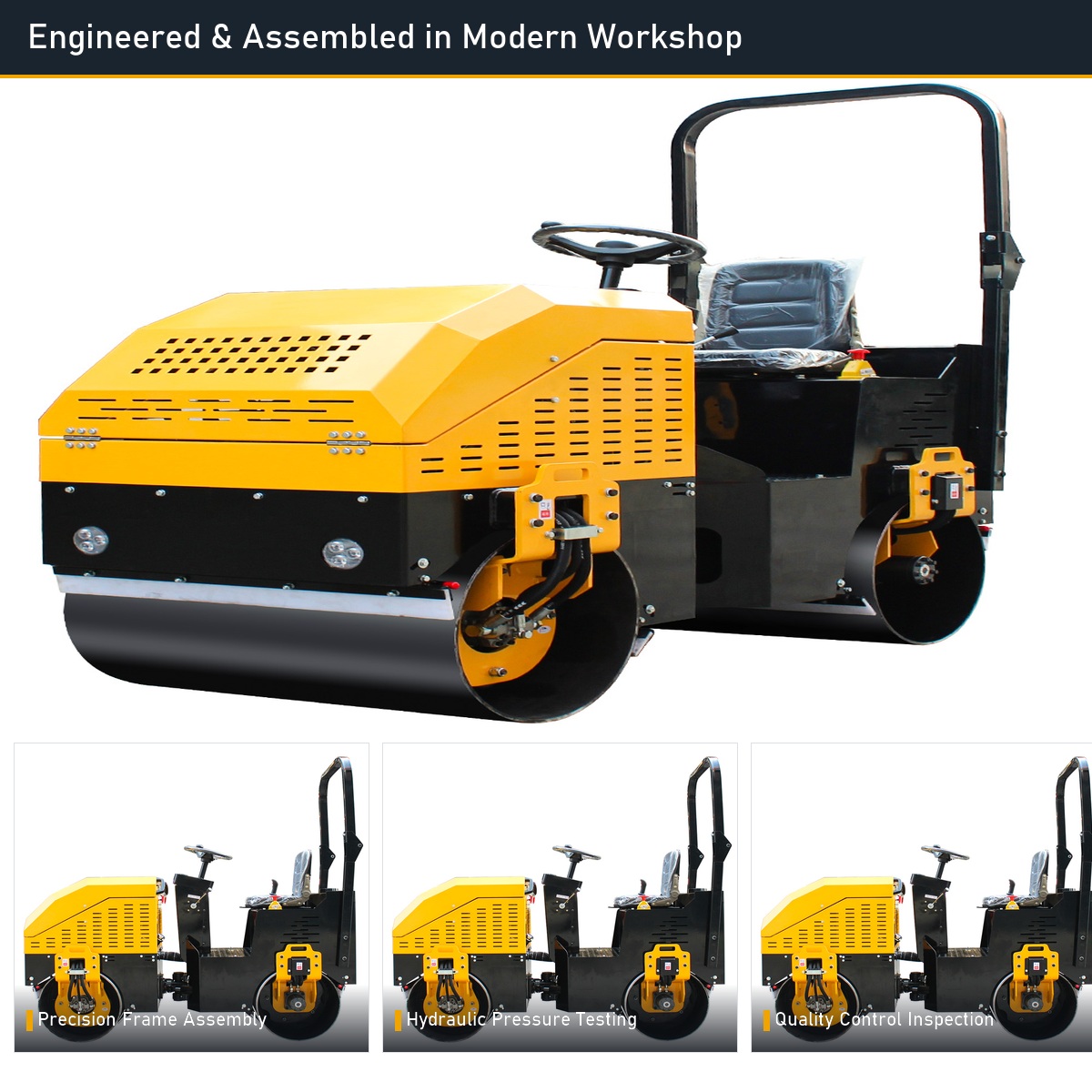

Why Choose Luhongda

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the diesel engine.

Buyer Questions

What is the LHD-YL800Q used for?

It is an 800 mm ride on tandem vibratory roller for asphalt and granular base compaction — roads, car parks, driveways, verges and foundation backfill.

What are the main specifications?

Drum width 800 mm × 2, drum diameter 530 mm × 2, working weight 1500 kg, vibration force 30 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 55 L, gradeability 30%, walking speed 0-6 km/h, Changchai 192F 8.2 kW air-cooled diesel. Full list in the table above.

Is the engine air cooled or water cooled?

Air cooled. The Changchai 192F is a four-stroke air-cooled diesel, so there is no radiator or coolant circuit to maintain.

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL800Q tandem roller pricing and shipment.

Technical Specifications
