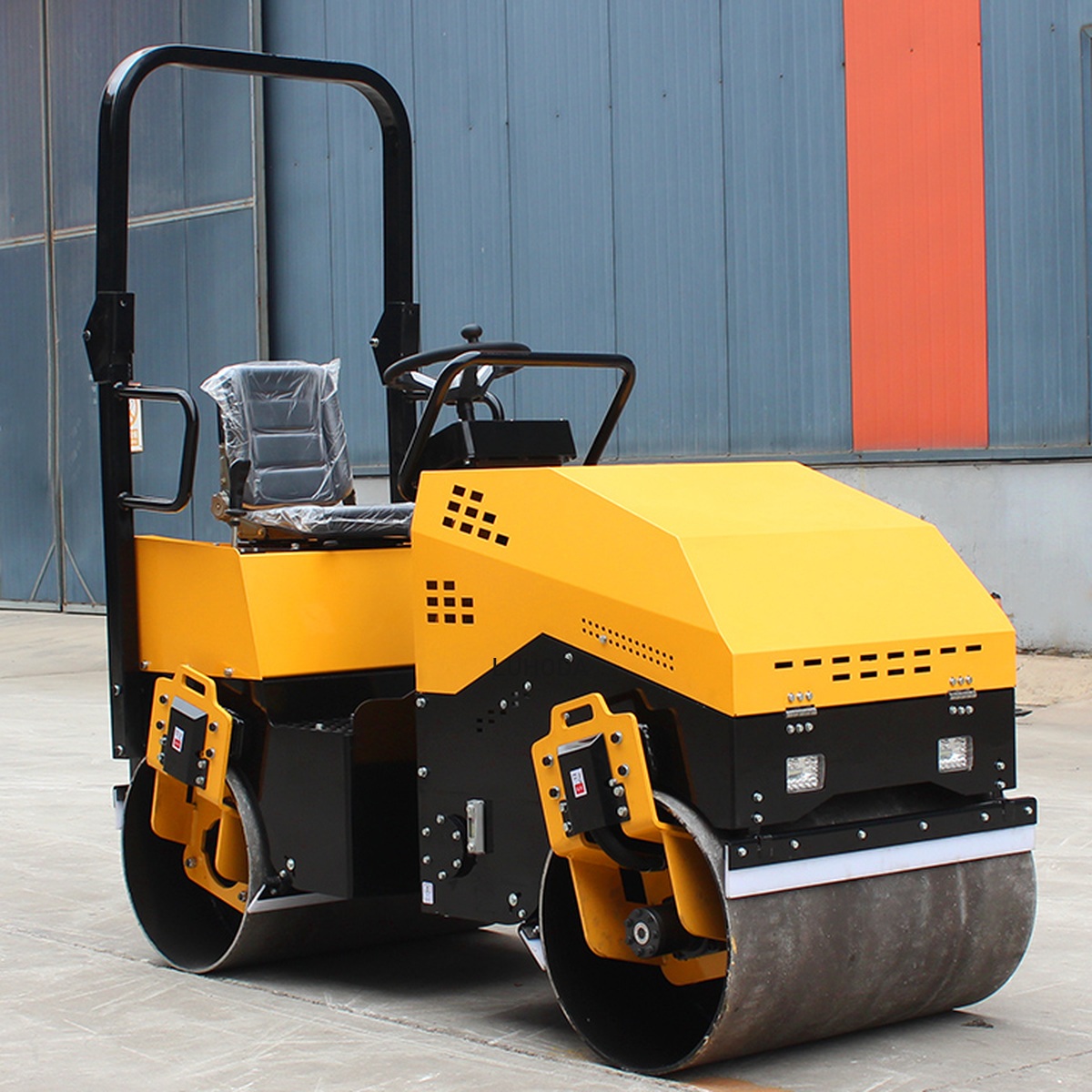

Product Overview

The LHD-YL900 is a 900 mm ride on tandem vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Its two 900 mm wide, 560 mm diameter steel drums are the widest in the 1500 kg class, carrying a 70N/75N/cm static line load.

A water-cooled Changchai L12 diesel delivers 8.8 kW at ≤250 g/kw.h, driving 35 kN of vibration force at 70 Hz with 0.5 mm nominal amplitude. Drive is hydrostatic and vibration is hydraulic.

A 70 L water tank feeds the spray bar, 35% gradeability handles ramps, and the 2270 × 1010 × 1650 mm footprint stays narrow enough for lane-width work.

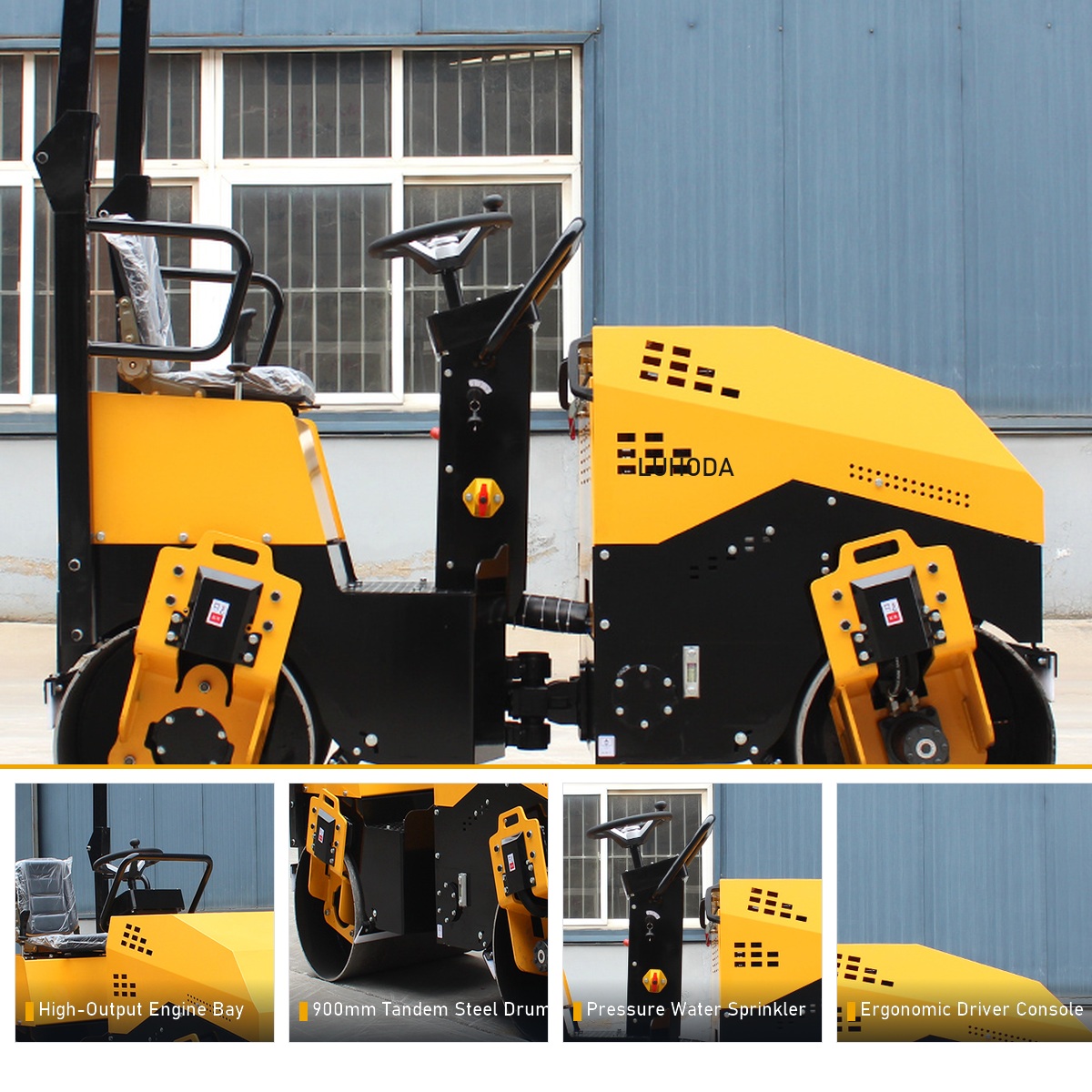

Key Features

900 mm Drums — the Widest in the 1500 kg Class

Two 900 mm wide drums at 560 mm diameter cover more ground per pass than an 800 mm machine. On long road runs that is fewer passes for the same area, and on lane work the drum still fits inside a standard carriageway width.

35 kN Vibration Force at 70 Hz

The highest vibration force in this roller series at 1500 kg working weight. Combined with a 70N/75N/cm static line load, it compacts thicker lifts than a lighter tandem without extra passes.

8.8 kW Changchai L12, Water Cooled

The L12 is water cooled and rated 8.8 kW at ≤250 g/kw.h — the lowest fuel consumption per kW in this series. Water cooling holds power steady through long shifts in hot climates.

70 L Water Tank and 35% Gradeability

A 70 L tank gives the longest asphalt working time between refills in this series, and 35% gradeability keeps output steady on ramps and embankments.

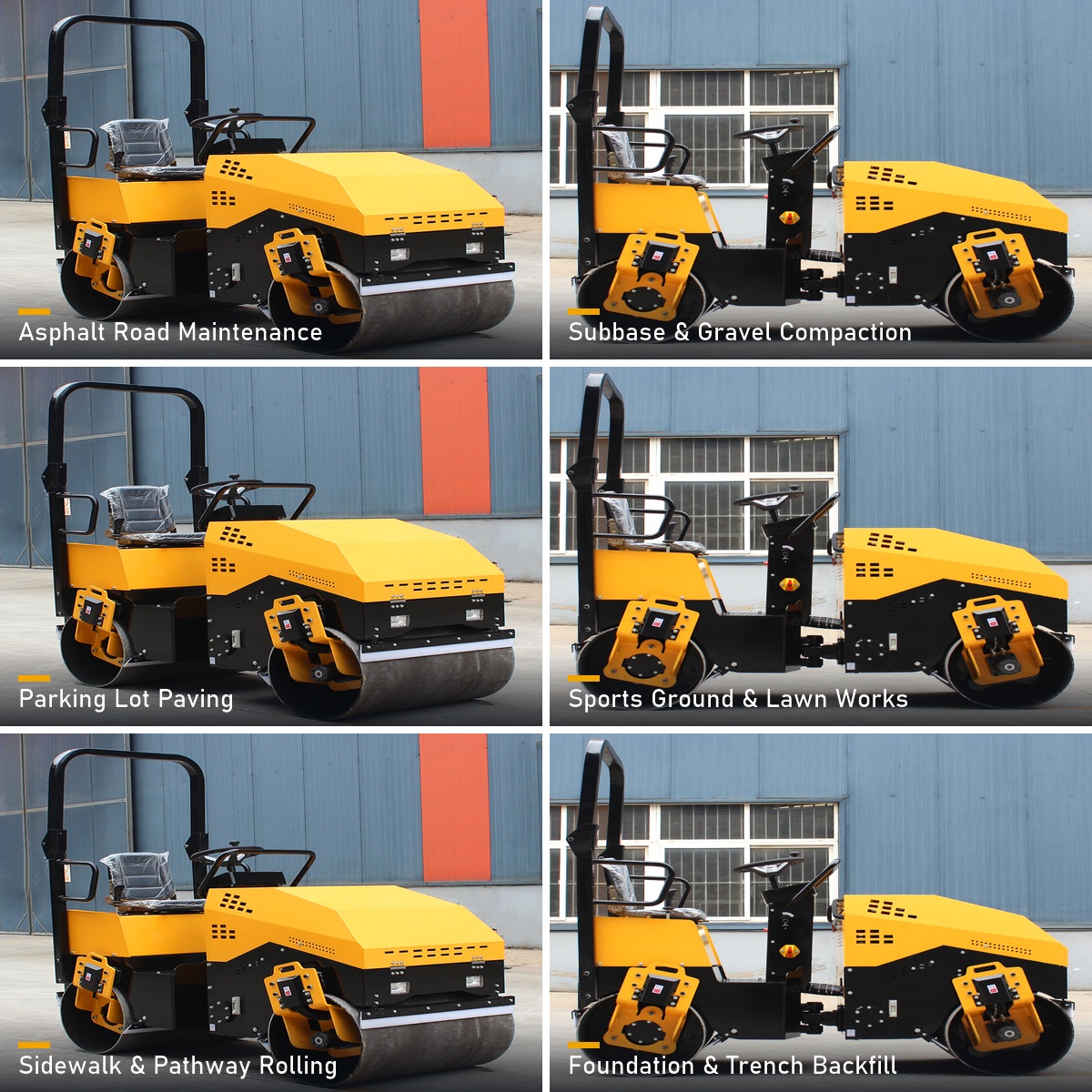

Applications

Asphalt compaction — base, binder and wearing course on roads, highways and car parks.

Soil compaction — granular base and sub-base for pavements, slabs and hardstandings.

Highway construction — mainline, shoulder and widening work.

Road maintenance — patching, resurfacing and shoulder repair.

Parking lot construction — car parks, yards and access lanes.

Foundation work — backfill and base layers around buildings.

Product Details

Drums and water system. Two 900 mm × 560 mm steel drums with scraper bars, fed by a spray bar from the 70 L water tank.

Vibration. Hydraulic vibration: 35 kN force at 70 Hz, 0.5 mm nominal amplitude.

Driveline. Water-cooled Changchai L12 diesel, 8.8 kW, ≤250 g/kw.h, hydrostatic transmission, 0-6 km/h, 35% gradeability.

Dimensions. 2270 × 1010 × 1650 mm overall, 1500 kg working weight.

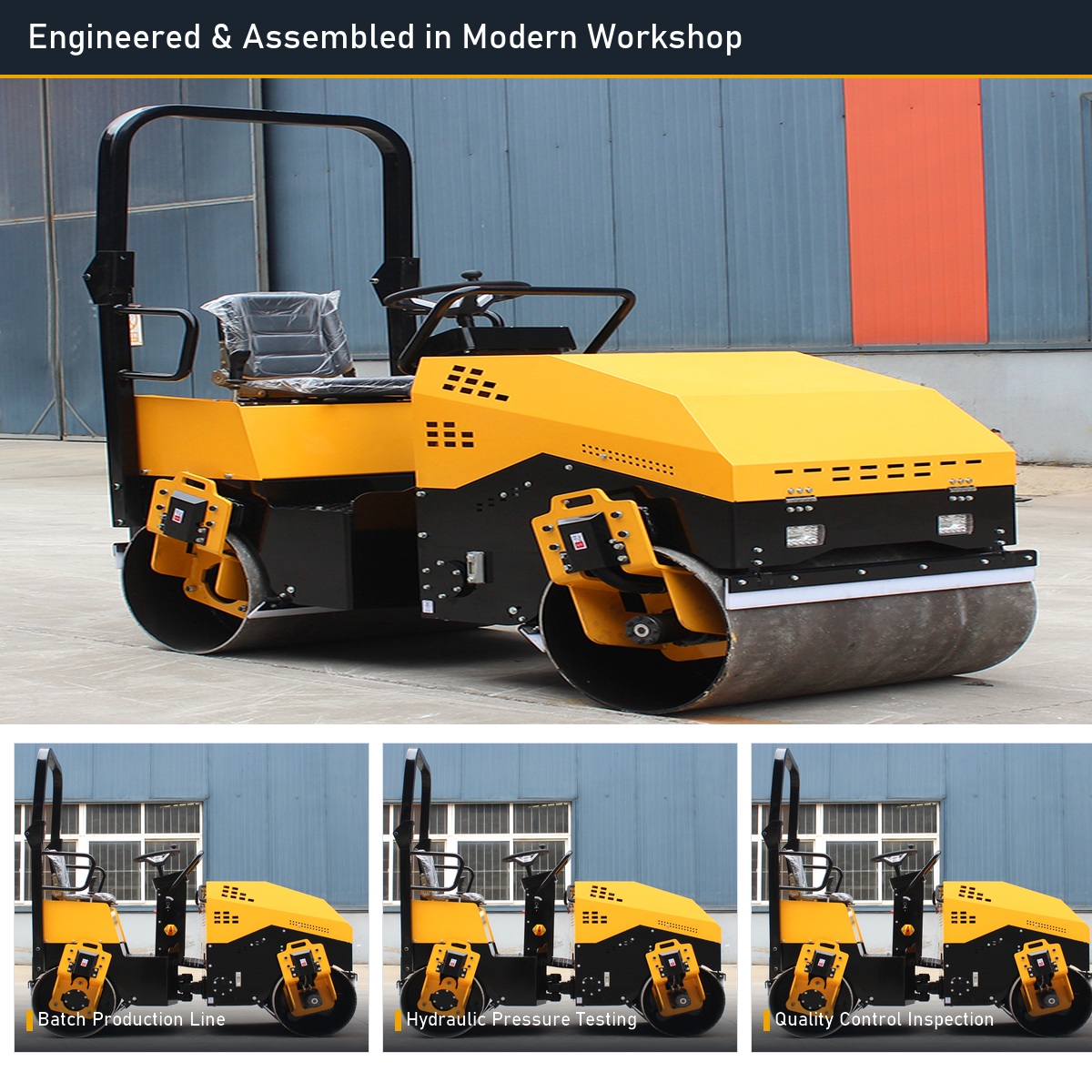

Why Choose Luhongda

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the diesel engine.

Buyer Questions

What is the LHD-YL900 used for?

It is a 900 mm ride on tandem vibratory roller for asphalt and granular compaction — roads, highways, car parks, road maintenance and foundation backfill.

Why choose the 900 mm model over an 800 mm roller?

The 900 mm drums cover more area per pass at the same 1500 kg working weight, and vibration force is 35 kN rather than 30 kN, so thicker lifts can be compacted in the same number of passes.

What are the main specifications?

Drum width 900 mm × 2, drum diameter 560 mm × 2, working weight 1500 kg, vibration force 35 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 70 L, gradeability 35%, walking speed 0-6 km/h, Changchai L12 8.8 kW water-cooled diesel. Full list in the table above.

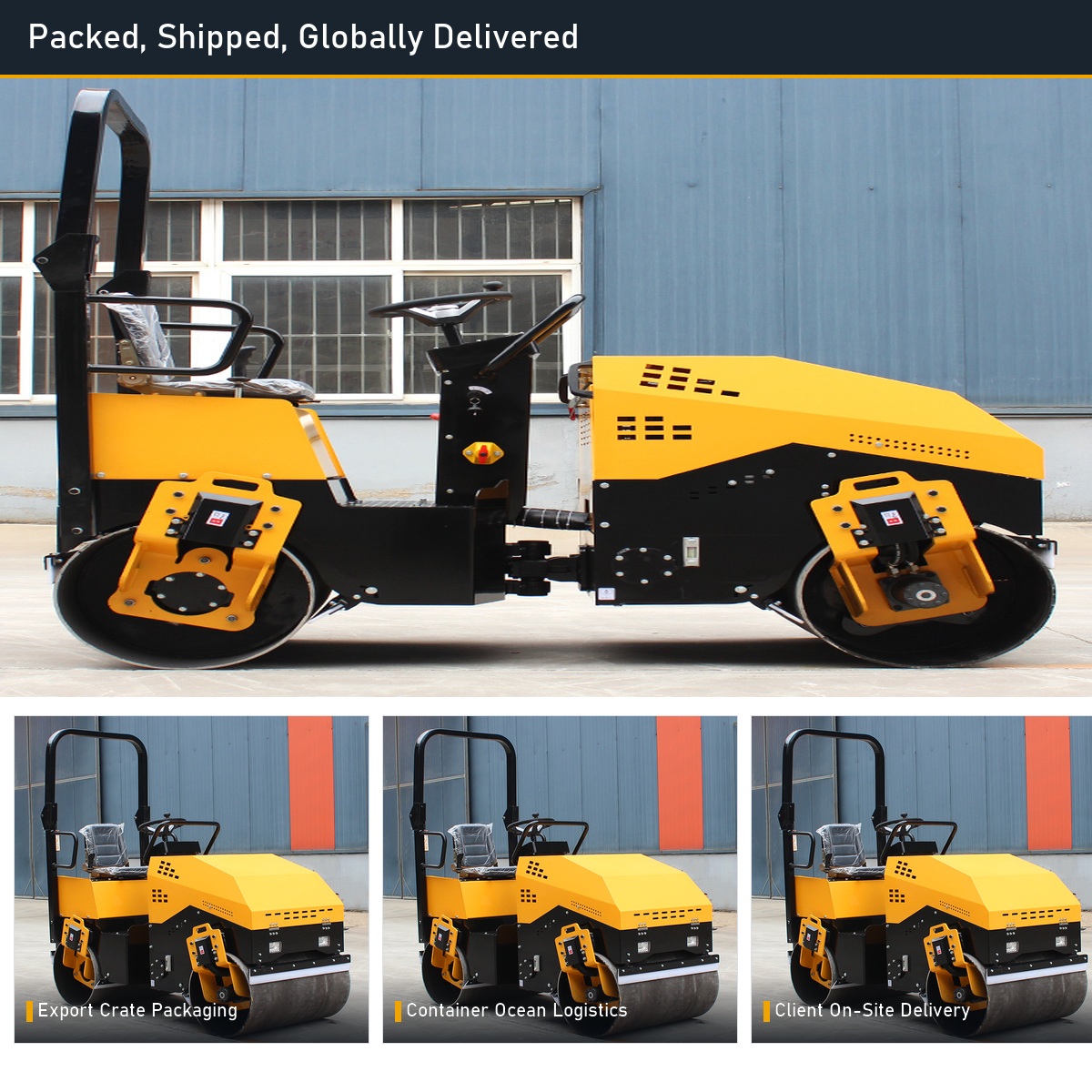

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL900 tandem roller pricing and shipment.
