Product Overview

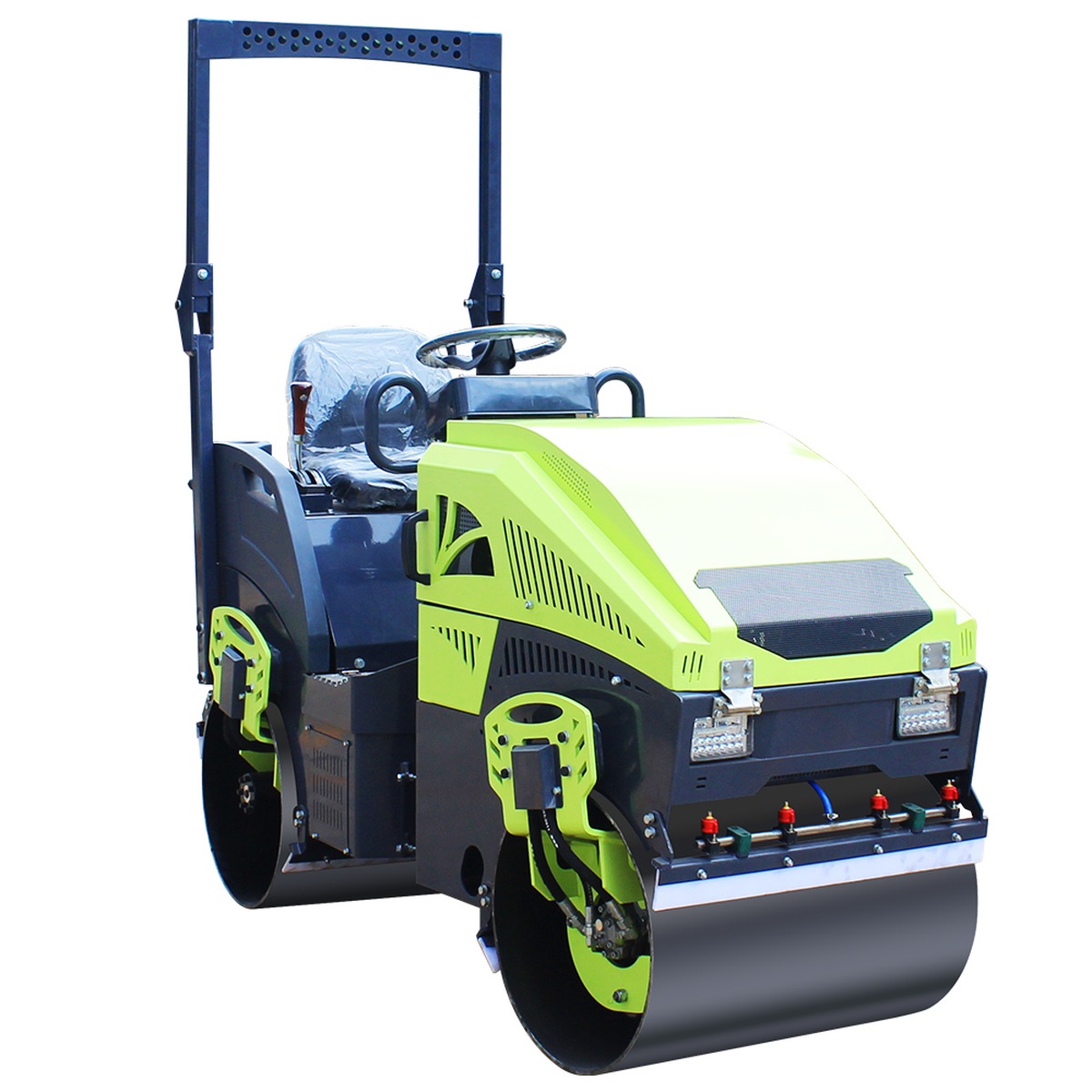

The LHD-YL800Plus is an 800 mm ride on tandem road roller from Shandong Luhongda Machinery Co., Ltd. Two 800 mm wide, 560 mm diameter steel drums carry a 1500 kg working weight on a 60N/75N/cm static line load.

Engine is a Kubota Z482 rated 8.2 kW / 11 HP at ≤300 g/kw.h, driving 30 kN of vibration force at 70 Hz with 0.5 mm nominal amplitude through a Danfoss hydraulic vibration motor.

Hydrostatic transmission gives 0-6 km/h and 30% gradeability, a 55 L water tank feeds the drum spray bar, and a 5.5 L fuel tank keeps the machine working through a normal shift.

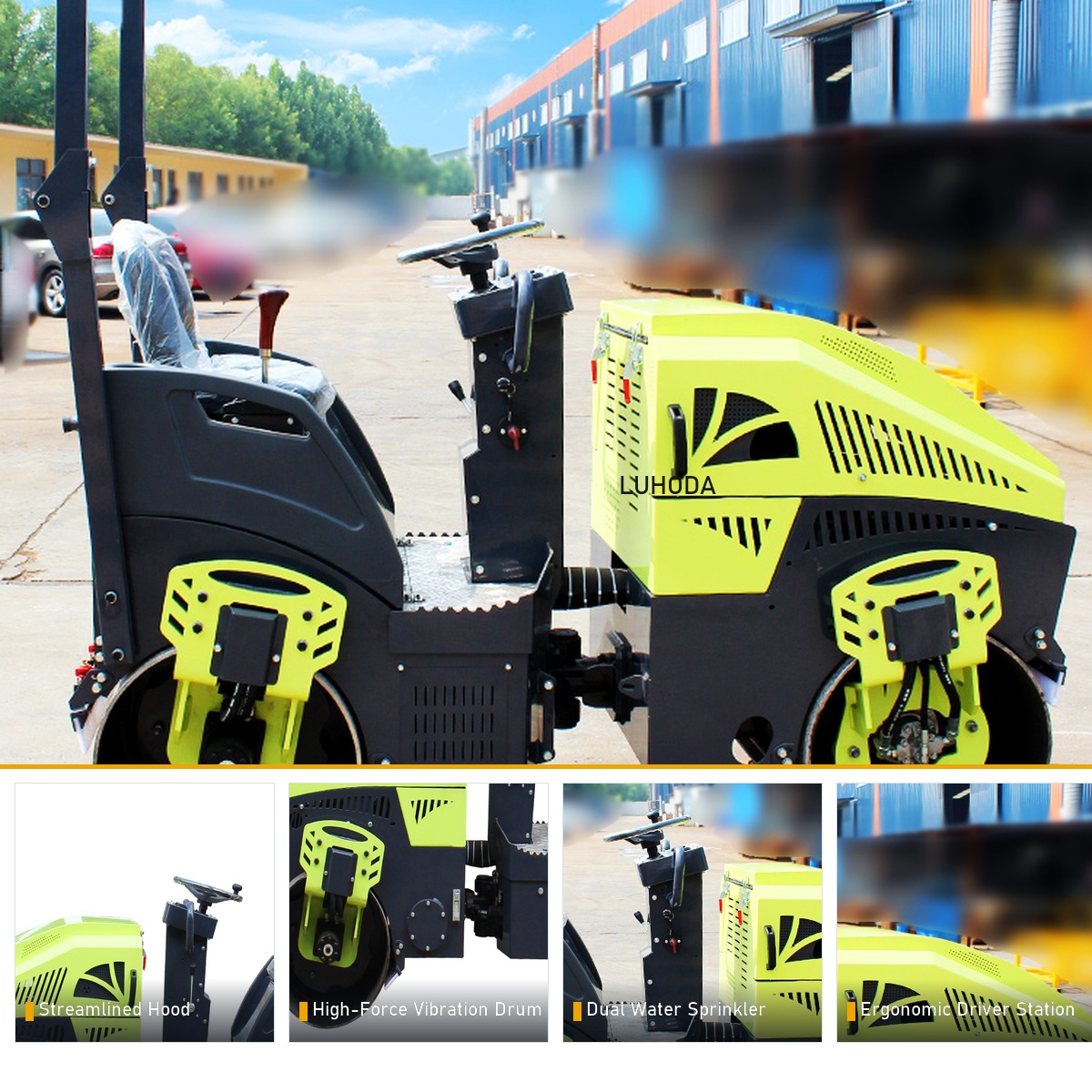

Key Features

Kubota Z482 Diesel

The Z482 is a Kubota industrial diesel rated 8.2 kW / 11 HP. Kubota's global parts network is the reason many fleet buyers specify it: service and spares are available in most markets without waiting on a shipment from China.

560 mm Drums on an 800 mm Working Width

Drums are 560 mm in diameter — larger than the 530 mm used on the standard 800 mm model — which gives a gentler approach angle and a smoother finish on the wearing course.

30 kN at 70 Hz, Danfoss Vibration Motor

Hydraulic vibration through a Danfoss motor produces 30 kN at 70 Hz with 0.5 mm nominal amplitude, with output held steady across long shifts.

Compact 2400 × 1150 × 1500 mm Package

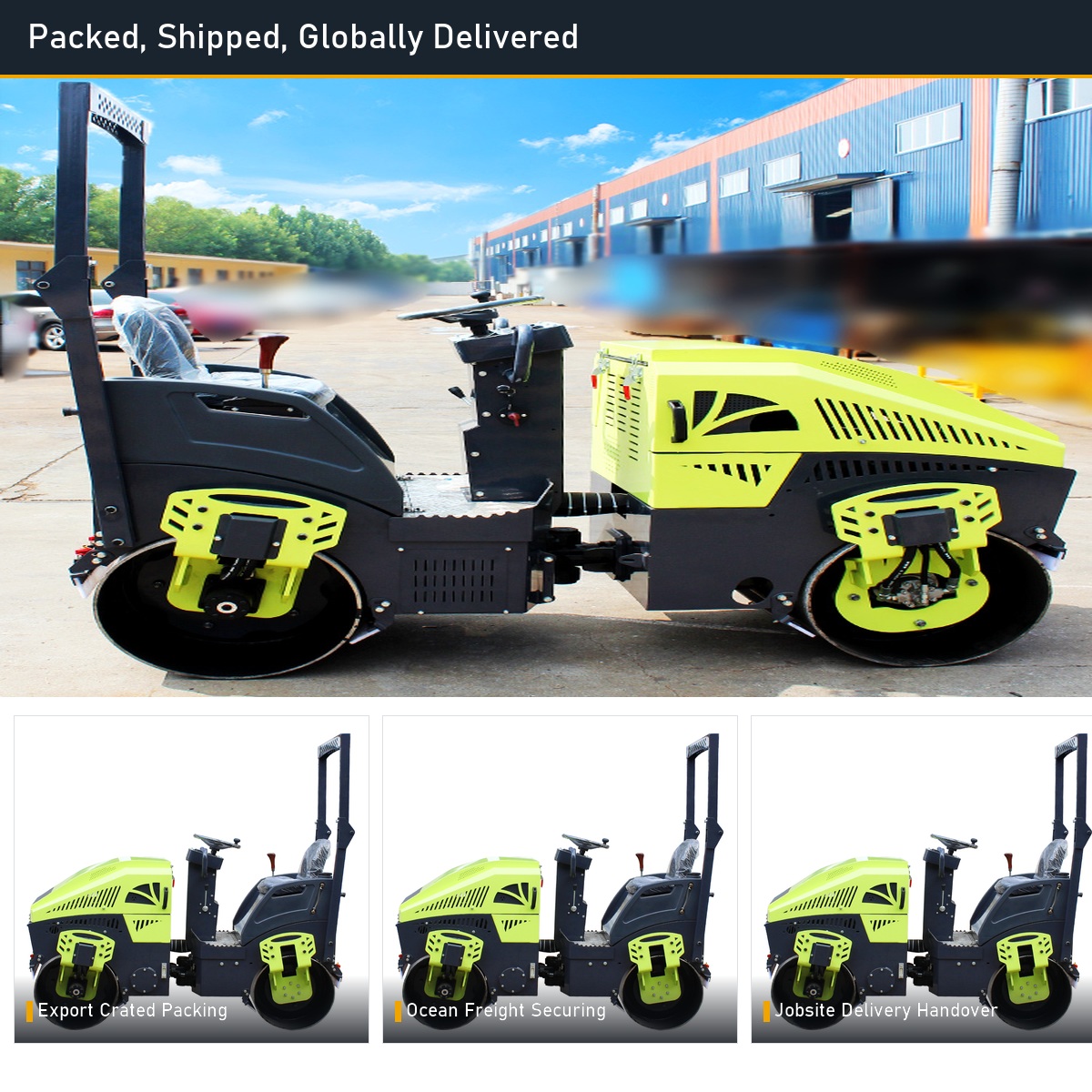

The machine ships in a 2400 × 1150 × 1500 mm package, so several units fit in a 40 ft container without special handling.

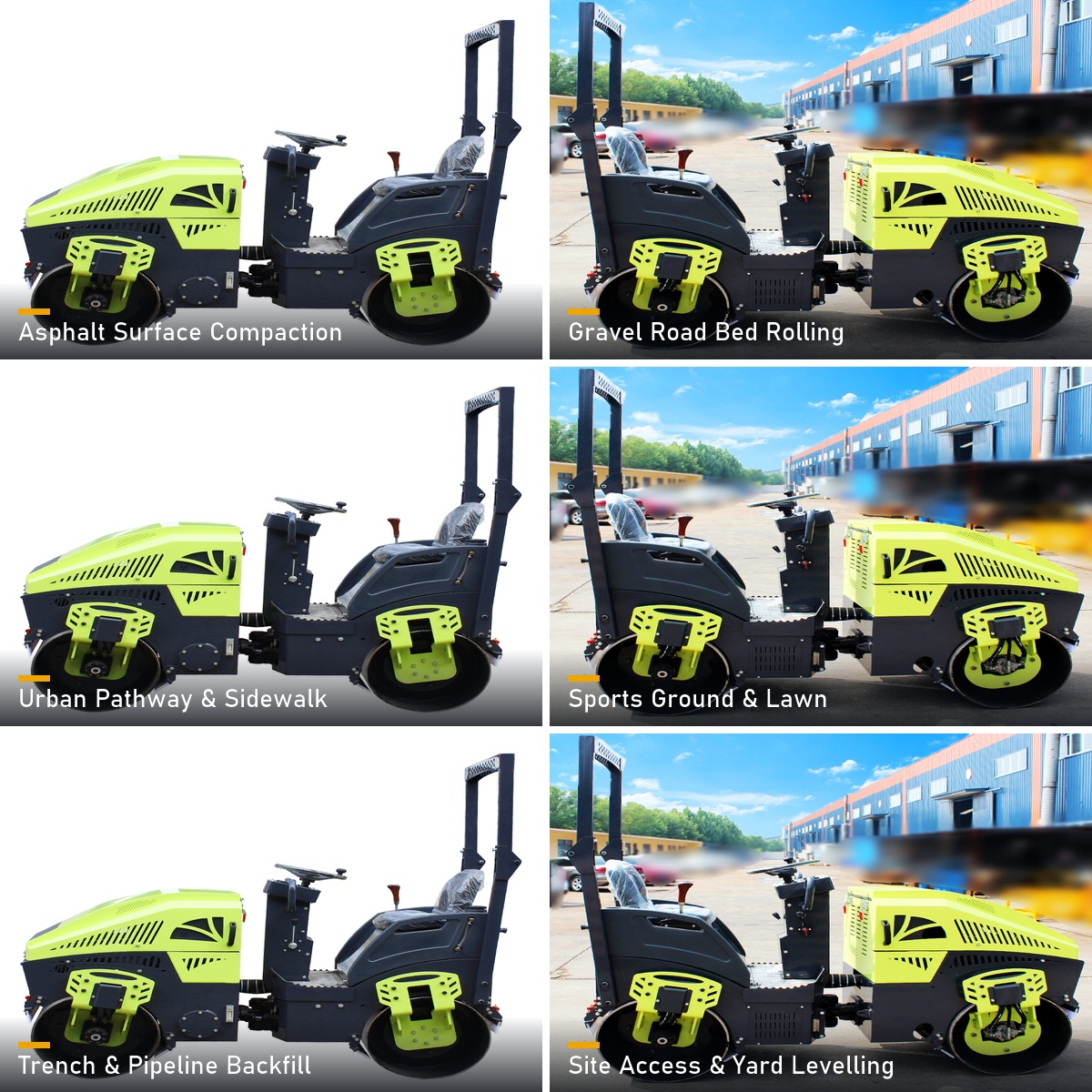

Applications

Asphalt compaction — base, binder and wearing course on roads, driveways and forecourts.

Soil compaction — granular base and sub-base for pavements and slabs.

Highway and road construction — new build, widening and resurfacing work.

Parking lot construction — car parks, yards and access lanes.

Foundation work — backfill and base layers around structures.

Rental fleets — a Kubota-powered 1500 kg roller with globally available service.

Product Details

Drums and water system. Two 800 mm × 560 mm steel drums with scraper bars, fed by a spray bar from the 55 L water tank.

Vibration. Danfoss hydraulic vibration motor: 30 kN force at 70 Hz, 0.5 mm nominal amplitude.

Driveline. Kubota Z482 diesel, 8.2 kW / 11 HP, ≤300 g/kw.h, 5.5 L fuel tank, hydrostatic transmission, 0-6 km/h, 30% gradeability.

Shipping. Package size 2400 × 1150 × 1500 mm; working weight 1500 kg.

Why Choose Luhongda

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the Kubota engine.

Buyer Questions

What is the LHD-YL800Plus used for?

It is an 800 mm ride on tandem roller for asphalt and granular base compaction — roads, car parks, driveways, forecourts and foundation backfill.

What engine does it use?

A Kubota Z482 industrial diesel rated 8.2 kW / 11 HP, with a 5.5 L fuel tank and fuel consumption of ≤300 g/kw.h.

What are the main specifications?

Drum width 800 mm × 2, drum diameter 560 mm × 2, working weight 1500 kg, vibration force 30 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 55 L, gradeability 30%, walking speed 0-6 km/h. Full list in the table above.

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL800Plus tandem roller pricing and shipment.

Technical Specifications
