Product Overview

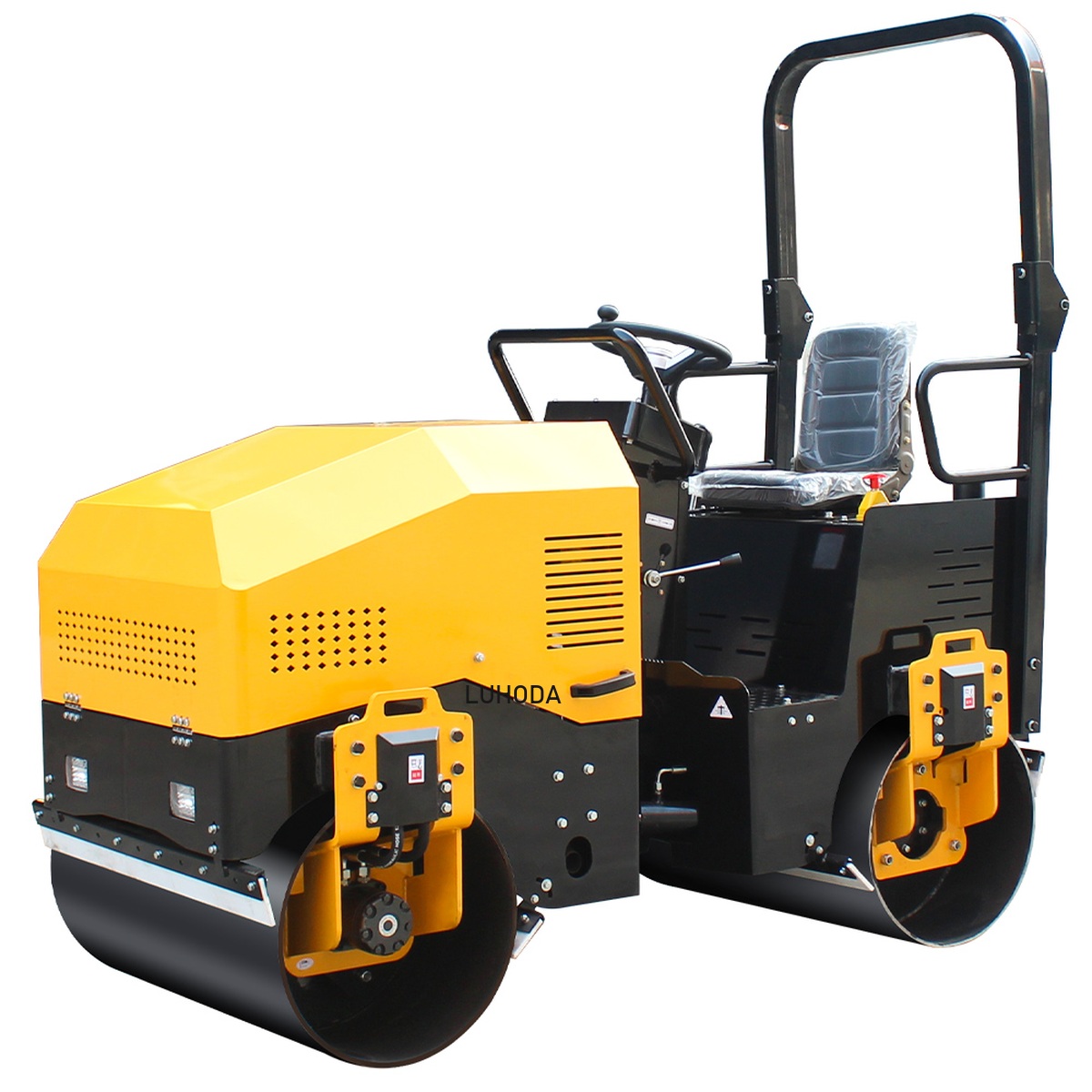

The LHD-YL1000 is a 1000 mm ride on tandem vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Two 1000 mm wide, 560 mm diameter steel drums carry a 2000 kg working weight on an 80N/85N/cm static line load.

A water-cooled Changchai H16 diesel delivers 11.5 kW at ≤245 g/kw.h, driving 40 kN of vibration force at 70 Hz with 0.5 mm nominal amplitude. Drive is hydrostatic and vibration is hydraulic.

A 70 L water tank feeds the drum spray bar, 0-6 km/h working speed and 35% gradeability handle ramps, and the 2350 × 1100 × 1620 mm footprint suits both road work and yard compaction.

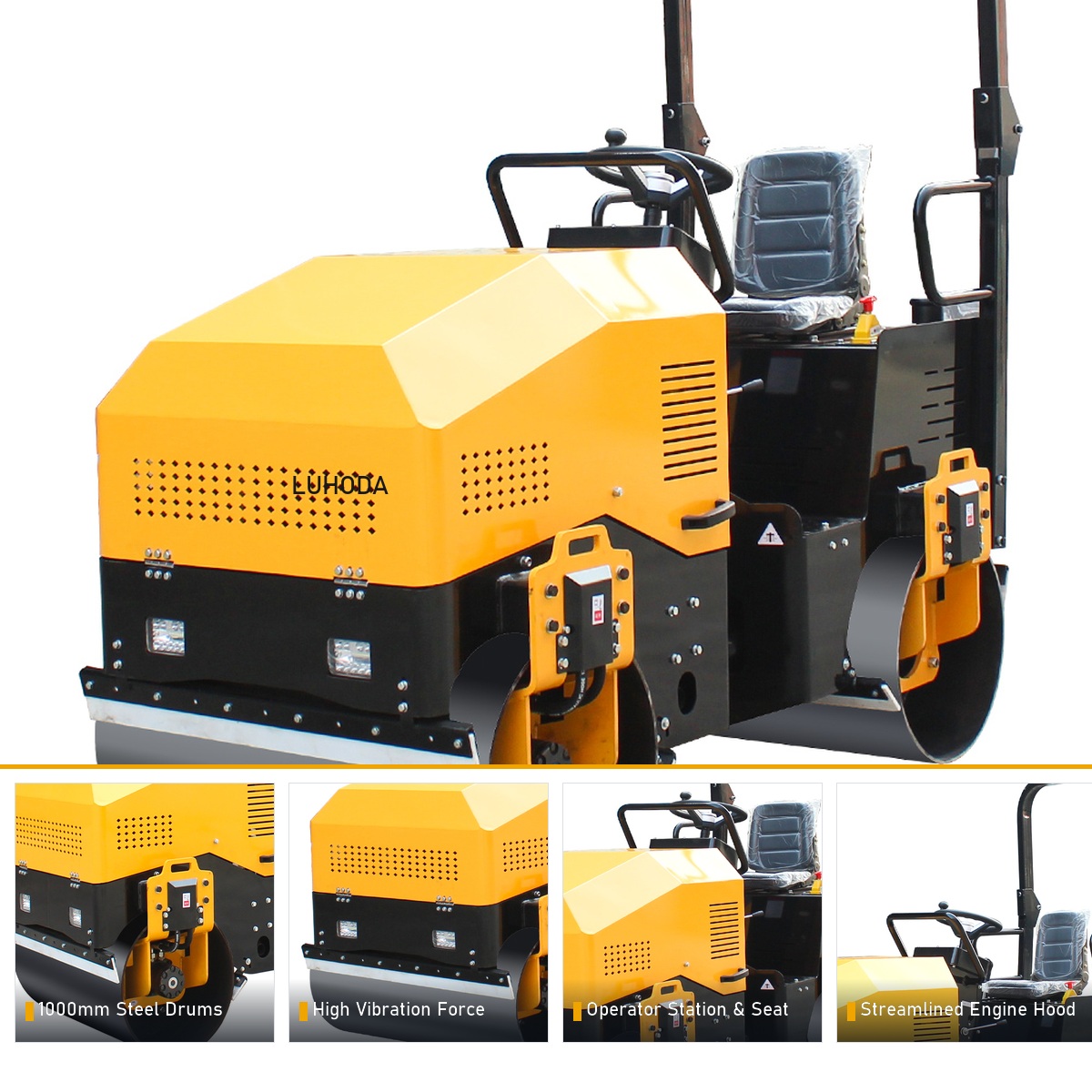

Key Features

1000 mm Drums on a 2000 kg Working Weight

Two 1000 mm wide drums at 560 mm diameter cover a full metre per pass. With an 80N/85N/cm static line load, the machine reaches target density on granular base without the passes an 800 mm roller would need.

40 kN Vibration Force at 70 Hz

Vibration runs at 70 Hz with 0.5 mm nominal amplitude and 40 kN of force. That is enough for thicker lifts in base course and for re-compaction work on existing pavements.

Hydrostatic Transmission, 0-6 km/h

Hydrostatic drive gives stepless travel control at working speed, which keeps the drum from scuffing on joints, edges and thin lifts.

Changchai H16 Water-Cooled Diesel

The H16 is a water-cooled four-stroke diesel rated 11.5 kW at ≤245 g/kw.h, with a 5.5 L fuel tank. Water cooling holds power steady through long shifts in hot climates.

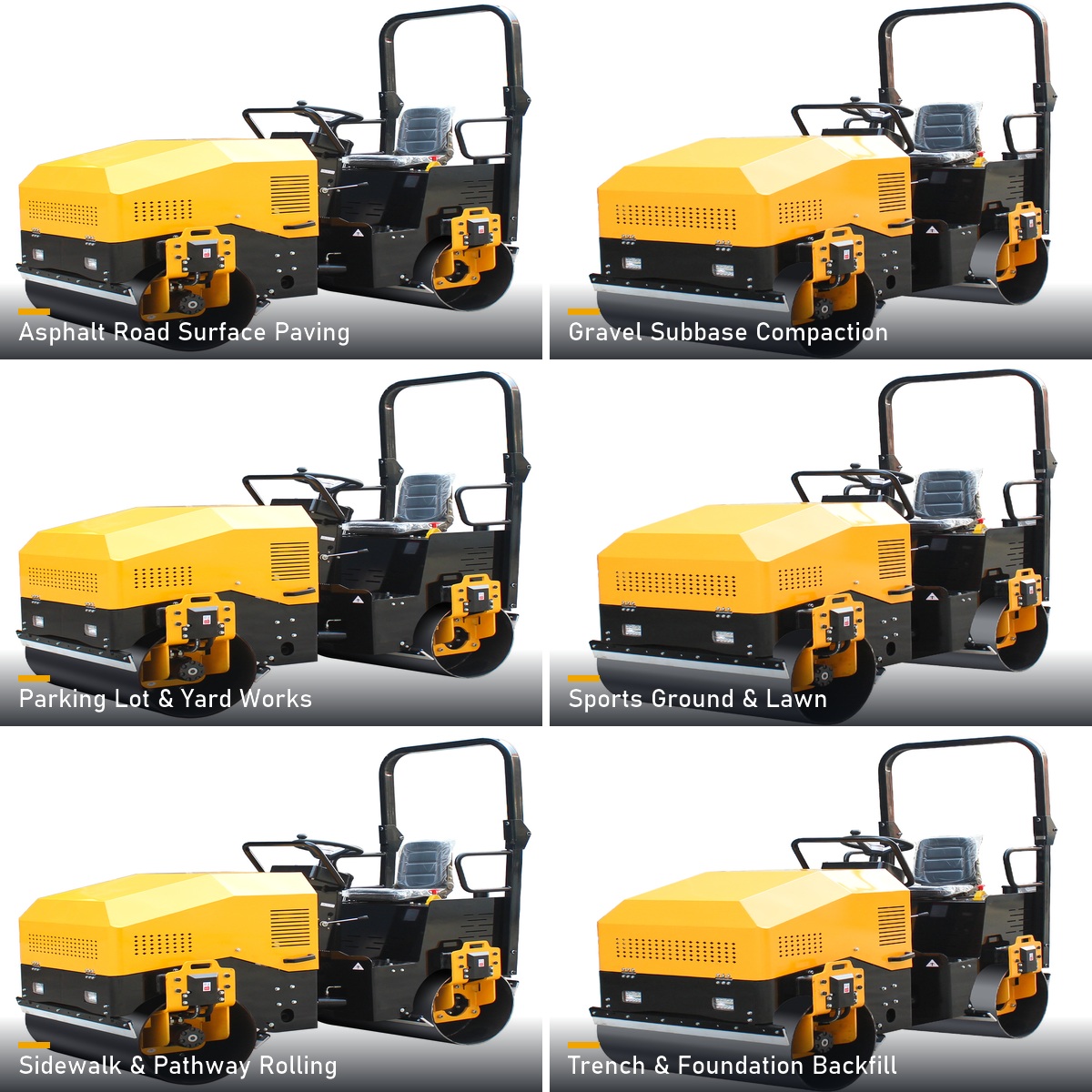

Applications

Asphalt compaction — base, binder and wearing course on roads, highways and car parks.

Soil compaction — granular base and sub-base for pavements, slabs and hardstandings.

Highway construction — mainline, shoulder and widening work.

Parking lot construction — car parks, forecourts and access lanes.

Foundation work — backfill and base layers around buildings.

Road maintenance — patching, resurfacing and shoulder repair.

Product Details

Drums and water system. Two 1000 mm × 560 mm steel drums with scraper bars, fed by a spray bar from the 70 L water tank.

Vibration. Hydraulic vibration: 40 kN force at 70 Hz, 0.5 mm nominal amplitude.

Driveline. Water-cooled Changchai H16 diesel, 11.5 kW, ≤245 g/kw.h, 5.5 L fuel tank, hydrostatic transmission, 0-6 km/h, 35% gradeability.

Dimensions. 2350 × 1100 × 1620 mm overall, 2000 kg working weight.

Why Choose Luhongda

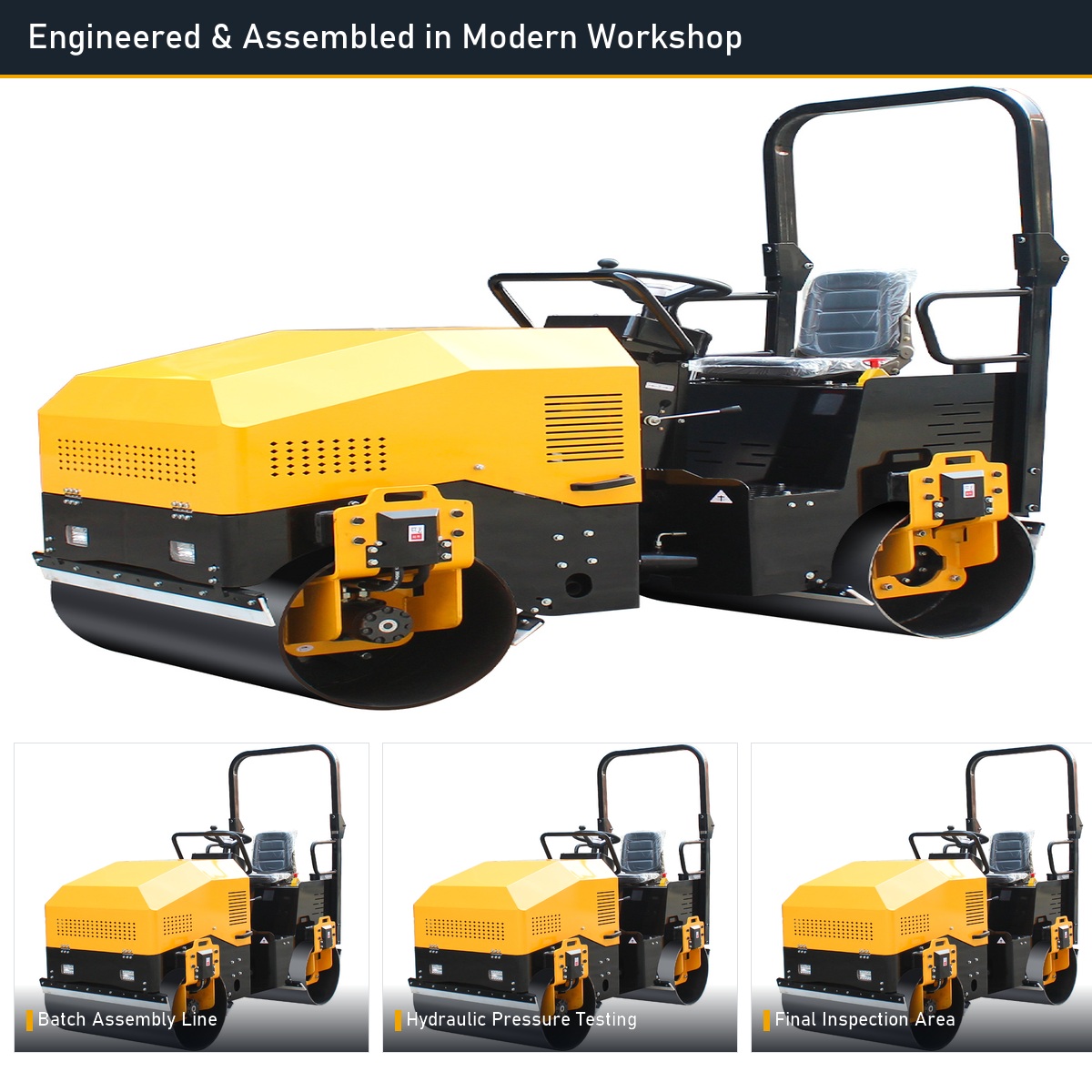

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the diesel engine.

Buyer Questions

What is the LHD-YL1000 used for?

It is a 1000 mm ride on tandem vibratory roller for asphalt and granular compaction — highways, roads, car parks, foundation backfill and road maintenance.

What are the main specifications?

Drum width 1000 mm × 2, drum diameter 560 mm × 2, working weight 2000 kg, vibration force 40 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 70 L, gradeability 35%, walking speed 0-6 km/h, Changchai H16 11.5 kW water-cooled diesel. Full list in the table above.

How does it compare with an 800 mm roller?

The 1000 mm drums cover 25% more width per pass at a 2000 kg working weight rather than 1500 kg, with 40 kN rather than 30 kN of vibration force.

How do I get a quotation?

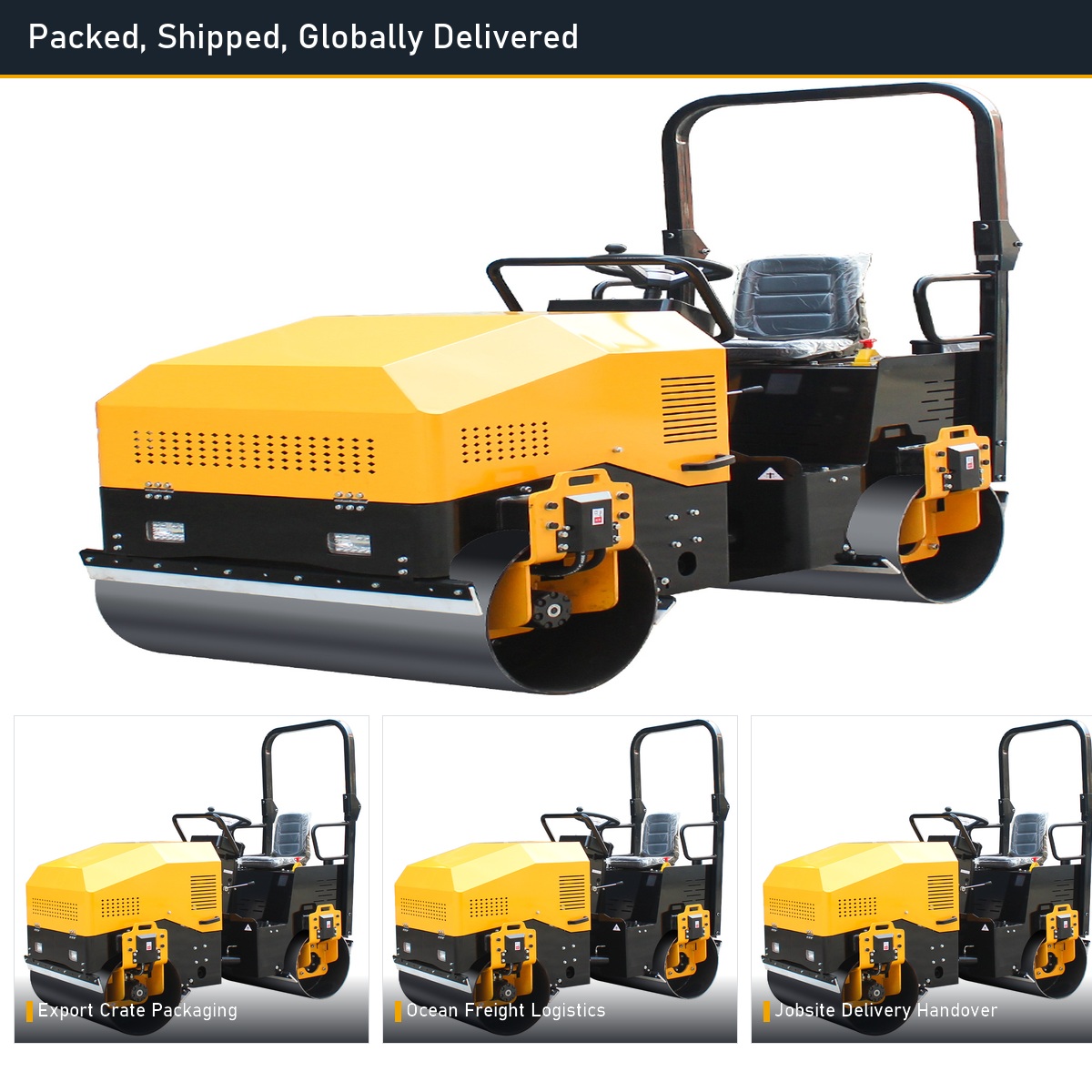

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL1000 tandem roller pricing and shipment.
