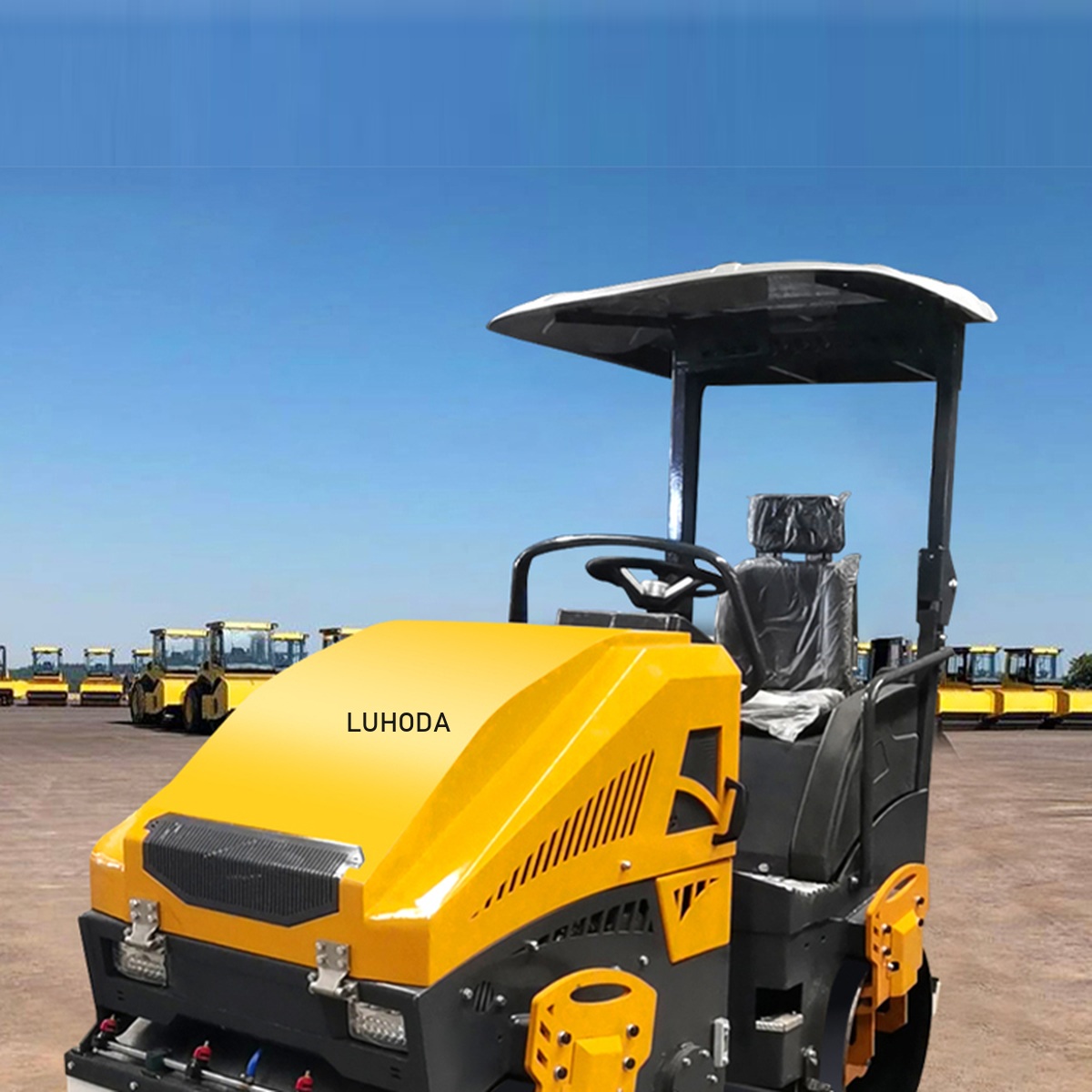

Product Overview

The LHD-YL1000Plus is a 1000 mm ride on tandem road roller from Shandong Luhongda Machinery Co., Ltd. Two 1000 mm wide, 630 mm diameter steel drums carry a 2000 kg working weight on an 80N/85N/cm static line load.

A Kubota D1105 diesel delivers 18.2 kW / 24.5 HP at ≤245 g/kw.h, driving 40 kN of vibration force at 70 Hz with 0.5 mm nominal amplitude. Drive is hydrostatic and vibration is hydraulic.

The machine carries a canopy over the operator position, and a 70 L water tank feeds the drum spray bar through asphalt work.

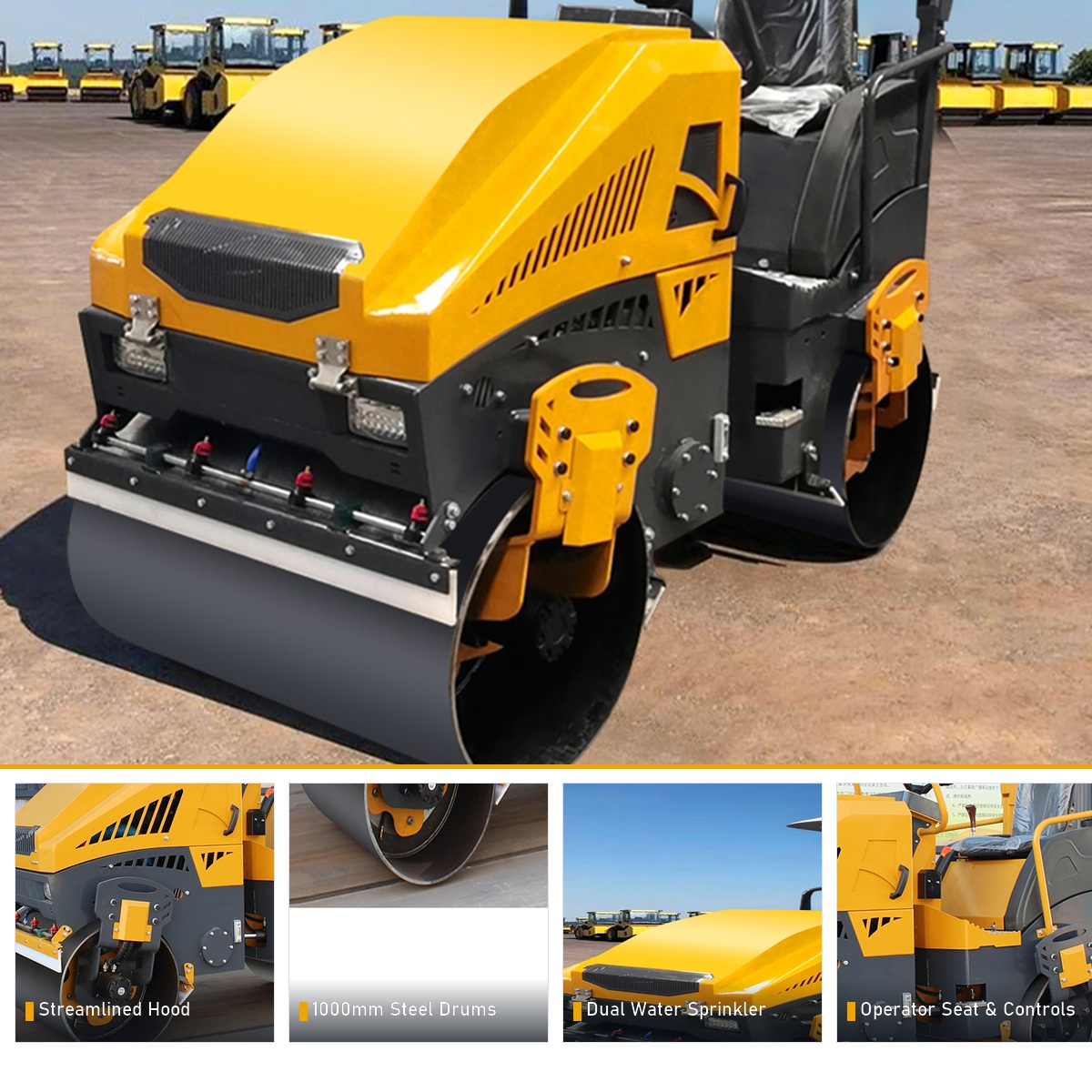

Key Features

630 mm Drums — the Largest in the 1000 mm Series

Drums measure 630 mm in diameter rather than 560 mm. The larger diameter gives a gentler approach angle, a smoother finish on the wearing course and better ride over uneven base.

18.2 kW / 24.5 HP Kubota D1105

The D1105 is Kubota's three-cylinder industrial diesel rated 18.2 kW / 24.5 HP — more than 50% up on the 11.5 kW unit in the standard 1000 mm model. Kubota's global parts network keeps service available in most markets.

Canopy Over the Operator Position

A canopy shades the operator through long shifts, which matters for output in hot climates where a bare roll bar leaves the operator exposed.

40 kN at 70 Hz with 70 L Water Tank

Vibration runs at 70 Hz with 0.5 mm nominal amplitude and 40 kN of force, while the 70 L tank gives a long working window between refills on asphalt.

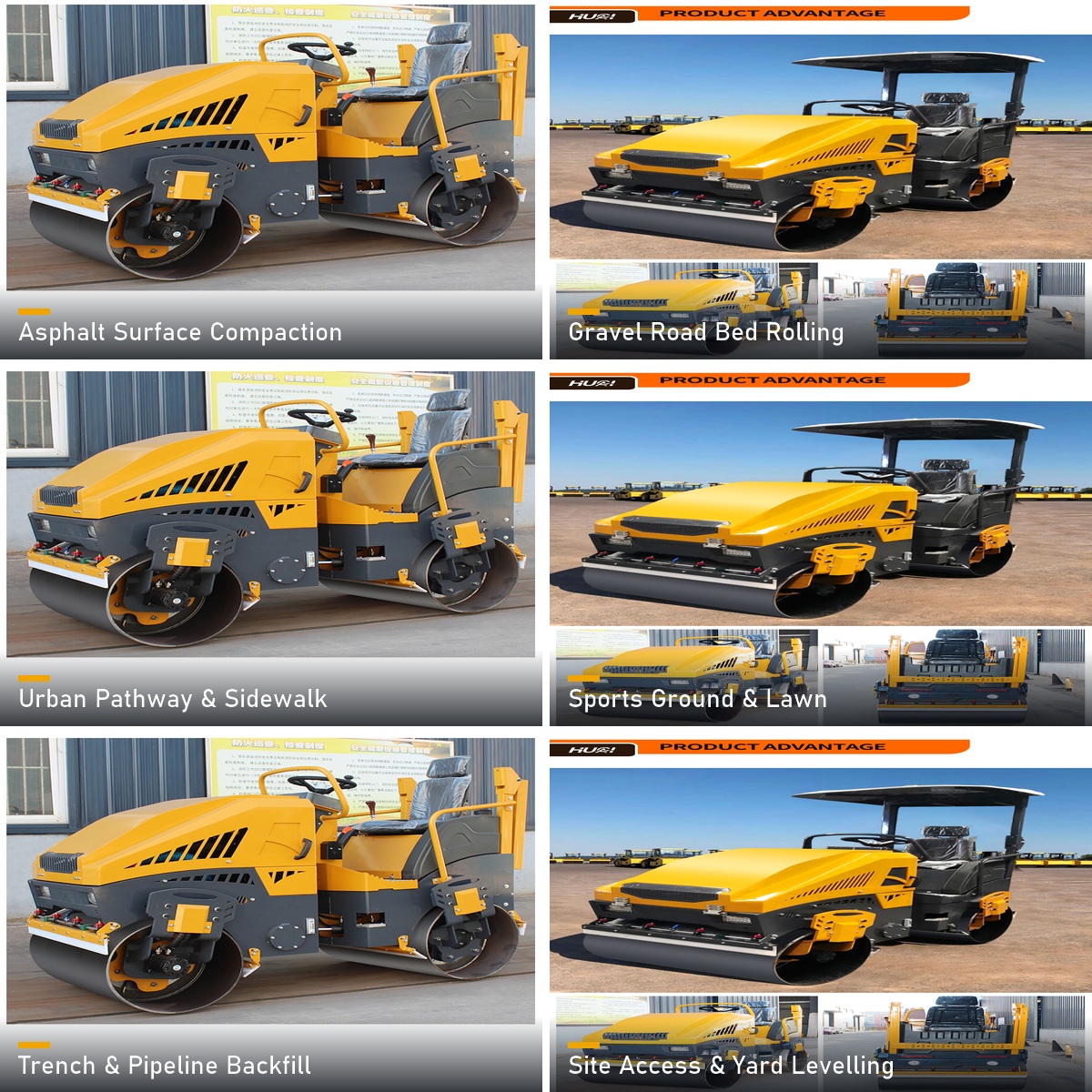

Applications

Asphalt compaction — base, binder and wearing course on roads, highways and car parks.

Soil compaction — granular base and sub-base for pavements, slabs and hardstandings.

Highway construction — mainline, shoulder and widening work.

Parking lot construction — car parks, forecourts and access lanes.

Foundation work — backfill and base layers around buildings.

Road maintenance — patching, resurfacing and shoulder repair.

Product Details

Drums and water system. Two 1000 mm × 630 mm steel drums with scraper bars, fed by a spray bar from the 70 L water tank.

Vibration. Hydraulic vibration: 40 kN force at 70 Hz, 0.5 mm nominal amplitude.

Driveline. Kubota D1105 diesel, 18.2 kW / 24.5 HP, ≤245 g/kw.h, 5.5 L fuel tank, hydrostatic transmission, 0-6 km/h, 35% gradeability.

Operator station and dimensions. Canopy over the seated operator position, with lights and mirrors. Overall 2350 × 1150 × 1750 mm, 2000 kg working weight.

Why Choose Luhongda

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the Kubota engine.

Buyer Questions

What is the LHD-YL1000Plus used for?

It is a 1000 mm ride on tandem roller for asphalt and granular compaction — highways, roads, car parks, foundation backfill and road maintenance, with a canopy for long shifts.

What engine does it use?

A Kubota D1105 industrial diesel rated 18.2 kW / 24.5 HP, with a 5.5 L fuel tank and fuel consumption of ≤245 g/kw.h.

What are the main specifications?

Drum width 1000 mm × 2, drum diameter 630 mm × 2, working weight 2000 kg, vibration force 40 kN at 70 Hz, nominal amplitude 0.5 mm, water tank 70 L, gradeability 35%, walking speed 0-6 km/h. Full list in the table above.

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL1000Plus tandem roller pricing and shipment.
