Product Overview

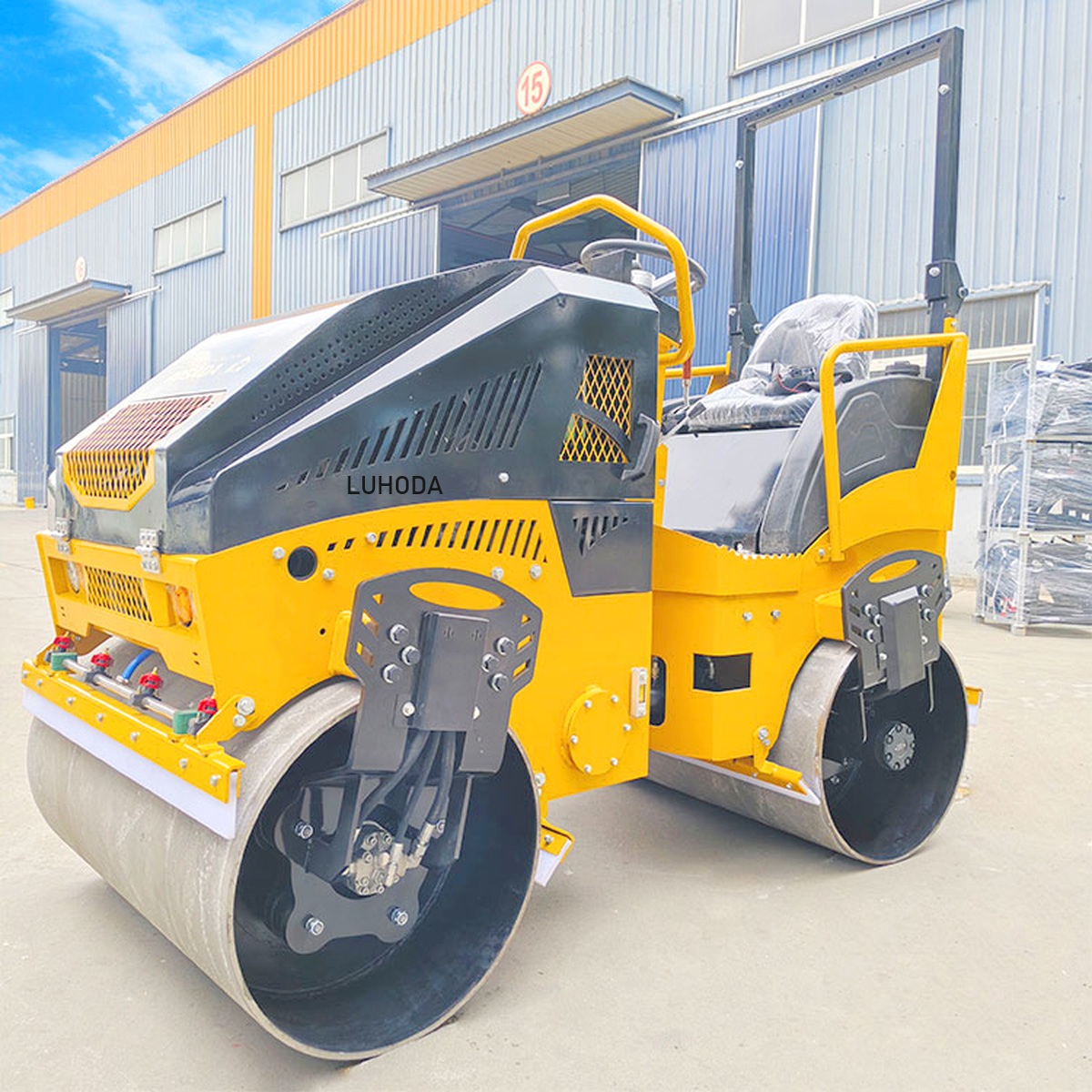

The LHD-YL1100Plus is an 1100 mm ride on tandem vibratory road roller from Shandong Luhongda Machinery Co., Ltd. Two 1100 mm wide, 630 mm diameter steel drums carry a 3000 kg working weight on a 50N/70N/cm static line load.

A Kubota D1105 diesel delivers 18.2 kW / 24.5 HP, driving 50 kN of vibration force at 70 Hz with 0.6 mm nominal amplitude. Drive is full hydraulic double drive and vibration is hydraulic.

A 70 L water tank feeds the drum spray bar, and 0-9 km/h travel with 30% gradeability covers road work and site moves.

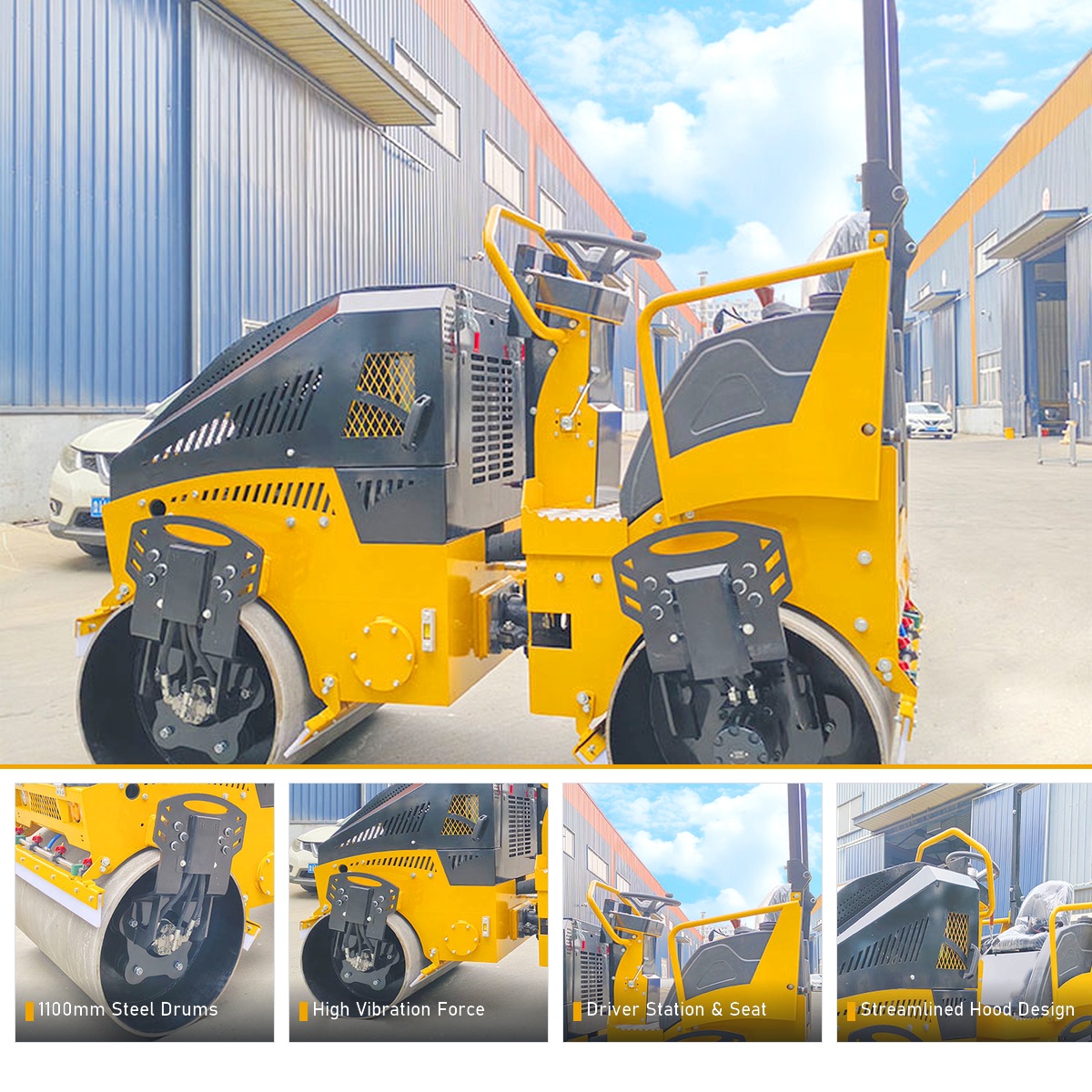

Key Features

3000 kg Working Weight on 1100 mm Drums

Two 1100 mm wide drums at 630 mm diameter with a 50N/70N/cm static line load put the machine in the 3-tonne class, where compaction of thick base and binder layers is done in fewer passes.

50 kN Vibration Force at 70 Hz

The highest vibration force in the 1100 mm range at 70 Hz with 0.6 mm nominal amplitude, giving enough energy for dense asphalt mixes and deep granular lifts.

Full Hydraulic Double Drive

Both drums are hydraulically driven rather than one driven and one trailing. That gives traction on soft or loose base and keeps drive consistent when rolling on gradients.

Kubota D1105 with 0-9 km/h Travel

The 18.2 kW / 24.5 HP D1105 is a three-cylinder industrial diesel with Kubota's global parts network behind it. Travel to 9 km/h lets the machine move between plots without a trailer.

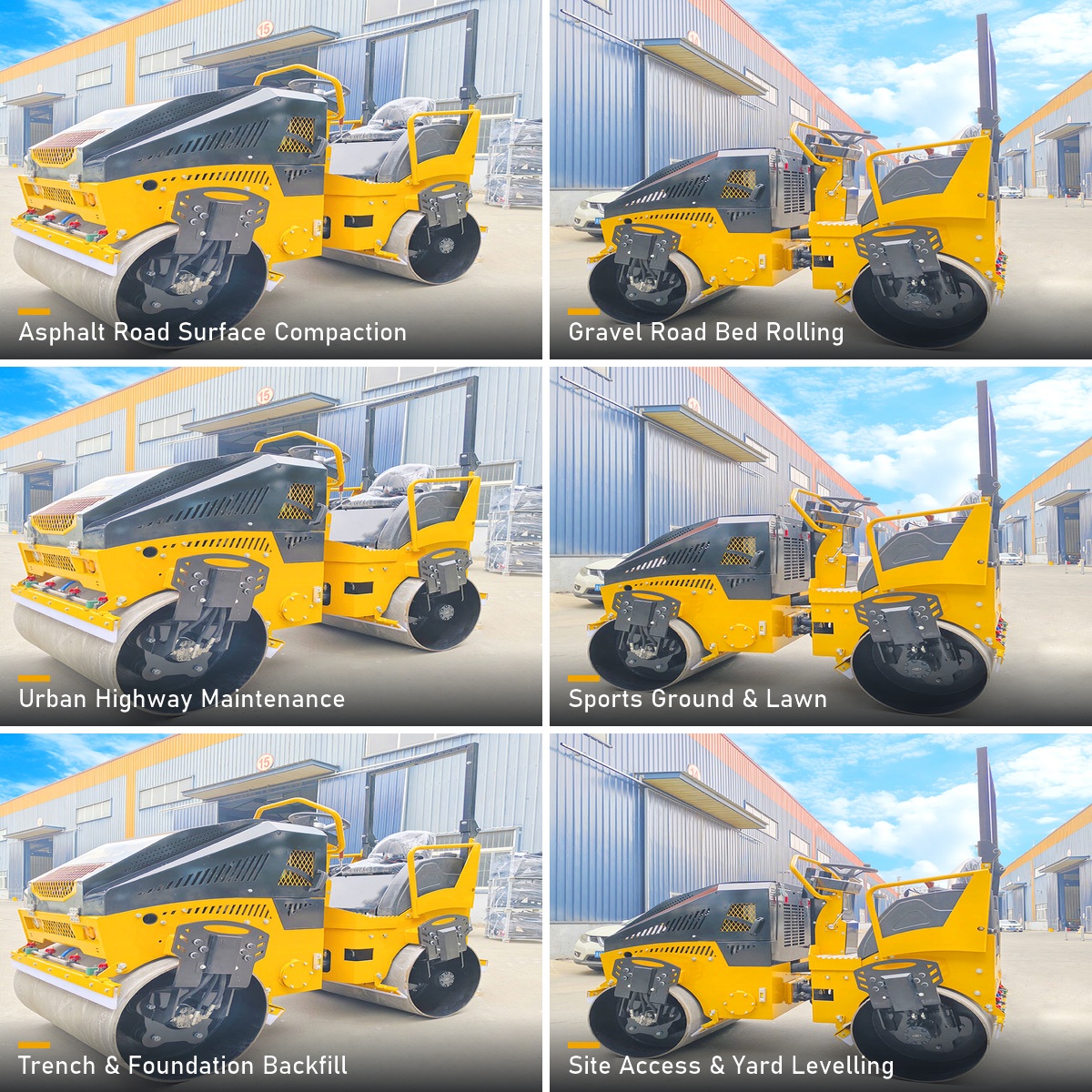

Applications

Asphalt compaction — base, binder and wearing course on roads, highways and car parks.

Highway construction — mainline, shoulder and widening work.

Soil compaction — granular base and sub-base for pavements and hardstandings.

Road construction — new build and resurfacing at carriageway widths.

Parking lot construction — car parks, forecourts and access lanes.

Foundation work — backfill and base layers around buildings.

Product Details

Drums and water system. Two 1100 mm × 630 mm steel drums with scraper bars, fed by a spray bar from the 70 L water tank.

Vibration. Hydraulic vibration: 50 kN force at 70 Hz, 0.6 mm nominal amplitude.

Driveline. Kubota D1105 diesel, 18.2 kW / 24.5 HP, full hydraulic double drive, 0-9 km/h, 30% gradeability, 80 L hydraulic oil.

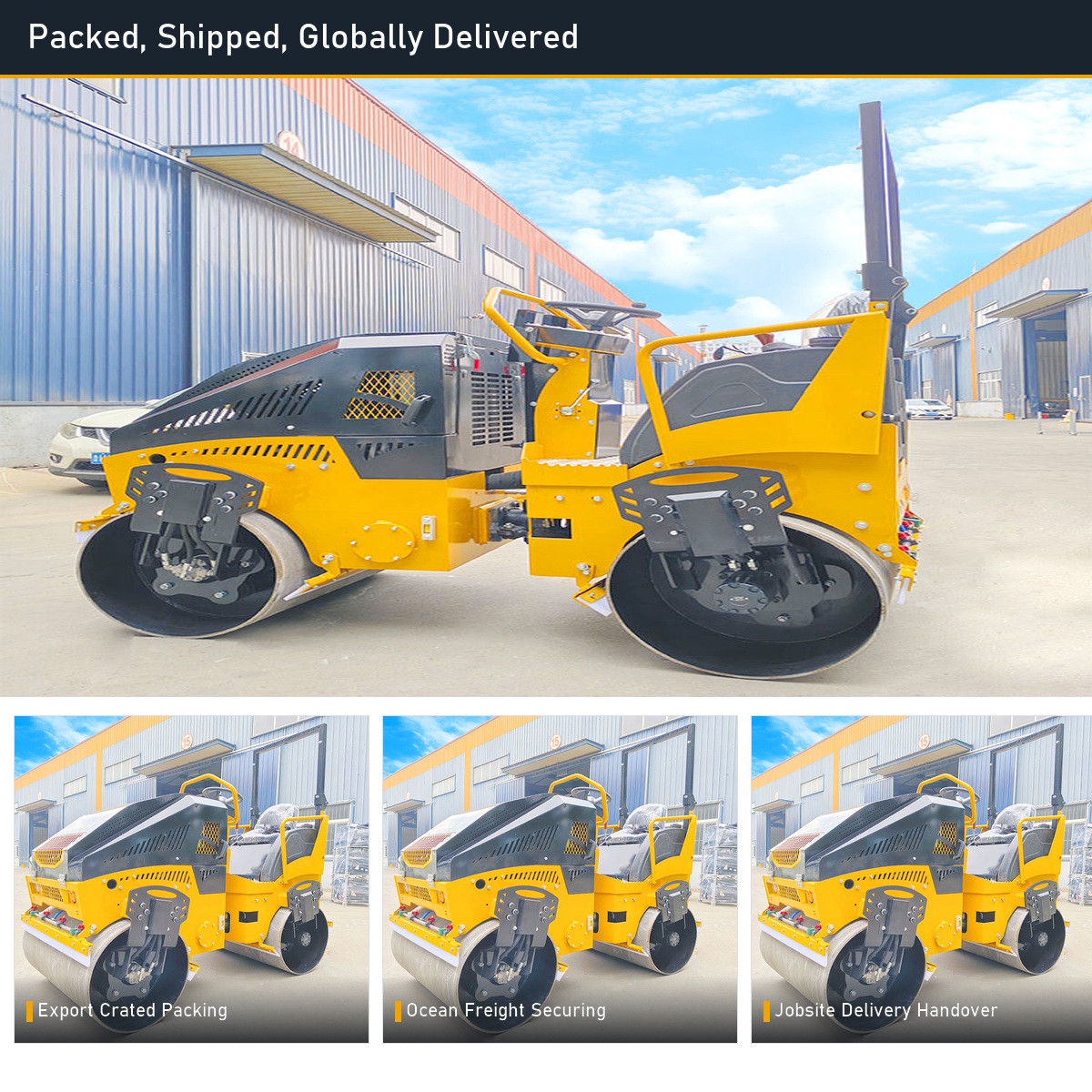

Shipping. Package size 2580 × 1410 × 1930 mm; working weight 3000 kg.

Why Choose Luhongda

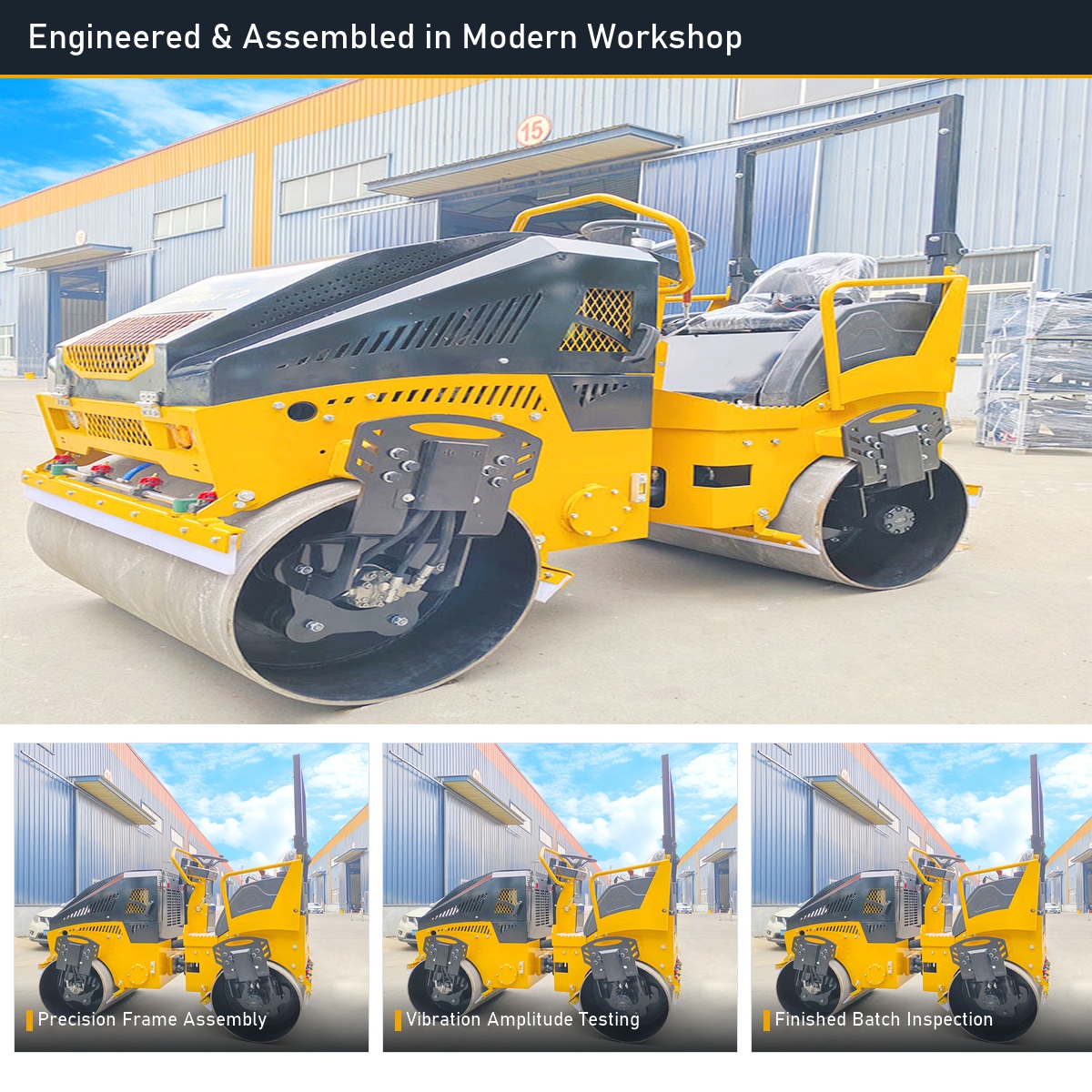

Shandong Luhongda Machinery Co., Ltd. is a construction machinery manufacturer based in Jining, Shandong, China. The company builds and exports road rollers, backhoe loaders, wheel loaders and excavators directly to contractors, rental fleets and dealers.

Buying from the manufacturer means configuration and OEM requirements are discussed at quotation stage, with spare parts support for drums, hydraulics and the Kubota engine.

Buyer Questions

What is the LHD-YL1100Plus used for?

It is an 1100 mm ride on tandem vibratory roller for highway, road and car park compaction, with a 3000 kg working weight and 50 kN of vibration force.

What does full hydraulic double drive mean?

Both drums are hydraulically driven, so the machine keeps traction on soft base and on gradients rather than relying on a single driven drum.

What are the main specifications?

Drum width 1100 mm × 2, drum diameter 630 mm × 2, working weight 3000 kg, vibration force 50 kN at 70 Hz, nominal amplitude 0.6 mm, water tank 70 L, gradeability 30%, walking speed 0-9 km/h, Kubota D1105 18.2 kW / 24.5 HP. Full list in the table above.

How do I get a quotation?

Send your target quantity, destination port and working conditions, and the sales team will confirm pricing, shipment and spare parts.

Request a Quote

Contact us with your working conditions, target quantity and destination port for LHD-YL1100Plus tandem roller pricing and shipment.
